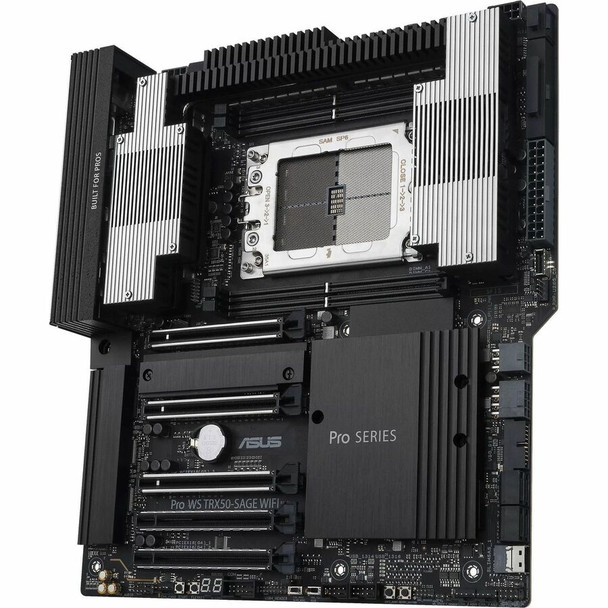

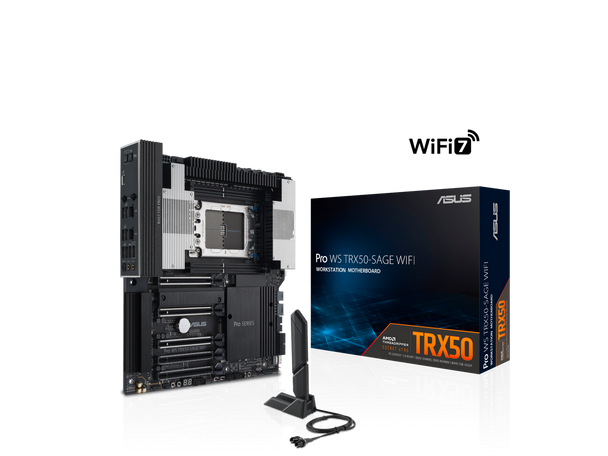

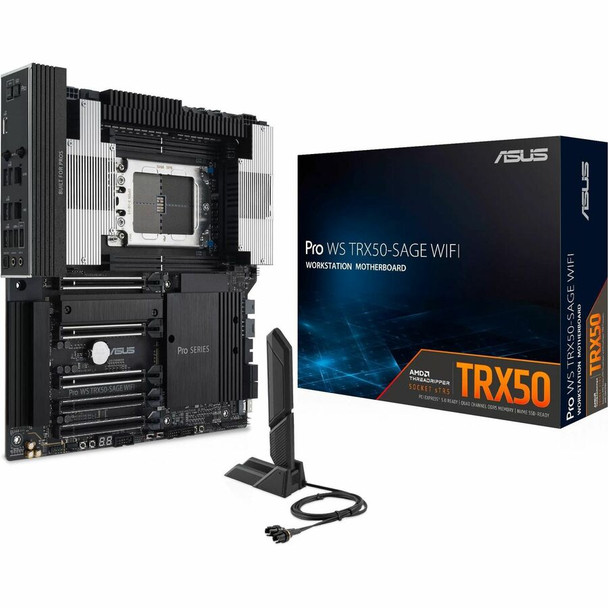

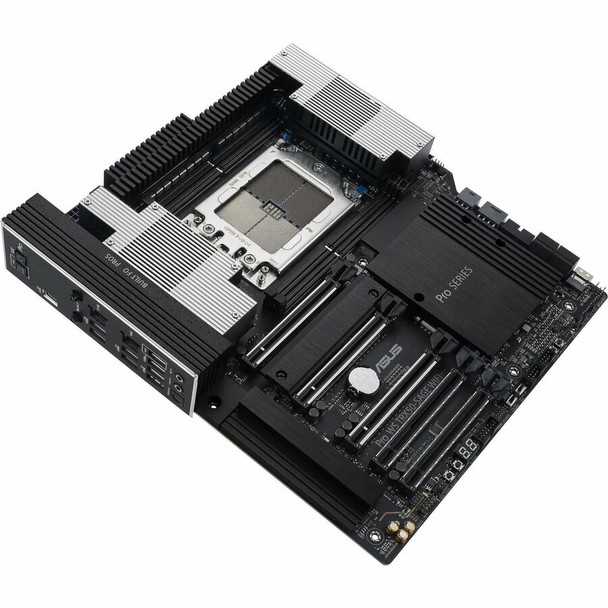

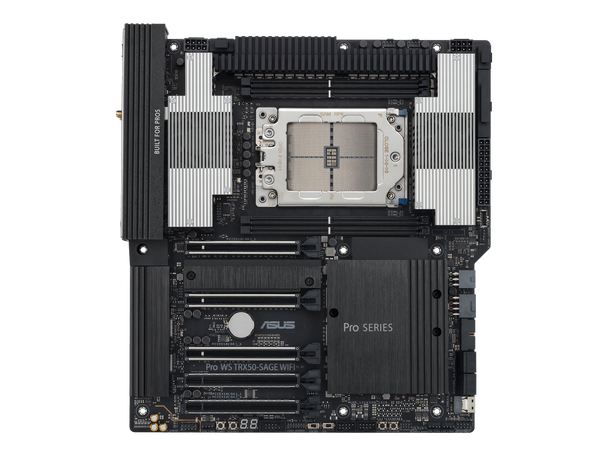

Asus PRO WS TRX50-SAGE WIFI Desktop Motherboard - AMD TRX50 Chipset - Socket sTR5 - SSI CEB (prowstrx50-sagewifi)

This item is brand-new, factory sealed.

AMD TR5 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support


Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.

CPU and memory overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)

Robust power and thermal design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.

Ultrafast connectivity: three PCIe 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C and SlimSAS NVMe support.

Server-grade IPMI remote management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management

Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operationCPU
AMD Socket sTR5 for Ryzen^TM Threadripper^TM PRO 9000 and 7000 WX-Series and Ryzen^TM Threadripper^TM 9000 and 7000 Series Processors ^Note1
Note: Refer to www.asus.com for CPU support list.
Note1: System boot may take longer with Threadripper^TM 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete.Chipset
AMD TRX50 ChipsetMemory
4 x DIMM slots, DDR5, ECC Registered Memory^Note
4 Channel Memory Architecture
Note: Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.Expansion Slots
AMD Ryzen^TM Threadripper^TM PRO 7000 WX-Series and Ryzen^TM Threadripper^TM 7000 Series Processors
2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot(x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot(x4 mode)
Note: Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)Storage
Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen^TM Threadripper^TM PRO 7000 WX-Series and Ryzen^TM Threadripper^TM 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
Note: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.Ethernet
1 x Marvell AQtion 10Gb Ethernet
1 x Intel I226-LM 2.5Gb EthernetWireless and Bluetooth
Wi-Fi 7^Note1
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band^Note2
Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4^Note3
Note1: Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendors website for details.
Note2: Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
Note3: The Bluetooth version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications.USB
Rear USB (Total 9 ports)
1 x USB 20Gbps port (1 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A )
2 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C with up to 27W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 portsAudio
Realtek ALC1220P Surround Sound High Definition Audio CODEC^Note
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Dedicated audio PCB layers
- Unique de-pop circuit
Note: A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
Note: This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 port (2 x Type-A)
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack^TM button
1 x Clear CMOS buttonInternal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
2 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x BMC header
1 x COM Port header
1 x USB4 header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin system panel header
1 x Chassis intrusion header
1 x Thermal Sensor headerSpecial Features
ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack^TM button
- BIOS FlashBack^TM LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design and Business Focused Features
- 24/7 Reliability
- Overcurrent ProtectionSoftware Features
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
- FlexKeyBIOS
256 Mb Flash ROM, UEFI AMI BIOSManageability
WOL by PME, PXE (UEFI mode)Accessories
Cables
2 x SATA 6Gb/s cables
1 x CPU 8-pin to PCIe 8-pin adapter cable package
1 x Thermistor cable pack
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 Q-Latch package(2 in 1)
2 x M.2 Rubber Packages
1 x Q-connector
Documentation
1 x ACC Express Activation Key Card
1 x QSGOperating System
Windows 11Form Factor
CEB Form Factor
12 inch x 11 inch
(30.5 cm x 28.3 cm)Item Dimension (L inchxW inchxH inch)
15 x 13 x 4

Weight
9.92 lb

Warranty Information
3 Years
