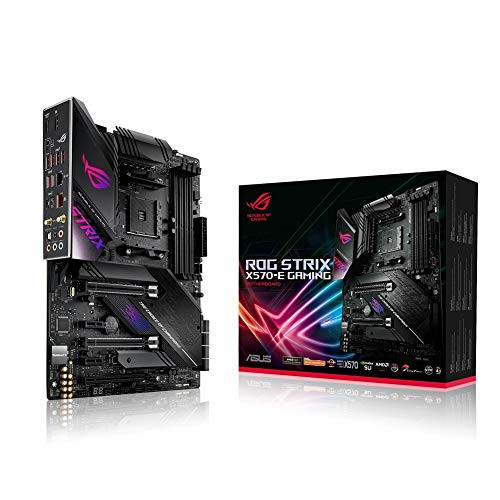

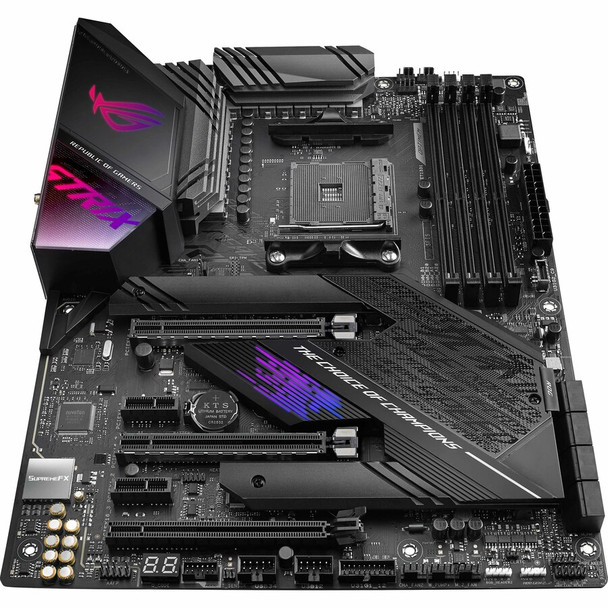

Asus ROG Strix X570-E Gaming Desktop Motherboard - AMD X570 Chipset - Socket AM4 - ATX (ROGSTRIXX570EGAMINGWIFIII)

This item is brand-new, factory sealed.

ROG STRIX X570-E GAMING WIFI II

AMD X570 ATX gaming motherboard with PCIe 4.0, 12+4 power stages, and WiFi 6E (802.11ax), Realtek 2.5 Gb Ethernet, Two-Way AI Noise Cancelation, dual M.2 with heatsinks, SATA 6 GB/s, USB 3.2 Gen 2 Type C and Aura Sync RGB lighting


AMD AM4 socket:? Ready for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2?Gen 2?and AMD?StoreMI?to maximize connectivity and speed

Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors

Comprehensive Cooling: Passive chipset heatsink, VRM heatsink with 8 mm heatpipe, dual on-board M.2 heatsinks and a water pump header

High-Performance Networking: 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, WiFi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V

Best Gaming Connectivity: Supports PCIe 4.0, HDMI 2.0, and DisplayPort 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors

5-Way Optimization: Automated system-wide tuning including custom overclocking and cooling profiles

Industry-Leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS Sound Unbound and Sonic Studio III

DIY Friendly Design: M.2 Q-Latch, patented pre-mounted I/O shield, ASUS SafeSlot and BIOS FlashBack

Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers CPU
AMD Ryzen^TM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
- Refer to www.asus.com for CPU support list. Chipset
X570 Memory
AMD Ryzen^TM 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4
4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen^TM 5000 and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4
5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory
AMD Ryzen^TM 2000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4
3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen^TM 2000 and 3000 G-Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Note: Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Graphics
1 x HDMI 2.0
1 x DisplayPort
1 x HDMI port
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 at 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 at 60 Hz
Note: VGA resolution support depends on processors or graphic cards resolution. For more details about the video input and output settings please refer to the user manual. Expansion Slots
AMD Ryzen^TM 5000 Series/ 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
AMD Ryzen^TM 5000 G Series/4000 G-Series/ 2000 Series Processor
2 x PCIe 3.0 x16 (x16 or dual x8)
AMD Ryzen^TM 2000 G-Series/ 3000 G-Series Processor
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1
Note: PCIeX16_3 slot shares bandwidth with PCIeX1_2. Storage
Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen^TM 5000 Series/ 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes)
AMD Ryzen^TM 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 and SATA modes)
AMD X570 Chipset
M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes)
8 x SATA 6Gb/s ports
Supports RAID 0, 1, 10 Ethernet
1 x Realtek 2.5Gb Ethernet
1 x Intel I211-AT 1Gb Ethernet
Anti-surge LANGuard
ROG GameFirst Technology Wireless and Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
Note: WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USB
AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors
- 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A)
AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors
- 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A)
AMD X570 chipset
- 1 x USB 3.2 Gen2 front panel connector
- 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C)
- 2 x USB3.2 Gen1 ports (at front panel)
- 4 x USB 2.0 ports (at front panel) Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Note: Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Back Panel I/O Ports
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel I211-AT 1Gb Ethernet port
1 x Realtek 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack^TM button Intrernal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
1 x 4-pin M.2 Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-Code
- Q-DIMM
- Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack^TM button
- BIOS FlashBack^TM LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers Software Features
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- 5-Way Optimization by Dual Intelligent Processors 5
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo app
- EZ update
DAEMON Tools
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher BIOS
256 Mb Flash ROM, UEFI AMI BIOS Manageability
WOL by PXE Accessories
Cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manualItem Dimension (L inchxW inchxH inch)
14 x 11 x 4

Weight
5.00 lb

Warranty Information
3 Years

Package Contents:

• Strix X570-E Gaming Desktop Motherboard
• 1 x User Guide
• 1 x ROG STRIX Motherboard Support DVD
• 1 x ASUS 2x2 dual band Wi-Fi Antenna
• 1 x 4-in-1 SATA 6Gb/s Cables
• 1 x 2-in-1 M.2 Screws Package
• 1 x Extension Cable for RGB Strips
• 1 x Extension Cable for RGB Addressable Strips
• 1 x ROG STRIX Door Hanger
• 1 x ROG STRIX Sticker
• 1 x ROG Thank You Card
• 1 x Thermistor Cable
• 1 x Cable Tie Package
