Asus

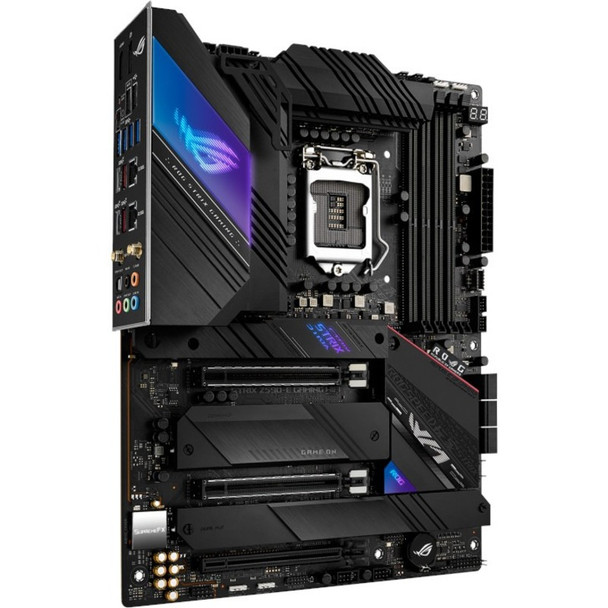

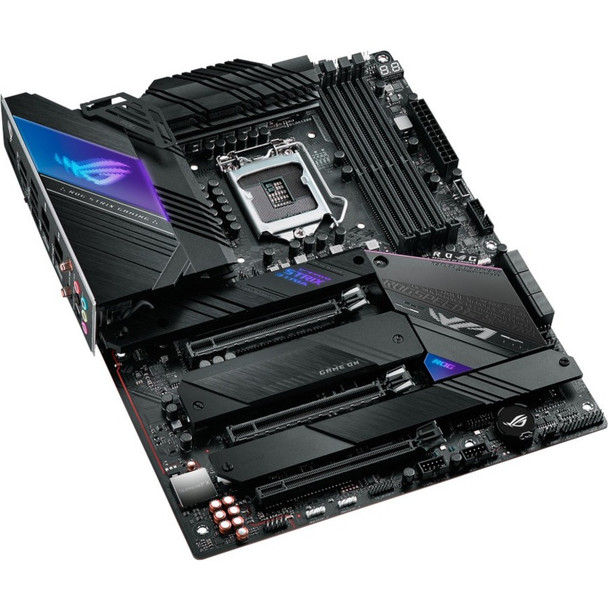

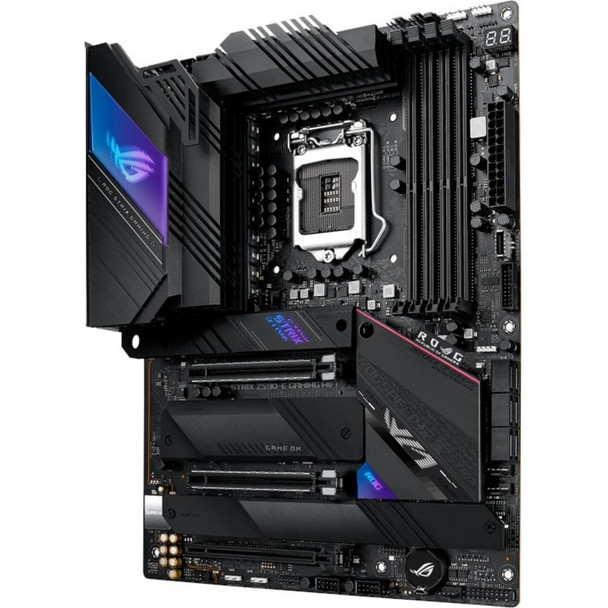

Asus ROG Strix Z590-E GAMING WIFI Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX (ROGSTRIXZ590EGAMINGWIFI)
(No reviews yet)
Write a Review
- SKU:
- 18214040
- MPN:
- rogstrixz590-egamingwifi
- Availability:
- Out of stock
- Stock Update:
- 04/30/2025 05:55:06 PM PST
- Stock Update:
- 04/30/2025 05:55:06 PM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: ROG STRIX Z590-E GAMING WIFI
- CPU:
- ?Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel 14 nm CPU
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel Z590 Chipset
- Memory:
- 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
- OptiMem III
- Graphics:
- 1 x DisplayPort 1.4
- 1 x HDMI 2.0
- Expansion Slots:
- Intel 11th &10th Gen Processors- 2 x PCIe 4.0/3.0 x16 slot(s)(Intel 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s); Intel 10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s) )
- Intel Z590 Chipset-1 x PCIe 3.0 x16 slot (supports x4 mode)
- Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology
- Storage:
- Total supports 4 x M.2 slots and 6 x SATA 6Gb/s ports
- Intel 11th &10th Gen Processors- M.2_1 slot (Key M), type 2242/2260/2280/22110(Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs)- M.2_2 slot (Key M), type 2242/2260/2280/22110(Intel 11th processors support PCIe 4.0 x4 mode; Intel 10th processors support PCIe 3.0 x4 mode)
- Intel Z590 Chipset- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)- 6 x SATA 6Gb/s ports
- Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
- To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
- LAN:
- 2 x Intel I225-V 2.5Gb Ethernet
- ASUS LANGuard
- Wireless Data Network:
- Intel Wi-Fi 6E
- 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5/6GHz frequency band
- Bluetooth v5.2 hardware ready
- USB Ports:
- ?Rear USB (Total 10 ports)- 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)- 3 x USB 3.2 Gen 2 port (2 x Type-A, 1 x USB Type-C )- 4 x USB 3.2 Gen 1 port (4 x Type-A)- 2 x USB 2.0 port(s) (2 x Type-A)
- Front USB (Total 7 ports)- 1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C)- 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports- 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
- Audio:
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playback
- Audio Features- SupremeFX Shielding Technology- ALC4080 + Savitech SV3H712 AMP- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium Japanese audio capacitors- Audio cover
- Back I/O Ports:?
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C)
- 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
- 2 x USB 2.0 port(s) (2 x Type-A)
- 1 x HDMI port
- 1 x DisplayPort
- 1 x Intel Wi-Fi 6E
- 2 x Intel I225-V 2.5Gb Ethernet
- 5 x Gold-plated audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
- 1 x Clear CMOS button
- Internal I/O Connectors:
- ?Fan and Cooling related- 1 x 4-pin CPU Fan header(s)- 1 x 4-pin CPU OPT Fan header(s)- 1 x 4-pin AIO Pump header(s)- 3 x 4-pin Chassis Fan header(s)- 1 x VRM heatsink Fan header- 1 x W_PUMP+ header
- Power related- 1 x 24-pin Main Power connector- 1 x 8-pin +12V Power connector- 1 x 4-pin +12V Power connector
- Storage related- 4 x M.2 slots (Key M)- 6 x SATA 6Gb/s ports
- USB- 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C)- 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports- 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
- Miscellaneous- 3 x AURA Addressable Gen 2 header(s)- 1 x AURA RGB header(s)- 1 x CPU Over Voltage jumper
- ASUS Special Features:
- ?Extreme Engine Digi+
- ASUS Q-Design
- ASUS Thermal Solution
- ASUS EZ DIY
- AURA Sync
- ASUS HYDRANODE
- Software Features:
- ROG Exclusive Software- RAMCache III- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer- Sonic Radar III- DTS Sound Unbound- Overwolf- Anti-virus software
- ASUS Exclusive Software
- Armoury Crate-AIDA64 Extreme (60 days free trial)- AURA Creator- AURA Sync- Two-Way AI Noise Cancelation
- AI Suite 3- 5-Way Optimization with AI Overclocking
- TPU, EPU, DIGI+ VRM, Fan Xpert 4
- Turbo app- EZ update
- DAEMON Tools, MyAsus, WinRAR, UEFI BIOS, AI Overclocking Guide
- ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
- FlexKey, MemTest86
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS?
- Manageability: WOL by PME, PXE
- Accessories:?
- Cables- 4 x SATA 6Gb/s cables
- Additional Cooling Kit- 1 x Assistant fan (40mm)- 1 x Screw package for cooling kit
- Miscellaneous- 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas- 1 x M.2 Q-Latch package- 2 x M.2 Rubber Packages- 1 x ROG key chain- 1 x cable tie- 1 x ROG Graphics card holder- 1 x ROG STRIX stickers- 1 x ROG STRIX thank you card
- Installation Media- 1 x Support DVD
- Documentation- 1 x User manual
- Operating System: Windows 10 64-bit
- Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers
Package Contents:
- Strix Z590-E GAMING WIFI Desktop Motherboard
- 4 x SATA 6Gb/s Cables
- Additional Cooling Kit
- 1 x Assistant Fan (40mm)
- 1 x Screw Package for Cooling Kit
- 1 x ASUS 2x2 Dual-Band Wi-Fi Moving Antennas
- 1 x M.2 Q-Latch Package
- 2 x M.2 Rubber Packages
- 1 x ROG Key Chain
- 1 x Cable Tie
- 1 x ROG Graphics Card Holder
- 1 x ROG STRIX Stickers
- 1 x ROG STRIX Thank You Card
- 1 x Support DVD
- 1 x User Manual
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
- Strix Z590-E GAMING WIFI Desktop Motherboard
- 4 x SATA 6Gb/s Cables
- Additional Cooling Kit
- 1 x Assistant Fan (40mm)
- 1 x Screw Package for Cooling Kit
- 1 x ASUS 2x2 Dual-Band Wi-Fi Moving Antennas
- 1 x M.2 Q-Latch Package
- 2 x M.2 Rubber Packages
- 1 x ROG Key Chain
- 1 x Cable Tie
- 1 x ROG Graphics Card Holder
- 1 x ROG STRIX Stickers
- 1 x ROG STRIX Thank You Card
- 1 x Support DVD
- 1 x User Manual
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Warranty | |
| Limited Warranty | 3 Year |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| Intel Optane Memory Ready | Yes |
| General Information | |
| Brand Name | Asus ROG |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ROG STRIX Z590-E GAMING WIFI Intel® Z590 LGA 1200 ATX motherboard with PCIe® 4.0, 14+2 Teamed power stages, Two-Way AI Noise-Cancelation, AI Overclocking, AI Cooling, AI Networking, WIFI 6E (802.11ax), Dual Intel® 2.5 Gb Ethernet, Quad M.2 with heatsinks, USB 3.2 Gen 2, SATA and AURA Sync RGB lighting Intel® Socket LGA 1200 for 11th Gen Intel® Core™ processors and 10th Gen Intel Core, Pentium® Gold and Celeron® processors Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors Optimized Thermal Design: VRM and aluminum I/O heatsink, L-shaped heatpipe, Trio onboard M.2 heatsinks, including an M.2 backplate for improved cooling for PCIe 4.0 M.2 slot High-performance Networking: On-board Intel® WiFi 6E AX210 (802.11ax) and dual Intel® 2.5 Gb Ethernet with ASUS LANGuard Best Gaming Connectivity: Supports HDMI® 2.0 and DisplayPort™ 1.4 output, and featuring quad M.2 and USB 3.2 Gen 2 Type-A and Type-C® connectors Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation DIY Friendly Design: M.2 Q-Latch, Pre-mounted I/O shield, BIOS FlashBack™, Clr CMOS button, Q-Code and FlexKey Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS ® Sound Unbound and Sonic Studio III Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86 |
| Product Type | Desktop Motherboard |
| Product Name | Strix Z590-E GAMING WIFI Desktop Motherboard |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG STRIX Z590-E GAMING WIFI |
| Product Model | Z590-E GAMING WIFI |
| Product Line | Strix |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Multi GPU Supported | SLI |
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Model | Z590 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 3.2 Ports | 3 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 2.0 Ports | 4 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| S/PDIF | Yes |
| DisplayPort | Yes |
| Number of USB 3.2 Ports | 2 |
| HDMI | Yes |
| Number of USB 2.0 Ports | 2 |
| Total Number of USB Ports | 10 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of Network (RJ-45) Ports | 2 |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| 2.5Gigabit Ethernet | Yes |
