Asus ROG Strix Z690-I GAMING WIFI Gaming Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Mini ITX (strixz690-igamwf)

This item is brand-new, factory sealed.

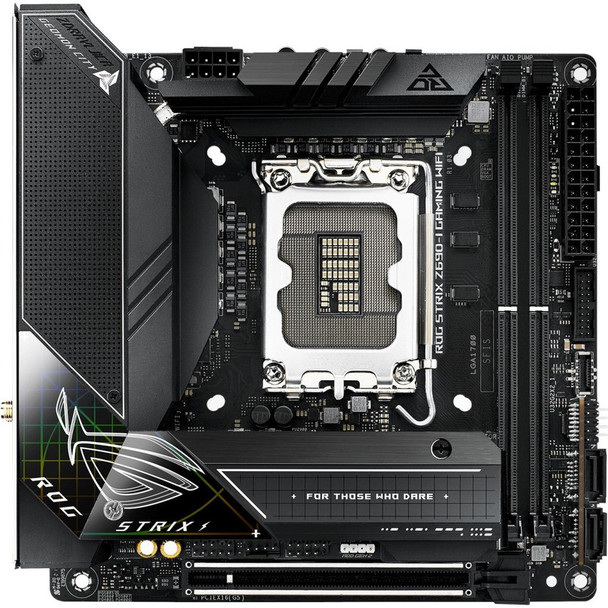

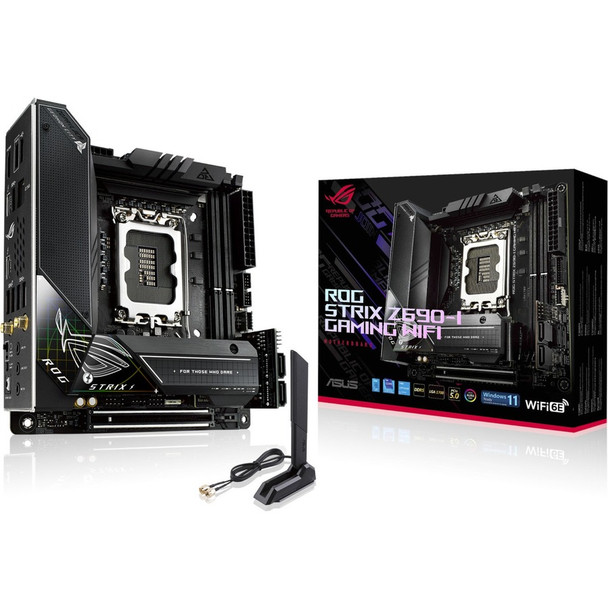

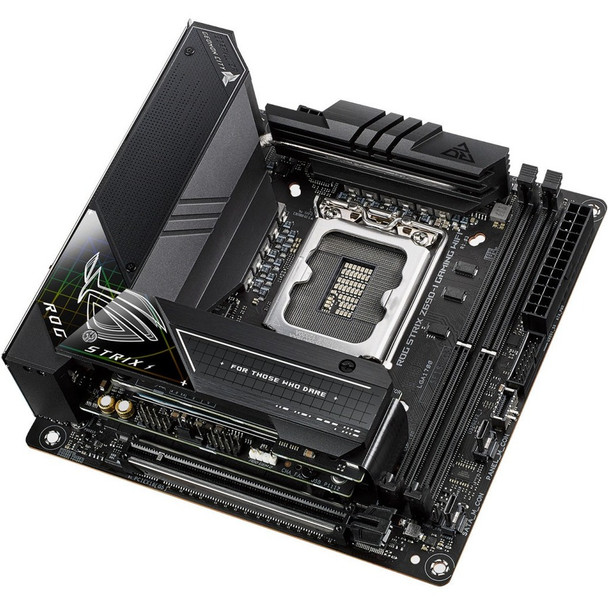

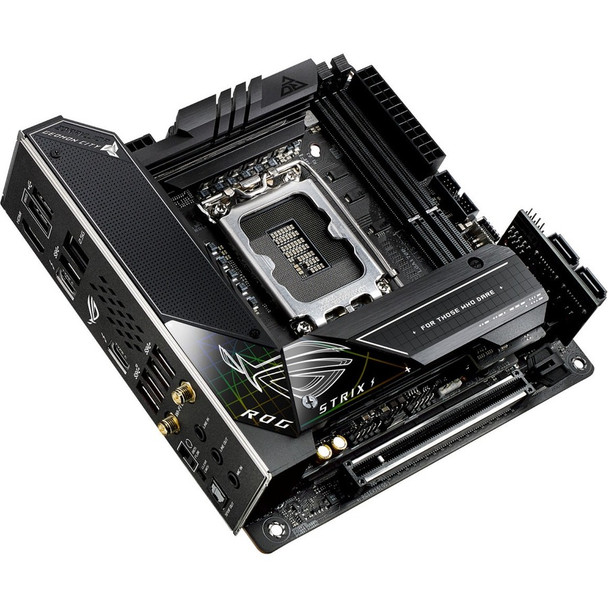

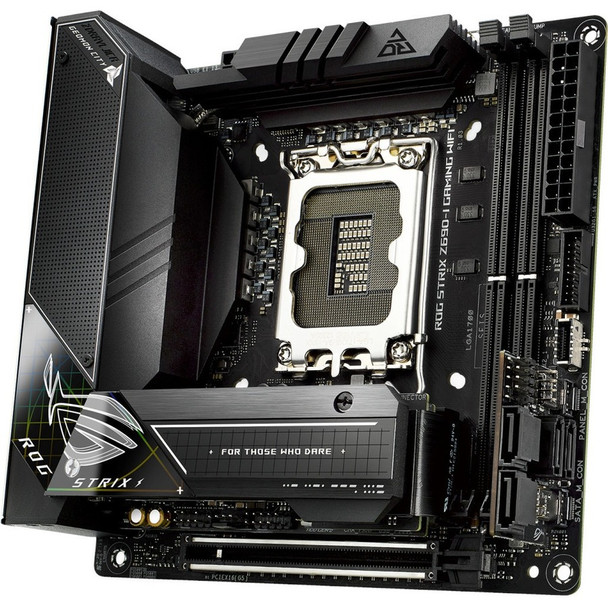

ROG STRIX Z690-I GAMING WIFI

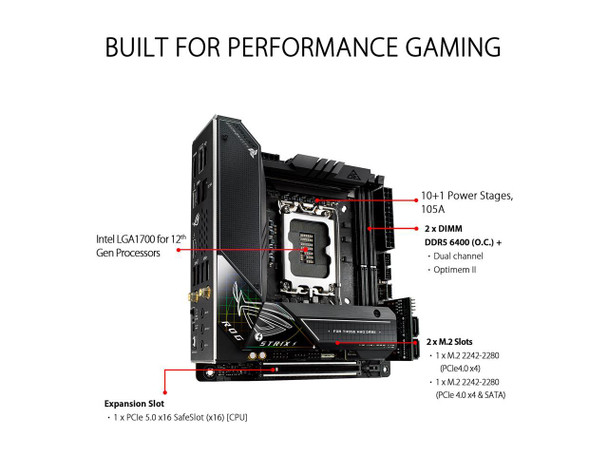

Intel Z690 LGA 1700 ITX motherboard with PCIe 5.0, 10+1 power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet, two M.2 slots with heatsinks and backplates, two Thunderbolt 4 USB Type-C, SATA and Aura Sync RGB lighting
IntelLGA 1700 socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Optimal Power Solution: 10+1 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, two onboard M.2 heatsinks and backplates
High-performance Networking:On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI 2.1, two M.2 slots, 2 x ThunderboltTM 4 as well as 1 x USB 3.2 Gen 2x2 Type-C
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation to simplify setup and improve performance
DIY Friendly Design: Bundled ROG Front Panel SATA Card, M.2 Q-Latch, Pre-mounted I/O shield, BIOS FlashBack button, and Clr CMOS button
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and two addressable Gen 2 headers
Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.Chipset
Z690
Intel Z690 ChipsetMemory
2 x DIMM, Max. 64GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.Graphics
1 x HDMI 2.1
2 x Intel Thunderbolt 4 portsExpansion Slots
Intel 12th Gen Processors
1 x PCIe 5.0 x16 slot(s)
Please check PCIe bifurcation table in support site.Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel Z690 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s portsEthernet
1 x Intel 2.5Gb Ethernet
1 x Intel 2.5Gb EthernetWireless and Bluetooth
Intel Wi-Fi 6E
"Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. "USB
Rear USB (Total 9 ports)
2 x Thunderbolt 4 port(s) (2 x USB Type-C)
2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 portsAudio
"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports
2 x Thunderbolt 4 USB Type-C port(s)
2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS buttonInternal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x 2 pin POWER_BTN header
2 x USB Type-C connectors to Install ROG Strix Front panel SATA card

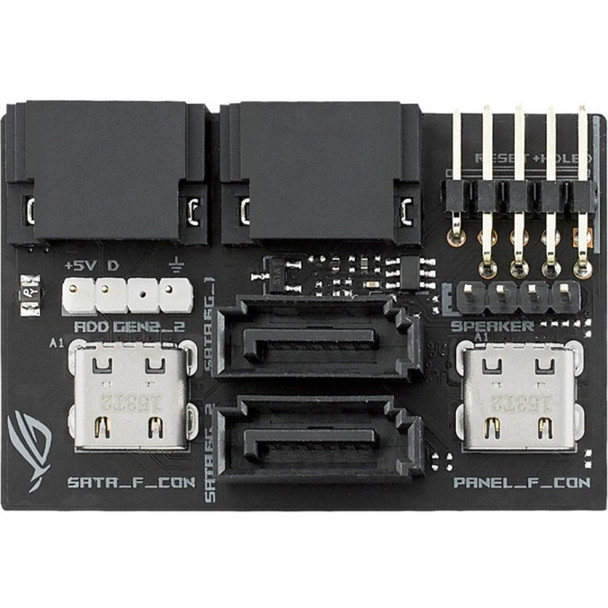

Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports, 1 x Addressable Gen 2 header, 1 x Front Panel header and 1 x Speaker header.Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Easy Optimization with AI Overclocking
TPU
EPU
DIGI+ VRM
Turbo app
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86BIOS
256 Mb Flash ROM, UEFI AMI BIOSManageability
WOL by PME, PXEAccessories
Cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG logo plate stickers
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User guideOperating System
Windows 11 64-bit, Windows 10 64-bit
Windows 11 64-bit, Windows 10 64-bitForm Factor
Mini ITX
17cm x 17cmItem Dimension (L"xW"xH")
9 x 8 x 4

Weight
3.36 lbs

Warranty Information
3 Years
