Asus

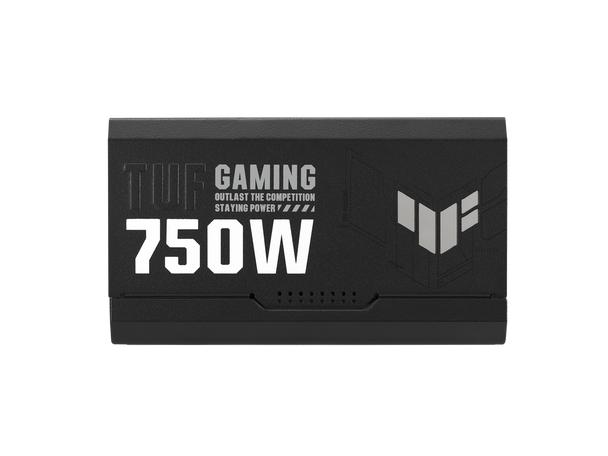

Asus TUF Gaming 750W Gold TUFGAMING750G
- SKU:
- 20065009
- MPN:
- tuf-gaming-750g
- Availability:
- Out of stock
- Stock Update:
- 12/09/2025 10:12:34 AM PST
- Stock Update:
- 12/09/2025 10:12:34 AM PST
Description
This item is brand-new, factory sealed.
DurabilityTUF Components
Top marks
With military-grade components, including capacitors rated for 105C operation and up to 170,000 hours lifespan, the ASUS TUF Gaming 750W Gold empowers you to build in confidence.
Dual Ball Fan Bearings
2x longer lifespan
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
ENGINEERING
80 Plus Gold Certification
Heart of gold
The TUF Gaming 750W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation affording it 80 PLUS Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.Model
TUF Gaming 750W Gold
Intel Form Factor
ATX12V
ATX 3.0
Yes
Efficiency
80Plus Gold
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 62A 0.8A 3A
Combined Load
130W 130W 744W 9.6W 15W
Total Output
750W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU and component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable tie x 3
User Manual x 1
0dB Fan Button
NoItem Dimension (L inchxW inchxH inch)
13 x 8 x 5
Weight
6.76 lbs
Warranty Information
10 Years
Specs
| Power Description | |
| Output Current |
|
| Output Voltage Detail |
|
| Output Voltage |
|
| Physical Characteristics | |
| Weight (Approximate) | 5.25 lb |
| Height | 5.9" |
| Width | 5.9" |
| Depth | 3.4" |
| General Information | |
| Brand Name | Asus |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Built For The Long Haul The ASUS TUF Gaming 750W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come. Durability | TUF Components | Top marks With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours' lifespan, the ASUS TUF Gaming 750W Gold empowers you to build in confidence. Dual Ball Fan Bearings | 2x longer lifespan Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design. Protective PCB Coating | All wrapped up A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris. ENGINEERING | 80 Plus Gold Certification | Heart of gold The TUF Gaming 750W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation - affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability. ATX 3.0 Compatible | Step into the future The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities. Axial-tech Fan Design | Better, faster, stronger Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise. EXPERIENCE | 10-year Warranty | A decade of power We're so confident about the reliability of the TUF Gaming 750W Gold that we back it with a 10-year worldwide warranty. Fully Modular Etched Cables | Supple ply The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces. More from the Manufacturer |
| Product Type | Power Supply |
| Product Name | TUF Gaming 750W Gold |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TUFGAMING750G |
| Product Line | TUF Gaming |
| Technical Information | |
| Specification Compliance |
|
| Efficiency | 92% |
| Number of Fans | 1 |
| Modular | Yes |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
