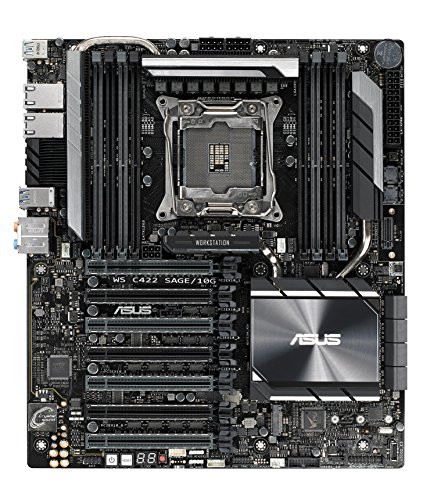

Asus WS C422 SAGE/10G Workstation Motherboard - Intel Chipset - Socket R4 LGA-2066 (219746)

This item is brand-new, factory sealed.

High Speed networking with dual Intel 10G LAN


With built in dual Intel 10GBASE-T networking, WS C422 Sage/10G increases data throughput and improves efficiency. This supports high-density, high-bandwidth and low-latency access-layer networks needed for extremely demanding applications, such as graphics or video production.



Ultimate graphics power with up to 4-way NVIDIA SLI and AMD CrossFireX

WS C422 Sage/10G fits up to four dual-slot graphics cards and supports both NVIDIA SLI and AMD CrossFireX 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA Quadro. NVIDIA Quadro is the perfect complement to WS C422 Sage/10G, delivering the best performance for design, modeling, medical research, and processing-intensive simulation and rendering applications.CPU
Intel Socket 2066 Processors
Supports Intel Virtual RAID on CPU (VROC)
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types.Chipset
Intel C422Memory
8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory ^x1
Quad Channel Memory ArchitecturMulti-GPU Support
Supports NVIDIA 4-Way SLI^TM Technology
Supports AMD 4-Way CrossFireX TechnologyExpansion Slots
Intel C422 Chipset
7 x PCIe 3.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, ) ^x2Storage
Intel C422 Chipset : ^x3
1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s port(s)
2 x U.2 connector
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology Enterprise supports
Intel Virtual RAID (VROC) support for CPU RAIDLAN
Intel X550-AT2
2 x 10 Gigabit LANAudio
Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)
- Supports up to 32-Bit/192kHz playback ^x4
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal qualityUSB Ports
Intel C422 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)
ASMedia USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C^TM)
ASMedia USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 port(s) (1 at mid-board)Workstation Feature
ASUS Control Center (ACC)Special Features
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III :

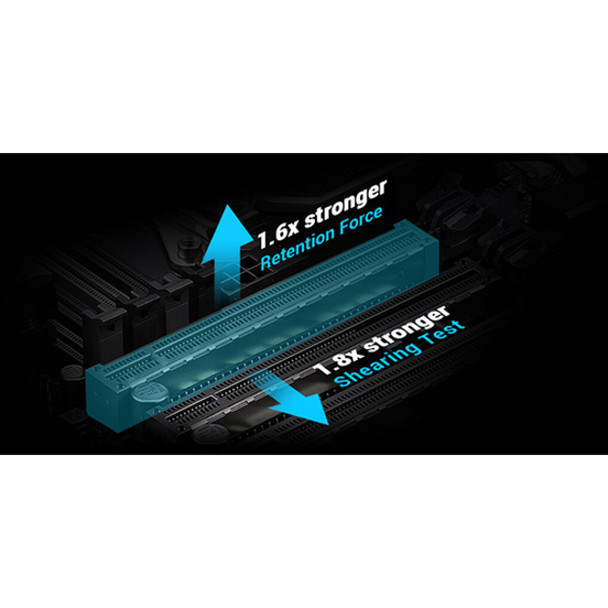

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
AURA :
- Aura RGB Strip Headers
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- MemOK
- Ai Charger+
- Onboard Button : Power/Reset
- File Transfer
DIGI + Power Control :
- CPU Power: Digital 8-phase power design
DIGI + Power Control :
- DRAM Power: Digital 2-phase power design
ASUS EZ DIY :
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Turbo App
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
Asus Control Center (ACC) IT management software supported
Intel Virtual RAID on CPU (VROC) ready
ASMedia USB 3.1 Gen 2 Controller supports Multiple-Ins function
Thunderbolt 3 supportOperating System Support

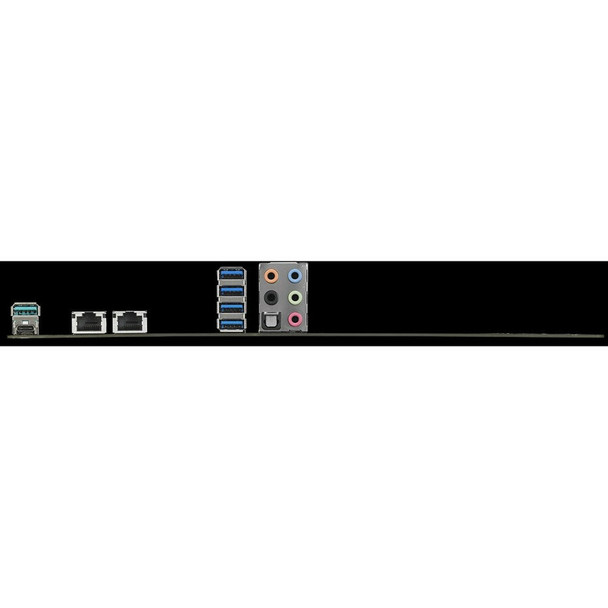

Windows 10 64-bitBack I/O Ports

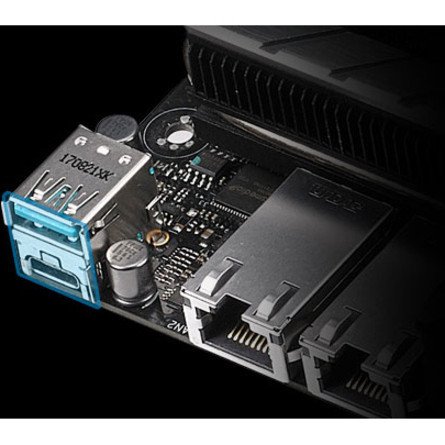

2 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (teal blue)Type-A,
1 x USB 3.1 Gen 2 (black)Type-C
1 x Optical S/PDIF out
1 x 8-channel Audio I/O
4 x USB 3.1 Gen 1 (blue)Internal I/O Ports
1 x Aura Addressable Strip Header(s)
2 x U.2 port
1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector 1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 6-pin ATX Power connector
2 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x USB BIOS Flashback button(s)
1 x Water Pump header (4-pin)
1 x System panel connector
1 x Thermal sensor connector

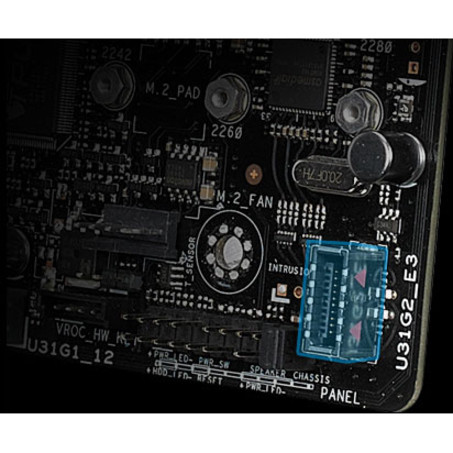

1 x USB 3.1 Gen 2 front panel connector
1 x CPU_OV jumper
1 x MemOK Button
1 x M.2 Fan HeaderAccessories
Users manual
Addressable LED extension cable
1 x Vertical M.2 bracket set
I/O Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x M.2 screws
1 x Supporting DVD
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-ConnectorForm Factor
CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )Environment
Operation temperature: 10^o to 35^o
Non operation temperature: -40^o to 70^o
Non operation humidity: 20% to 90% ( Non condensing)Note
1 Memory capacity supported depends on both CPU and Memory installed.
2 Please refer to the block diagrams in the Appendix for more details in the manual.
3 Intel VROC is supported via RSTe, and Intel VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel VROC_HW_key installed.
4 Due to limitations in HAD bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows 10.Item Dimension ( L inch x W inch x H inch)
15 x 11 x 5Weight
14.29 lb

Package Contents:

• WS C422 SAGE/10G Workstation Motherboard
• User's Manual
• Addressable LED Extension Cable
• 1 x Vertical M.2 Bracket Set
• I/O Shield
• 1 x COM Port Cable(s)
• 8 x SATA 6Gb/s cable(s)
• 1 x M.2 Screws
• 1 x Supporting DVD
• 1 x 3-Way SLI Bridge(s)
• 1 x 4-Way SLI Bridge(s)
• 1 x SLI HB BRIDGE(2-WAY-M)
• 1 x Q-Connector
