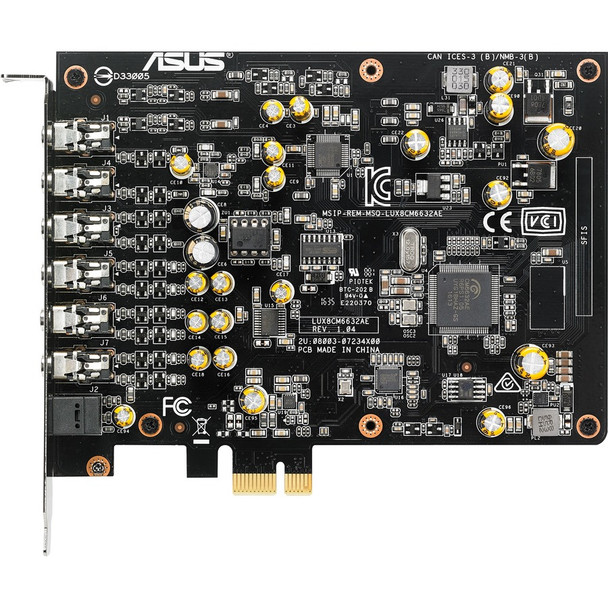

Asus PCIe 7.1 Gaming Audio Card XONAR AE (XONARAE)
(No reviews yet)
Write a Review
- SKU:
- 18157668
- MPN:
- xonarae
- Availability:
- Out of stock
- Stock Update:
- 09/30/2025 12:08:04 PM PST
- Stock Update:
- 09/30/2025 12:08:04 PM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: XONAR AE
- Features:
- 192kHz/24-bit Hi-Res audio and 7.1-channel, 150ohm headphone amp
- High-quality ESS DAC with 110dB signal-to-noise ratio (SNR)
- Exclusive EMI back plate provides noise shielding for exceptionally clear audio
- Sonic Studio enables full audio control via an intuitive, one-page interface
- Perfect Voice technology eliminates background noise for clear in-game communication
- Audio Interface: PCI Express
- Audio Performance:
- Output Signal-to-Noise Ratio (A-Weighted): 110dB (Front-out), 108 dB (Headphone-out)
- Input Signal-to-Noise Ratio (A-Weighted): 103 dB
- Output THD+N at 1kHz (Front-out): <0.00158% (-96dB)
- Input THD+N at 1kHz: <0.0022% (-93dB)
- Frequency Response (-3dB, 24-bit/192kHz input): 10Hz to 65KHz
- Chipset:
- Audio Processor: C-Media USB2.0 6632AE High-Definition Sound Processor (Max 192KHz/24bit)

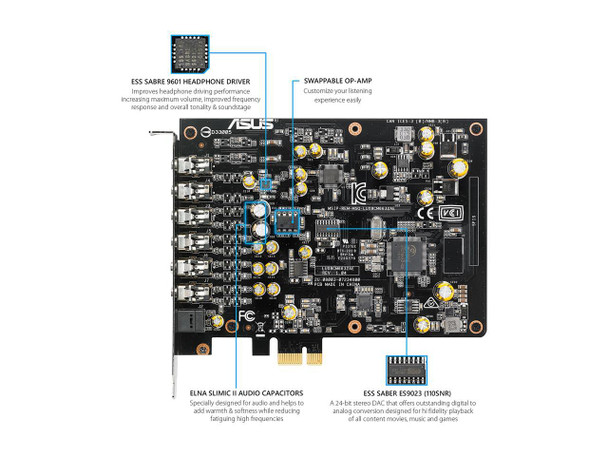

- Digital-to-analog Converter(DAC)?: ESS ES9023P (112dB DNR, Max. 192KHz/24bit), Cirrus Logic CS4245 (104dB DNR, Max. 192KHz/24bit), Cirrus Logic CS4361 (103dB DNR, Max. 192KHz/24bit)
- Sample Rate and Resolution:
- Analog Playback Sample Rate and Resolution: 44.1K/ 48K/ 88.2K/ 96K/ 176.4K/ 192KHz @ 16/24bit
- Analog Recording Sample Rate and Resolution: 44.1K/ 48K/ 88.2K/ 96KHz @ 16/24bit
- S/PDIF Digital Output: 44.1K/ 48K/ 88.2K/ 96K/ 176.4K/ 192KHz @ 16/24bit
- ASIO 2.2 Driver Support : 44.1K/ 48K/ 96K/ 192KHz @ 24/32bit
- Connectivity:
- Analog Output: 5x 3.5mm jack (1/8") (Headphone out / Front out/ Side out/ Center-Subwoofer out/ Rear out)
- Analog Input: 1x 3.5mm jack (1/8") (Line-in/ Mic-in combo)
- Digital: 1x S/PDIF out (1 x Optical (Toslink))
- Special Features: Sonic Studio
- Operating System: Windows 10/ 8.1/ 7 ( 32-bit/ 64-bit)
- Accessories:
- ?1x S/PDIF optical adaptor
- 1x Driver CD
- 1x Quick start guide
Features
Package Contents:
Yes
China
- PCIe 7.1 Gaming Audio Card XONAR AE
- Driver CD
- SPDIF TOSLINK Optical Adapter
- Quick Start Guide
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Internal |
| Weight (Approximate) | 1.05 lb |
| Length | 2.4" |
| Height | 9.4" |
| Width | 6.5" |
| Interfaces/Ports | |
| Number of Headphone Ports | 1 |
| Number of Microphone Ports | 1 |
| S/PDIF Out | Yes |
| Number of Audio Line In | 1 |
| Number of Audio Line Out | 5 |
| General Information | |
| Brand Name | Asus |
| Manufacturer Website Address | http://usa.asus.com |

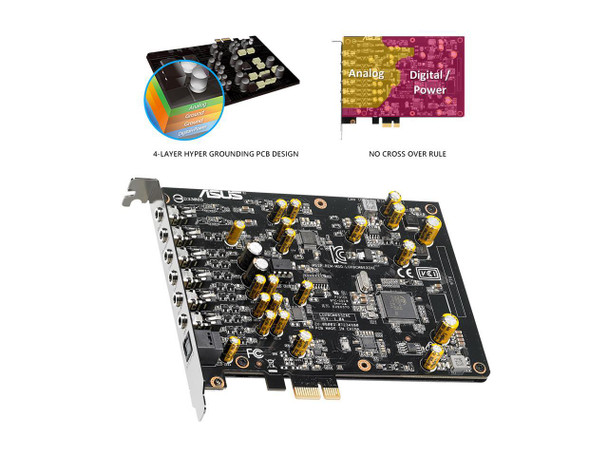

| Marketing Information | Immersive audio optimized for gaming With up to 7.1-channel output and support for 192kHz/24-bit Hi-Res audio, Xonar AE lets you enjoy truly cinematic sound while gaming, watching movies, and listening to music. 192kHz/24bit Premium HD audio experience with all output channels 7.1 surround channel Immersive your audio experience Enjoy reduced latency with the support of Audio Stream Input/Output (ASIO) 2.2 drivers, making Xonar AE the perfect solution for high-quality, low-latency audio recordings. Powerful headphone amplifier Vivifies every sound detail with 32-150ohm headphones Supports a wide range of compatible headphones, precisely position footsteps and gunfire sounds and get immersed with powerful bass! Top-notch Component Selection on DAC | Digital to analog converter (DAC) on STRIX RAID DLX A hi-fi-grade ESS ES9023 DAC delivers an exceptional, jitter-free audio signal with a 110dB signal-to-noise ratio (SNR). No Cross Over Rule: Analog signal is separated from digital signal on different sections to avoid cross-over interferences Exclusive EMI back plate Xonar AE is built with an ASUS-exclusive EMI back plate that blocks static noise to provide you with the purest audio experiences. Exclusive EMI back plate Block out EMI inside the chassis for exceptionally clear sound EMI line shielding Only blocks EMI from the motherboard or add-ons, but can't block the radiation coming from VGA card or PSU. Take complete control of your audio with Sonic Studio Xonar AE features the latest Sonic Studio software suite, so you have full control over every audio technology ranging from equalization (EQ) to 7.1-speaker level-balancing. Perfect Voice | Noise-free communications! Perfect voice is an innovative noise cancellation technology. Through specialized algorithms, it precisely recognizes human voice and dynamically filters out environmental noise for clear communications. Works perfectly with Windows 10 Xonar AE is fully compatible with Windows 10 and features Windows Hardware Quality Labs (WHQL) support, ensuring a great audio experience with minimal setup hassles. |
| Product Type | Sound Board |
| Product Name | PCIe 7.1 Gaming Audio Card XONAR AE |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | XONAR AE |
| Product Model | AE |
| Product Line | Xonar |
| Technical Information | |
| Maximum Recording Sampling Rate | 3 Byte 96 kHz |
| DAC Data Width | 24 bit |
| Host Interface | PCI Express |
| Audio Processor Manufacturer | C-Media |
| Audio Processor Model | 6632AE |
| Maximum Playback Sampling Rate | 3 Byte 192 kHz |
| Sound Channels | 7.1 |
| Signal to Noise Ratio (SNR) | 110 dB |
