ATEN 4-Port USB 3.0 DisplayPort KVMP Switch-TAA Compliant - 4 Computer(s) (194217)
(No reviews yet)
Write a Review
- SKU:
- 18890536
- MPN:
- 194217
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/14/2025 11:46:17 PM PST
- Stock Update:
- 12/14/2025 11:46:17 PM PST
Description
This item is brand-new, factory sealed.
The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.4-port DisplayPort KVMP Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio
One USB console controls 4 computers and 2 USB peripherals
Computer selection via front panel pushbuttons, hotkeys and mouse
Independent switching of KVM, USB, and Audio focus
Superior video quality up to 3840 x 2160 @ 30 Hz
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
DisplayPort 1.1 compliant, HDCP compliant
Supports HD audio through DisplayPort
Full bass response for high-quality 2.1 channel surround sound systems
Power On Detection if a computer is powered off, the CS1914 automatically switches to the next powered-on computer
Dual-Mode DisplayPort technology (DP++) supports HDMI and DVI signals via an DisplayPort-to-HDMI/DVI DP++ adapter
Hot pluggable add or remove computers without powering down the switch
Keyboard emulation/bypass feature supports most gaming keyboards
Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
Multi-platform support Windows, Mac, and Linux
Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Mac keyboard support and emulation
Auto Scan Mode for monitoring all computers
Firmware upgradable
Computer Connections
4Port Selection
Hotkey, Pushbutton, MouseConnectors
Console Ports:
2 x USB Type A Female (Black)
1 x DisplayPort Female (Black)
2 x Mini Stereo Jack Female (Green, 1 x front, 1 x rear)
KVM (Computer) Ports:
4 x USB3.1 Gen1 Type B Female (Blue)
4 x DisplayPort Female (Black)
4 x Mini Stereo Jack Female (Green)
Power: 1 x DC Jack
USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue, 1 x front panel, 1 x rear panel)Switches
Selected: 4 x PushbuttonLEDs
On Line /Selected: 4 (Orange)
USB Link: 4 (Green)Emulation
Keyboard / Mouse: USBVideo
3840 x 2160 at 30HzScan Interval
1-99 Seconds (Default: 5 sec.)Power Consumption
DC 5.0V, 3.3WEnvironmental
Operating Temperature: 0-50oC
Storage Temperature: -20-60oC
Humidity: 0-80% RH, Non-condensing
Housing: Metal, PlasticItem Dimension (L inchxW inchxH inch)
13 x 4 x 9
Weight
5.00 lb
Warranty Information
3 Years

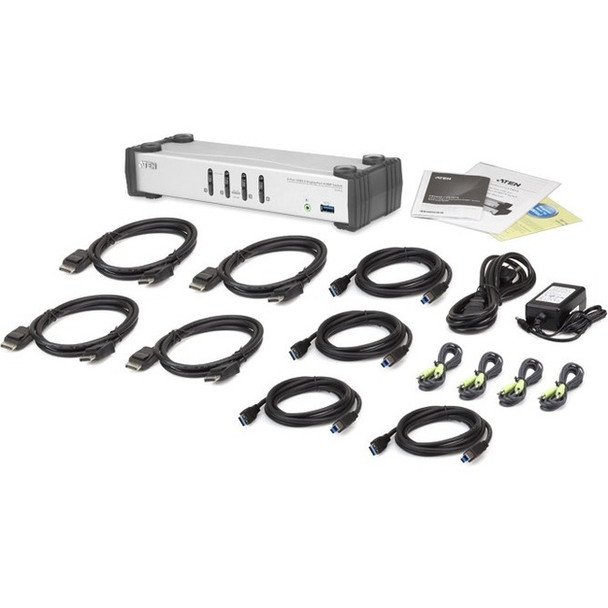

Package Contents:
- 4-Port USB 3.0 DisplayPort KVMP Switch
- 4 x DisplayPort Cable (1.5m/5ft)
- 4 x USB Cable (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
- 4 x Audio Cable (1.8m/6ft)
- 1 x Power Adapter
- 1 x User Instructions
Features
Package Contents:
Yes
Taiwan
- 4-Port USB 3.0 DisplayPort KVMP Switch
- 4 x DisplayPort Cable (1.5m/5ft)
- 4 x USB Cable (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
- 4 x Audio Cable (1.8m/6ft)
- 1 x Power Adapter
- 1 x User Instructions
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Desktop |
| Weight (Approximate) | 2.01 lb |
| Height | 2.2" |
| Width | 3.5" |
| Depth | 10.6" |
| Interfaces/Ports | |
| Number of USB Ports | 8 |
| Number of DisplayPorts | 5 |
| USB | Yes |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| General Information | |
| Brand Name | ATEN |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations. As a KVM switch, the CS1914 gives users access to four DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1914 provides three convenient switching methods - front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers. ATEN's unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a printer server, modem or splitter. With its rich feature set, the CS1914 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1914 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience. More from the Manufacturer |
| Product Type | KVM Switchbox |
| Product Name | 4-Port USB 3.0 DisplayPort KVMP Switch |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1914 |
| Product Model | CS1914 |
| Product Series | SOHO |
| Packaged Quantity | 1 |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
