ATEN 2-Port USB 3.0 4K DisplayPort KVMP Switch-TAA Compliant - 2 Computer(s) (194220)
(No reviews yet)
Write a Review
- SKU:
- 18870984
- MPN:
- 194220
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/14/2026 04:42:28 PM PST
- Stock Update:
- 04/14/2026 04:42:28 PM PST
Description
This item is brand-new, factory sealed.
The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.2-port DisplayPort KVMP Switch with USB 3.1 Gen1 hub and 2.1 surround sound audio
One USB console controls 2 computers and 2 USB peripherals

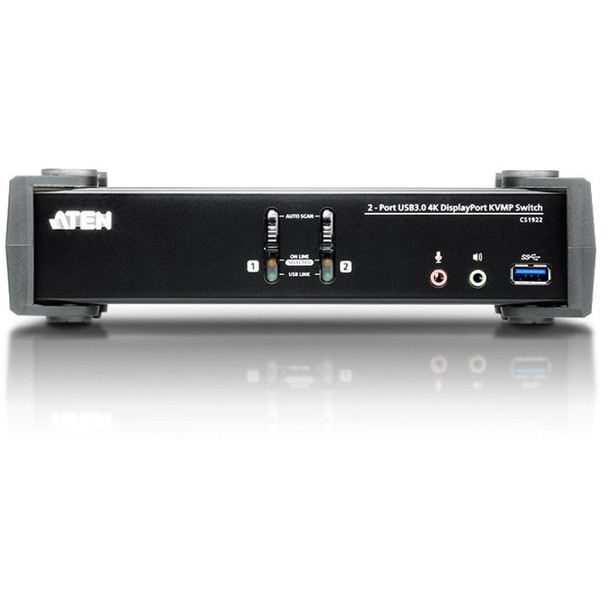

Computer selection via front panel pushbuttons, hotkeys and mouse
Independent switching of KVM, USB, and Audio focus
Superior video quality 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
DisplayPort 1.2 compliant, HDCP compliant
Supports HD audio through DisplayPort
Full bass response for high-quality 2.1 channel surround sound systems
Power On Detection if a computer is powered off, the CS1922 automatically switches to the next powered-on computer
Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector
Dual-Mode DisplayPort technology (DP++) supports HDMI and DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter
Hot pluggable add or remove computers without powering down the switch
Keyboard emulation/bypass feature supports most gaming keyboard
Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
Multi-platform support Windows, Mac and Linux
Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Mac keyboard support and emulation
Auto Scan Mode for monitoring all computers
Firmware upgradeable
Computer Connections
2Port Selection
Hotkey, Pushbutton, MouseConnectors

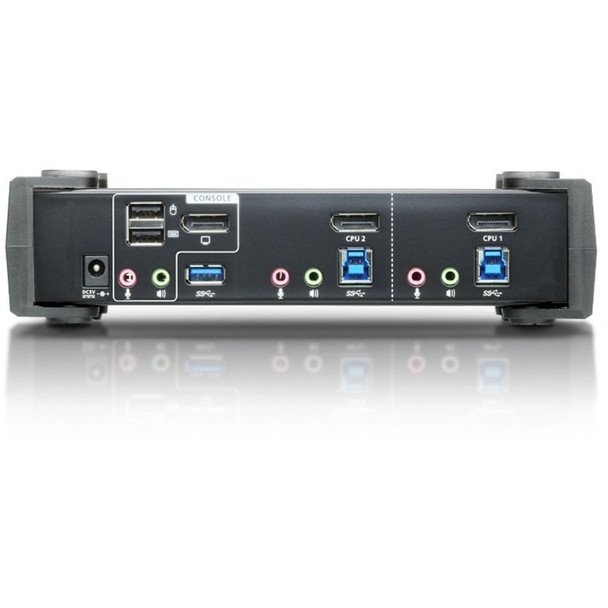

Console Ports:
2 x USB Type A Female (Black)
1 x DisplayPort Female (Black)
2 x Mini Stereo Jack Female (Green, 1 x front, 1 x rear)
2 x Mini Stereo Jack Female (Pink, 1 x front, 1 x rear)
KVM (Computer) Ports:
2 x USB3.1 Gen1 Type B Female (Blue)
2 x DisplayPort Female (Black)
2 x Mini Stereo Jack Female (Green)
2 x Mini Stereo Jack Female (Pink)
Power: 1 x DC Jack
USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue 1 x front panel, 1 x rear panel)Switches
Selected: 2 x PushbuttonLEDs
On Line /Selected: 2 (Orange)
USB Link: 2 (Green)Emulation
Keyboard / Mouse: USBVideo
4096 x 2160 at 60HzScan Interval
1-99 Seconds (Default: 5 sec.)Power Consumption
DC 5.0V, 3.3WEnvironmental
Operating Temperature: 0-50oC
Storage Temperature: -20-60oC
Humidity: 0-80% RH, Non-condensing
Housing: Metal, PlasticItem Dimension (L inchxW inchxH inch)
12 x 4 x 7
Weight
4.00 lb
Warranty Information
3 Years
Package Contents:
- 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
- 2 x DisplayPort Cables
- 2 x USB 3.0 Cables
- 4 x Audio Cables
- 1 x Power Adapter
- 1 x User Instructions
Features
Package Contents:
Taiwan
- 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
- 2 x DisplayPort Cables
- 2 x USB 3.0 Cables
- 4 x Audio Cables
- 1 x Power Adapter
- 1 x User Instructions
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Weight (Approximate) | 1.61 lb |
| Height | 2.2" |
| Width | 3.5" |
| Depth | 8.3" |
| Interfaces/Ports | |
| Number of USB Ports | 6 |
| Number of DisplayPorts | 3 |
| USB | Yes |
| DisplayPort | Yes |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| General Information | |
| Brand Name | ATEN |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations. As a KVM switch, the CS1922 allows users to access two DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1922 provides three convenient switching methods - using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation. The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a print server, modem splitter, etc. With its rich feature set, the CS1922 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1922 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience. More from the Manufacturer |
| Product Type | KM Switchbox |
| Product Name | 2-Port USB 3.0 4K DisplayPort KVMP Switch |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1922 |
| Product Model | CS1922 |
| Packaged Quantity | 1 |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
