aten
ATEN CS1922A 2-Port USB 3.0 8K DisplayPort KVMP Switch
(No reviews yet)
Write a Review
- SKU:
- 21482874
- MPN:
- cs1922a
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/04/2026 11:51:55 PM PST
- Stock Update:
- 06/04/2026 11:51:55 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

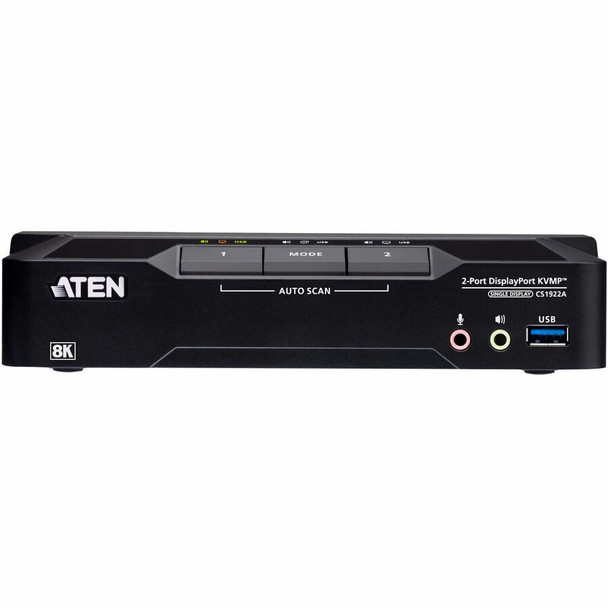

ATEN CS1922A 2-Port USB 3.0 8K DisplayPort KVM Switch, Control 2 Computers with 1 Monitor, Keyboard, Mouse, 8K@60Hz, 4K@120Hz, HotKey, Push Button, Remote Port or RS-232 Switching, Cables Included- Superior video quality up to 7680 4320 @ 60 Hz, 5120 2880 @ 60 Hz and 4096 2160 @ 120 Hz. One USB keyboard and mouse control two DisplayPort computers and share two USB peripherals
- Computer selection via pushbuttons, remote port selector, hotkeys, mouse, and RS-232 commands. DisplayPort 1.4 compliant; HDCP compliant, supports DisplayPort Dual-Mode technology (DP++), and MST (Multi-Stream Transport)
- Independent switching of KVM, USB, and Audio. Supports Console keyboard/mouse emulation/bypass feature
- Power-on detection automatically switches to the next active computer.
- Firmware upgradable. Multiplatform support Windows, Mac, and Linux. Plug and play
- Item Dimensions: 7.87 x 2.87 x 1.69 inches
- Unit Count: 1.0 Count
- Number of Items: 1
- Brand Name: ATEN
- Model: CS1922A-AT-A
- Manufacturer: ATEN
- UPC: 672792017049
ATEN CS1922A 2-Port USB 3.0 8K DisplayPort KVM Switch, Control 2 Computers with 1 monitor, keyboard, mouse, 8K@60Hz, 4K@120Hz, HotKey, push button, remote port or RS-232 switching, Cables included. Product Requirements: Console : A DisplayPort monitor capable of the highest possible resolution, A USB mouse, A USB keyboard, Microphone and speakers, Computers : The following equipment must be available on each computer: One DisplayPort port, A USB Type-A port, Audio ports Operating Systems: Windows 10, Windows 11, macOS 10.15+, Linux, Cables : To guarantee video quality, we recommend using only ATEN DisplayPort KVM cables. Two (CS1922A) or four (CS1924A) cables are provided with this package.
Package Contents:
- CS1922A 2-Port USB 3.0 8K DisplayPort KVMP Switch
- 2 x DisplayPort Cables (1.5 m/5 ft)
- 2 x USB Type-A to Type-B Cables (USB 3.0-A to USB 3.0-B; 1.8 m/6 ft)
- 2 x Microphone Cables (1.8 m/6 ft)
- 2 x Speaker Cables (1.8 m/6 ft)
- 1 x Remote Port Selector
- 1 x Power Adapter
- 1 x User Instructions
Features
Package Contents:
- CS1922A 2-Port USB 3.0 8K DisplayPort KVMP Switch
- 2 x DisplayPort Cables (1.5 m/5 ft)
- 2 x USB Type-A to Type-B Cables (USB 3.0-A to USB 3.0-B; 1.8 m/6 ft)
- 2 x Microphone Cables (1.8 m/6 ft)
- 2 x Speaker Cables (1.8 m/6 ft)
- 1 x Remote Port Selector
- 1 x Power Adapter
- 1 x User Instructions
Compatibility:
- Audio / Video Connectivity: VC986B, VC925
- KVM Extenders: CE924, CE980, CE990, KX9970R, KX9970T, CE920
- Video Extenders: VE901T, VE901R, VB905, VE901
- Video Splitters: VS192
- DisplayPort Cables: 2L-7D02DP, 2L-7D03DP-1, 2L-7D03DP, 2L-7D04DP
- Desktop KVM Switches: CS1924A, CS1942DPA, CS1944DPA
Specs
| Power Description | |
| Input Voltage Range | 12 V DC |
| Physical Characteristics | |
| Weight (Approximate) | 1.04 lb |
| Length | 7.87" |
| Height | 1.7" |
| Width | 2.9" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Number of USB Ports | 6 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 3 |
| USB | Yes |
| DisplayPort | Yes |
| USB 2.0 | Yes |
| Number of Network (RJ-45) Ports | 1 |
| USB Standard |
|
| Video | |
| Maximum Video Resolution | 7680 x 4320 |
| Graphic Mode | 8K |
| General Information | |
| Brand Name | ATEN |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | Built on ATEN's enterprise-grade design heritage, the CS1922A belongs to ATEN's first KVM switch series with 8K support, delivering professional-grade performance and reliable multi-computer control from a single console. Ultra-High Resolution for Versatile Professional Applications The CS1922A delivers up to 8K@60 Hz and 4K@120 Hz, providing precise, clear visuals for demanding tasks. It enables users to control multiple computers from a single console, supporting efficient multitasking and high-resolution workflows while keeping the workspace clean and organized. Multi-Display Expansion and Broad Display Compatibility Daisy-chaining further allows multi-display setups using a single keyboard and mouse, streamlining multi-screen workflows and enhancing productivity for complex tasks. With DisplayPort Dual-Mode (DP++) support, the switch can connect to HDMI or DVI displays via compatible adapters, expanding compatibility with a wide range of monitors. Flexible and Intuitive Switching for Efficient Workflows Multiple switching methods, including front panel pushbuttons, a remote port selector, hotkeys, mouse switching, and RS-232 commands, allow users to control connected computers seamlessly. This flexibility enables fast, efficient workflow management tailored to individual preferences, ensuring smooth transitions between multiple systems. Efficient Peripheral Sharing and Easy Installation The integrated USB 3.1 Gen 1 hub provides 5 Gbps data transfer speeds, enabling fast sharing of peripherals between connected computers. All required DisplayPort and USB cables, along with a power adapter, are included for quick, plug-and-play setup, helping users maintain a clean, organized, and fully functional workspace from the start. |
| Product Type | KVM Switchbox |
| Product Name | 2-Port USB 3.0 8K DisplayPort KVMP Switch (Cables included) |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1922A |
| Product Model | CS1922A |
| Technical Information | |
| Number of Computers Supported | 2 |
| Maximum Data Transfer Rate | 640 MB/s |
| Features | LED Indicator |
| Connectivity Technology | Wired |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
ATEN CS1922A 2-Port USB 3.0 8K DisplayPort KVMP Switch
$231.09
