ATEN DisplayPort HDBaseT-Lite Extender [4K@40m; 1080p@70m] (ve901)
- SKU:
- 18366439
- MPN:
- ve901
- Availability:
- Usually ships in 1-2 business days. In stock at our IL, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 08/02/2026 12:30:12 AM PST
- Stock Update:
- 08/02/2026 12:30:12 AM PST
Description
This item is brand-new, factory sealed.

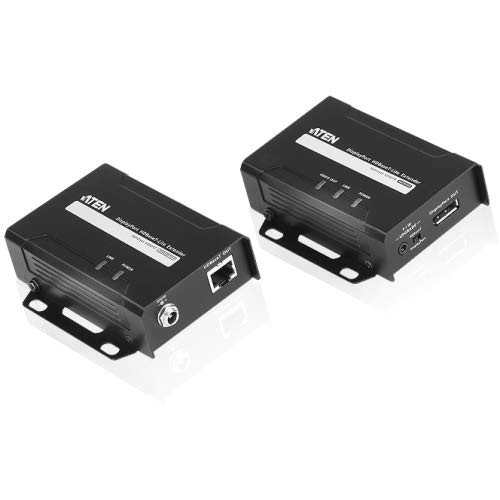

DisplayPort HDBaseT-Lite Extender (4K@40m; 1080p@70m)New
VE901
The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6 / 6a cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE901 DisplayPort HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901 can be installed in a multitude of locations while ensuring peace of mind with its reliability.
Package Contents:
- 1 x VE901T DisplayPort HDBaseT-Lite Transmitter
- 1 x VE901R DisplayPort HDBaseT-Lite Receiver
- 2 x 0AD6-1F05-26EG Power Adapters
- 1 x User Instructions
Features
- 1 x VE901T DisplayPort HDBaseT-Lite Transmitter
- 1 x VE901R DisplayPort HDBaseT-Lite Receiver
- 2 x 0AD6-1F05-26EG Power Adapters
- 1 x User Instructions
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 1.12 lb |
| Transmitter Depth | 3.96" |
| Transmitter Height | 1.18" |
| Transmitter Width | 3.43" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | ATEN |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | DisplayPort HDBaseT-Lite Extender (4K@40m; 1080p@70m)New VE901 The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6 / 6a cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation. The VE901 DisplayPort HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901 can be installed in a multitude of locations while ensuring peace of mind with its reliability. More from the Manufacturer |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | DisplayPort HDBaseT-Lite Extender (4K@40m; 1080p@70m) |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE901 |
| Product Model | VE901 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6a |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 229.66 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
