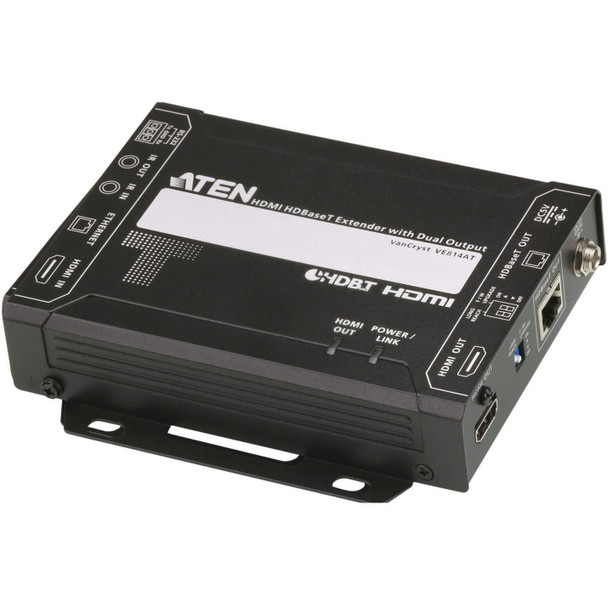

ATEN HDMI HDBaseT Transmitter with Dual Output [4K@100m] [HDBaseT Class A] (ve814at)
- SKU:
- 18870994
- MPN:
- ve814at
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, MS warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/14/2026 04:43:22 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 or above | and pay only $338.21 each 338.21 |
- Stock Update:
- 04/14/2026 04:43:22 PM PST
Description
This item is brand-new, factory sealed.
ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

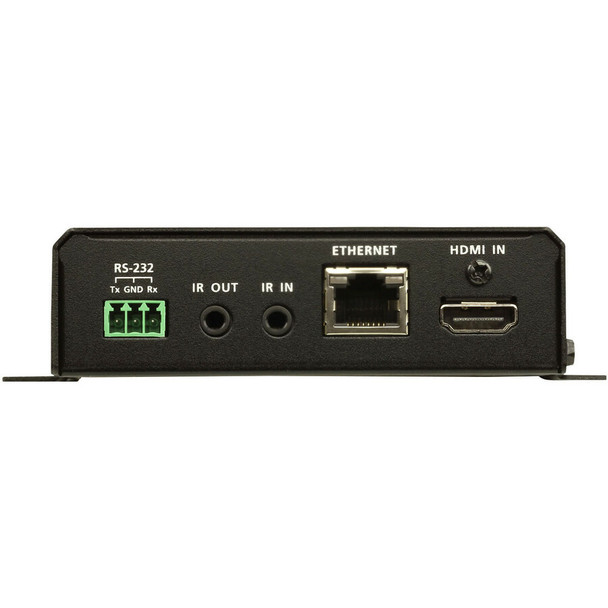

The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
Package Contents:
- HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)
- 1 x RS-232 Terminal Block
- 1 x Power Adapter
- 1 x User Instructions
Features
- HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)
- 1 x RS-232 Terminal Block
- 1 x Power Adapter
- 1 x User Instructions
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 15.87 oz |
| Transmitter Depth | 5.35" |
| Transmitter Height | 1.14" |
| Transmitter Width | 3.98" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | ATEN |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m. The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable. The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots. |
| Product Type | Video Extender Transmitter |
| Product Name | HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A) |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE814AT |
| Product Model | VE814AT |
| Product Line | VanCryst |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6a |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 492.13 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
