Aten Ve812r Hdmi Over Single Cat 5 Receiver - 1 Output Device - 328.08 Ft Range - 1 X Network [rj-45] (152608)
(No reviews yet)
Write a Review
- SKU:
- 18532060
- MPN:
- 152608
- Availability:
- Out of stock
- Stock Update:
- 07/25/2026 11:27:23 PM PST
- Stock Update:
- 07/25/2026 11:27:23 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

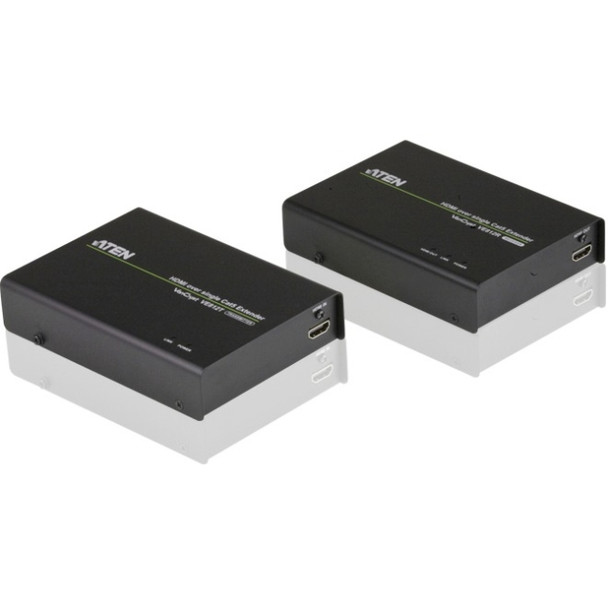

The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality. Connectors
HDMI In:N/A
HDMI Out:1 x HDMI Type A Female (Black)
Line In/Out:1 x RJ-45 Female (Silver)
Power:1 x DC Jack (Black) LEDs
Power/Link:1 (Green)
HDMI Out:1 (Green)
Video
4k x 2k, 1080p at 60Hz at 100m Power Consumption
DC5.3V, 4.5W
Housing
Metal Item Dimension (L"xW"xH"):
9.4 x 2.3 x 6.3
Weight:
1.1 lb
Warranty Information:
3 Years
Package Contents:
- VE812R HDMI Over Single Cat 5 Receiver
- 1 x Power Adapter
- 1 x Mounting Kit
- 1 x User Instructions
Features
Package Contents:
Yes
Taiwan
- VE812R HDMI Over Single Cat 5 Receiver
- 1 x Power Adapter
- 1 x Mounting Kit
- 1 x User Instructions
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage | 5.3 V DC |
| Physical Characteristics | |
| Product Material | Metal |
| Receiver Width | 4.06" |
| Receiver Height | 1.18" |
| Length | 5.6" |
| Receiver Weight (Approximate) | 15.17 oz |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | ATEN |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective. The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display. The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality. |
| Product Type | Video Extender Receiver |
| Product Name | VE812R HDMI Over Single Cat 5 Receiver |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE812R |
| Product Model | VE812R |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 5e |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 328.08 ft |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
