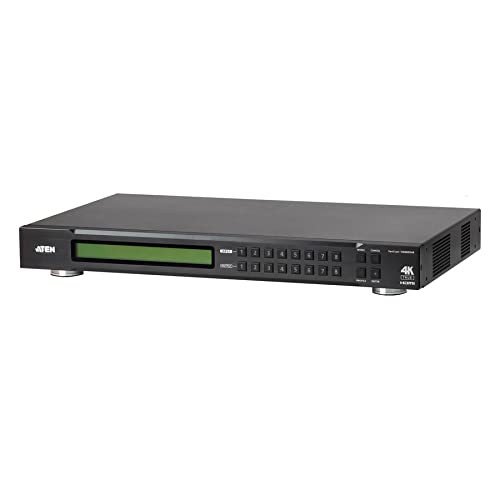

ATEN VM0808HB 8 x 8 True 4K HDMI Matrix Switch-TAA Compliant
(No reviews yet)
Write a Review
- SKU:
- 19180912
- MPN:
- vm0808hb
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/09/2026 11:25:11 PM PST
- Stock Update:
- 10/09/2026 11:25:11 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
ATEN VM0808HB 8 x 8 True 4K HDMI Matrix Switch-TAA Compliant- Connects any of 8 HDMI sources to any of 8 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Multiple Control Methods - system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
- EDID Expert - selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Signaling rates up to 6 Gbits for flawless true 4K output
- Brand: ?ATEN
- Item model number: ?VM0808HB
- Item Weight: ?12.59 pounds
- Product Dimensions: ?5.47 x 3.46 x 1.13 inches
- Item Dimensions LxWxH: ?5.47 x 3.46 x 1.13 inches
- Manufacturer: ?ATEN TECHNOLOGIES
Atens VM0808HB is a true 4K HDMI Matrix switch Series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays.
Package Contents:
- VM0808HB 8 x 8 True 4K HDMI Matrix Switch
- 1 x Power Cord
- 1 x IR Remote Control
- 1 x IR Receiver
- 1 x Rack Mounting Kit
- 1 x User Instructions
Features
Package Contents:
Yes
CCTV System
Taiwan
- VM0808HB 8 x 8 True 4K HDMI Matrix Switch
- 1 x Power Cord
- 1 x IR Remote Control
- 1 x IR Receiver
- 1 x Rack Mounting Kit
- 1 x User Instructions
Environmentally Friendly:
Yes
Application/Usage:
CCTV System
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 12.59 lb |
| Height | 1.7" |
| Width | 17" |
| Depth | 10.3" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| HDMI Out | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 8 |
| HDMI In | Yes |
| Number of HDMI Outputs | 8 |
| Connectivity (RJ-45) | Yes |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | ATEN |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | ATEN's VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more. The intuitive GUI design of the VM0808HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0808HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime. |
| Product Type | Audio/Video Switchbox |
| Product Name | VM0808HB 8 x 8 True 4K HDMI Matrix Switch |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VM0808HB |
| Product Model | VM0808HB |
| Product Line | VanCryst |
| Packaged Quantity | 1 |
| Media & Performance | |
| Maximum Operating Distance | 49.21 ft |
| Technical Information | |
| Number of Displays Supported | 8 |
| Number of Input Devices Supported | 8 |
| Device Supported |
|
| Connectivity Technology | Cable |
