Audix 0073-0011 Antenna Distribution System - Wireless Microphone Accessory
(No reviews yet)
Write a Review
- SKU:
- 19193692
- MPN:
- 0073-0011
- Availability:
- Out of stock
- Stock Update:
- 09/11/2023 01:02:29 PM PST
- Stock Update:
- 09/11/2023 01:02:29 PM PST
Description
This item is brand-new, factory sealed.

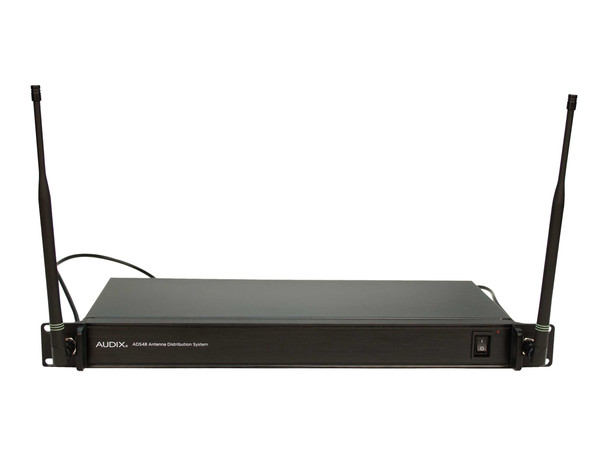

Audix ADS48 Antenna Distribution System - Combines 4 - Two Channel Systems (8 Channels)- The Audix ADS48 is a wide range UHF antenna distribution system that combines up to four wireless systems to be able to run off a single pair of antennas and power supply
- The ADS48 has an internal switching power supply which eliminates the need for the individual DC power supplies normally needed for each receiver
- Rf signals are internally amplified in order to compensate for any loss that may result from splitting the signal
- When used in conjunction with the AP42 or AP62 two channel systems, The ADS48 is able to run 8 channels of wireless on a single pair of antennas and power supply take up only 5 rack spaces
- Product Dimensions: 23.5 x 16.75 x 3.3 inches
- Item Weight: 8.24 pounds
The Audix ADS48 is a wide range UHF antenna distribution system that combines up to four wireless systems to be able to run off a single pair of antennas and power supply. The ADS48 has an internal switching power supply which eliminates the need for the individual DC power supplies normally needed for each receiver. Rf signals are internally amplified in order to compensate for any loss that may result from splitting the signal. When used in conjunction with the AP42 or AP62 two channel systems, The ADS48 is able to run 8 channels of wireless on a single pair of antennas and power supply take up only 5 rack spaces. Download full spec Sheet.
Package Contents:
- ADS48 UHF Antenna Distribution System
- 2 x Antennas
- 1 x IEC power cable
- 4 x Power Jumper Cables to provide power to individual receivers
- 8 x BNC-to-BNC Coaxial Cables for pass through connection for up to 4 additional receivers (single or dual)
- 2 x Coaxial cables for front mounting antennas -
Features
Package Contents:
China
- ADS48 UHF Antenna Distribution System
- 2 x Antennas
- 1 x IEC power cable
- 4 x Power Jumper Cables to provide power to individual receivers
- 8 x BNC-to-BNC Coaxial Cables for pass through connection for up to 4 additional receivers (single or dual)
- 2 x Coaxial cables for front mounting antennas -
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Weight (Approximate) | 4.74 lb |
| Height | 1.8" |
| Width | 18.9" |
| Depth | 9.8" |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| BNC Out | Yes |
| BNC In | Yes |
| Number of BNC Outputs | 8 |
| Number of BNC Inputs | 2 |
| General Information | |
| Brand Name | Audix |
| Manufacturer Website Address | http://www.audixusa.com |
| Marketing Information | The Audix ADS48 is a wide range UHF antenna distribution system that combines up to four wireless systems to be able to run off a single pair of antennas and power supply. The ADS48 has an internal switching power supply which eliminates the need for the individual DC power supplies normally needed for each receiver. RF signals are internally amplified in order to compensate for any loss that may result from splitting the signal. |
| Product Type | Audio Distribution Amplifier |
| Product Name | ADS48 UHF Antenna Distribution System |
| Manufacturer | Audix Microphones |
| Manufacturer Part Number | ADS48 |
| Product Model | ADS48 |
| Packaged Quantity | 1 |
| Technical Information | |
| Maximum Frequency | 900 MHz |
| Minimum Frequency | 470 MHz |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
