AXIS I5304 Network Answering Unit (03239-001)
- SKU:
- 21251561
- MPN:
- 03239-001
- Availability:
- Usually ships the same or next business day. In stock at our CA, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 09/21/2026 03:47:30 AM PST
- Stock Update:
- 09/21/2026 03:47:30 AM PST
Description
This item is brand-new, factory sealed.

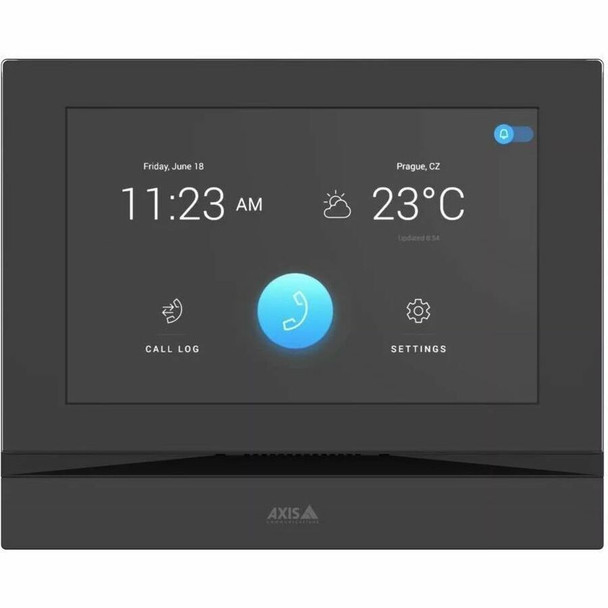

This sleek IP phone allows receptionists and concierges to efficiently respond to calls from IP intercoms. It combines visual verification with clear, two-way communication so you can both see and hear who's at the door.
Extra security at the door
Designed to work with Axis, 2N, and third-party intercoms, AXIS I5304 Answering Unit lets you hear and see your visitors, adding extra security at the door. It features a 7" touch screen to display high-quality video for reliable visual verification. Plus, two-way communication allows you to hear the conversation clearly.
Easy to use
Ideal for office and commercial use, AXIS I5304 Answering Unit makes life easier for receptionists and concierges. They can quickly and efficiently respond to calls from IP intercoms at the door. And with fast touch response, they can quickly open the door by simply touching a button on the display. This IP phone also displays a preview of the intercom's camera. Furthermore, with a modern, sleek design, it's available in both black and white.
Quick and flexible installation
AXIS I5304 ensures secure installation. With support for PoE, it requires just one cable for both power and connectivity so you can connect it directly to your network. And you can place it wherever you want-on a reception desk or mounted on walls or recessed mounted using accessories.
Package Contents:
- I5304 Network Answering Unit
- Installation Guide
- Certificate of Ownership
- 2.5 mm Hexagon Key Wrench
- Terminal Block Connectors for Power and Doorbell
Features
- I5304 Network Answering Unit
- Installation Guide
- Certificate of Ownership
- 2.5 mm Hexagon Key Wrench
- Terminal Block Connectors for Power and Doorbell
Certifications & Standards:
- CSA
- UL/cUL
- CE
- VCCI
- RCM
- EN 55035
- EN 55032 Class B
- FCC Part 15 Subpart B Class B
- CAN/CSA C22.2 No. 62368-1 ed. 3
- IEC/EN/UL 62368-1 ed. 3
TAA Compliant:
Yes
Additional Information:
Control technology:
Capacitive touch panel
Features:
- Receive incoming calls
- Start outgoing calls
- View video from connected network intercoms and cameras
- Send HTTP commands
- Unlock Doors
Audio streaming:
Echo cancellation
Audio input:
Built-in microphone
Audio output:
- Built-in speaker
- Anechoic chamber: 84 dBC @ 1m 1 kHz
- Line out for hearing loop, 600 mV RMS
Audio encoding
G.711, G722, G.729, L16/16 kHz
Video | Video compression
- H.264 (MPEG-4 Part 10/AVC)
- Motion JPEG
Resolution
Up to 1280x720
Frame rate
Up to 30 fps
Network protocols:
IPv4, HTTP, HTTPS1,SIP 2.0, SIPS, SSL/TLS1,RTP, SRTP,RTSP, DHCP, NTP, TCP, IGMP, UDP, DNS, Syslog, FTP,SMTP, SNMP v1/v2c/v3 (MIB-II), RTCP, ICMP, DHCPv4
VoIP
- Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX.
- Supported SIP features: DTMF (audio, RFC2833, RFC2976)
Network security:
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)1 , HTTPS1 , TLS v1.21 , X.509 Certificate PKI
Connectors Network:
RJ45 10BASE-T/100BASE-T PoE Doorbell input: Switching contact (button/relay), normally open
Operating conditions:
- Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Humidity: 10-90% RH (non-condensing)
- Altitude: 0 to 2000 m (0 to 6500 ft)
Storage conditions:
- Temperature: -20 °C to 70 °C (-4 °F to 158 °F)
- Humidity: 10-90% RH (non-condensing)
Application/Usage:
Office
Commercial Building
Intercom System
Door Entry
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Specs
| Power Description | |
| Input Voltage | 12 V DC |
| Power Consumption | 2.90 W |
| Physical Characteristics | |
| Product Material |
|
| Weight (Approximate) | 1.22 lb |
| Product Color | Black |
| Height | 6.2" |
| Color Family | Black |
| Width | 7.6" |
| Depth | 2" |
| Warranty | |
| Limited Warranty | 5 Year |
| Display & Graphics | |
| Touchscreen | Yes |
| Screen Resolution | 1024 x 600 |
| Screen Size | 7" |
| Display Screen Type | LCD |
| General Information | |
| Brand Name | AXIS |
| Manufacturer Website Address | http://www.axis.com |
| Marketing Information | This sleek IP phone allows receptionists and concierges to efficiently respond to calls from IP intercoms. It combines visual verification with clear, two-way communication so you can both see and hear who's at the door. Extra security at the door Designed to work with Axis, 2N, and third-party intercoms, AXIS I5304 Answering Unit lets you hear and see your visitors, adding extra security at the door. It features a 7" touch screen to display high-quality video for reliable visual verification. Plus, two-way communication allows you to hear the conversation clearly. Easy to use Ideal for office and commercial use, AXIS I5304 Answering Unit makes life easier for receptionists and concierges. They can quickly and efficiently respond to calls from IP intercoms at the door. And with fast touch response, they can quickly open the door by simply touching a button on the display. This IP phone also displays a preview of the intercom's camera. Furthermore, with a modern, sleek design, it's available in both black and white. Quick and flexible installation AXIS I5304 ensures secure installation. With support for PoE, it requires just one cable for both power and connectivity so you can connect it directly to your network. And you can place it wherever you want-on a reception desk or mounted on walls or recessed mounted using accessories. |
| Product Type | Video Door Phone Sub Station |
| Product Name | I5304 Network Answering Unit |
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 03239-001 |
| Product Model | I5304 |
| Technical Information | |
| Communication Mode | Full-duplex |
