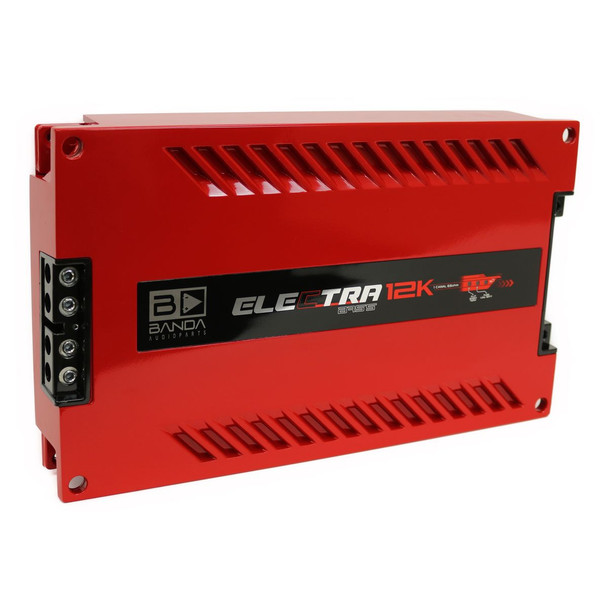

Banda 12K.5OHMRED 12k Bass 5ohm Car Amp (red) 12K.5OHMRED

This item is brand-new, factory sealed.

The ELECTRA line was developed especially for those looking for an incomparable bass. It has a frequency response of 5 to 500Hz (-3dBs). Because of this. ELECTRA will only play Subwoofers. Bass. The BASS BOOST @ 45Hz feature is a differentiator. further reinforcing the bass of your system. * Designed on a 100% aluminum chassis. it works with 12000 WRMS power with 1 channel input for connection and 1 Ohm impedance. It has very low harmonic distortion (less than 1%) and Clipping indicator. forced ventilation and short circuit protection. * Maximum Power 14.4v @ 0.5 Ohm: 14200 WRMS * Maximum Power 14.4v @ 1 Ohm: 10300 WRMS * Maximum Power 12.6v @ 0.5 Ohm: 12600 WRMS * Maximum Power 12.6v @ 1 Ohm: 9200 WRMS * Efficiency @ 1 Ohm: 82% * Efficiency @ 0.5 Ohm: 76% * Input Voltage: 9 - 15V * Input Impedance: 100K Ohms * THD+N: <1% * Input Sensitivity: 180mV to 2.5V * Noise Signal Ratio: 85dB * Frequency Response: 20Hz to 600Hz (-3dB) * Bass Boost @ 45Hz: Variable from 0 to +18dB * HPF (Subsonic): 20 - 80Hz @ 12dB/eighth Linkwitz-Riley * LPF (Crossover): 80 - 600Hz @ 12dB/eighth Linkwitz-Riley * Recommended Fuse: 600A * Resting Current: ~4.0A * Maximum Current (sine signal): 1380 A * Maximum Current (musical signal): 600 A * Power cables (min recommended): 2x 50mm / 2x 0 AWG * Output Cables (recommended min): 2x 10mm / 2x 6 AWG * Weight: 18.07 lbs (8.2Kg) * Height: 2.3-in (60 mm) * Width: 10-in (264 mm) * Depth: 17-in (443 mm)
