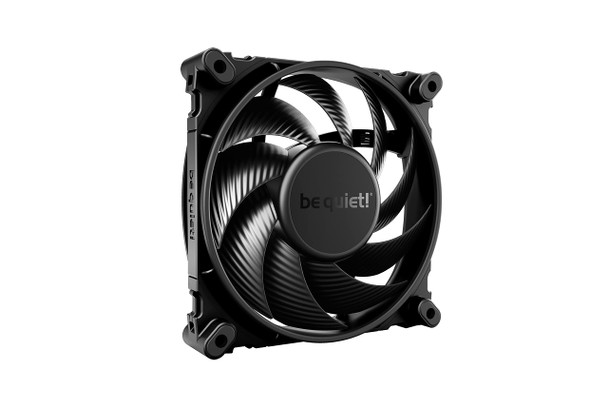

be quiet! BL094 Silent Wings 4 - Case Fan

This item is brand-new, factory sealed.

SILENT WINGS 4
120mm PWM HS
No compromise silence and performance
Silent Wings 4 120mm PWM high-speed combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.
Optimized fan blades for the highest performance on radiators and heat sinks
Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
Very silent operation even at maximum speed
6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
Anti-vibration mounting with push pins and screwed installation option
Super-long lifespan of up to 300,000h
Elegant look with high-grade fan sticker in an all-black design
5-year manufacturer warranty
NO COMPROMISE SILENCE AND PERFORMANCE
Equally quiet and performant operation
Silent Wings 4 120mm PWM high-speed is the fan of choice for all possible operations. Be it in a case, on radiators or heat sinks - Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 120mm PWM high-speed a fan that makes no compromises between very quiet operation and highest performance.
NO COMPROMISE SILENCE AND PERFORMANCE
Equally quiet and performant operation
Silent Wings 4 120mm PWM high-speed is the fan of choice for all possible operations. Be it in a case, on radiators or heat sinks Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 120mm PWM high-speed a fan that makes no compromises between very quiet operation and highest performance.General data
Model
Silent Wings 4 120mm PWM high-speed
Dimensions (mm)
120
Color option
Black
Lighting
-
Fan speed at 100% PWM / 12V (rpm)
2500
Noise level at 100% PWM / 12V (dB(A))
31.2
Airflow at 100% PWM / 12V (CFM / m3/h)
76.7 / 130.3
Air Pressure at 100% PWM / 12V (mm H2O)
3.96Mechanical specifications
Bearing technology
FDB
Motor technology
6-pole fan motor
Push pin fixing
Yes
Screw fixing
YesCables / Connectors
Daisy-chain compatible
-
Lighting connector
-
Connector
4-pin PWM
Cable length (mm)
500
Cable sleeve
YesPerformance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h)
76.7 / 130.3
Air Pressure at 100% PWM / 12V (mm H2O)
3.96
Noise level at 100% PWM / 12V (dB(A))
31.2
Lifespan (h / 25^oC)
300,000
Zero RPM mode
YesElectrical specifications
Rated Voltage DC (V)
12
Operating Voltage DC (V)
5 - 13.2
Input current (A)
0.20
Safety current (A)
0.20
Input power (W)
2.4
Rated Current LED (A)
-Accessories
3-pin to 4-pin 12V-connector
-
12V to 7V adapter
-
12V to 5V adapter
-
Screws
4
Push pins
4
hard plastic washer
4
Others
Rubber and hard plastic mountingsSafety certification
Approvals
CE / UL / UKCA / TVEnvironmental directives
RoHS
Yes
WEEE
Yes
Triman
YesItem Dimension (L"xW"xH")
8 x 6 x 2

Weight
1 lb

Warranty Information
5 year
