Be Quiet BL106 Ch bl106 R

This item is brand-new, factory sealed.

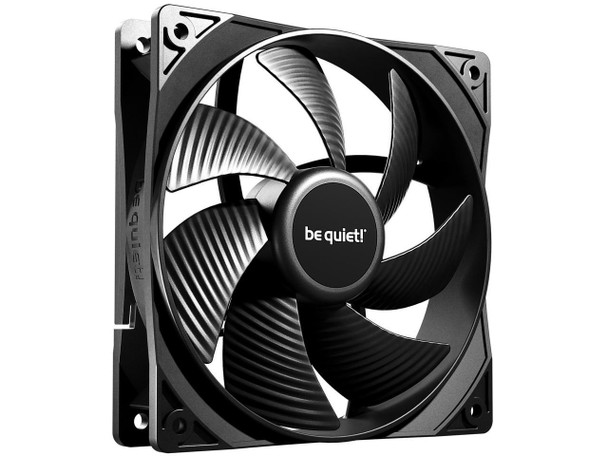

PURE WINGS 3
120mm PWM HS
Performant, progressive, quiet
Pure Wings 3 120mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor.
Innovative closed loop motor keeps the rpm no matter the air resistance
Optimized fan frame for outstanding performance on radiators
Newly designed fan blades and re-arranged angle for extraordinary air pressure
Pure Wings 3 120mm PWM high-speed can be operated with very low minimum rpm for very quiet operation
Long life rifle bearing gives an operating lifetime of 80,000 hours
Product conception, design and quality control in Germany
INNOVATIVE TECHNOLOGY
Closed loop motor for persistent rpm
Pure Wings 3 120mm PWM high-speed features a closed loop motor. This technology is comparable with the cruise control in cars. When working against resistance, for example a fan grill or radiator, fans spin slower as a result. The closed loop motor technology constantly monitors the current fan speed and increases it to the target rpm, if necessary. As a result, Pure Wings 3 120mm PWM high-speed always operates at the desired speed, no matter the air resistance.
OPTIMIZED TO THE MAX
For unprecedented air pressure in its class
The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 120mm PWM high-speed. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 120mm PWM high-speed.General data
Model
Pure Wings 3 120mm PWM high-speed
Dimensions (mm)
120
Color option
Black
Lighting
-
Fan speed at 100% PWM / 12V (rpm)
2100
Noise level at 100% PWM / 12V (dB(A))
30.9
Airflow at 100% PWM / 12V (CFM / m3/h)
59.6 / 101.2
Air Pressure at 100% PWM / 12V (mm H2O)
2.41Mechanical specifications
Bearing technology
Rifle
Motor technology
4-pole fan motor
Push pin fixing
-
Screw fixing
YesCables / Connectors
Daisy-chain compatible
-
Lighting connector
-
Connector
4-pin PWM
Cable length (mm)
460
Cable sleeve
-Performance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h)
59.6 / 101.2
Air Pressure at 100% PWM / 12V (mm H2O)
2.41
Noise level at 100% PWM / 12V (dB(A))
30.9
Lifespan (h / 25^oC)
80,000
Zero RPM mode
-Electrical specifications
Rated Voltage DC (V)
12
Operating Voltage DC (V)
5 - 13.2
Input current (A)
0.13
Safety current (A)
0.30
Input power (W)
3.6
Rated Current LED (A)
-Accessories
3-pin to 4-pin 12V-connector
-
12V to 7V adapter
-
12V to 5V adapter
-
Screws
4
Push pins
-
hard plastic washer
-
Others
-Safety certification
Approvals
CE / RoHS / RU / UKCA / WEEEEnvironmental directives
RoHS
Yes
WEEE
Yes
Triman
YesItem Dimension (L"xW"xH")
7 x 5 x 2

Weight
1 lb

Warranty Information
3 year
