Black Box Network Services

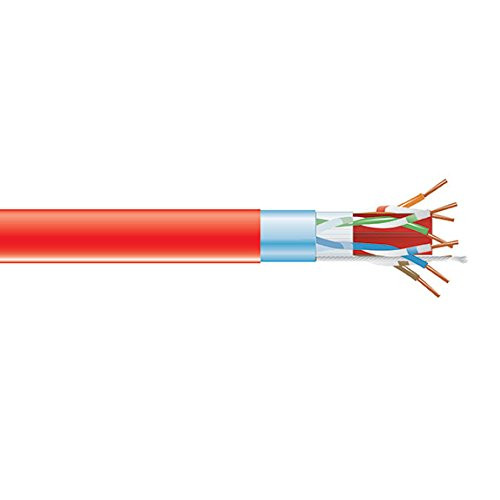

Black Box CAT6A 500-MHz Bulk Cable - F/UTP, Plenum, Solid, Red, 1000-ft. (c6abc51s-rd-1000)
(No reviews yet)
Write a Review
- SKU:
- 18148743
- MPN:
- c6abc51s-rd-1000
- Availability:
- Out of stock
- Shipping:
- $335.05 (Fixed Shipping Cost)
- Stock Update:
- 03/27/2023 04:38:20 PM PST
- Stock Update:
- 03/27/2023 04:38:20 PM PST
Description
This item is brand-new, factory sealed.
Black Box CAT6A 650-MHz Solid Bulk Cable F/UTP CMP Plenum RD 1000FT Spool- Use with Black Box; CAT6A components for a 10GBASE-T channel.
- Tested up to 500 MHz.
- Foil shield construction virtually eliminates alien crosstalk.
- A center isolation member maintains pair separation for optimal NEXT performance.
- Supports IEEE 802.3 and 10GBASE-T, and TIA 568-C.2. ETL tested.
- Product Dimensions: 57 x 57 x 57 inches
- Item Weight: 57 pounds
A center isolation member maintains pair separation for optimal NEXT performance. Construction: Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar 174 tape. Smaller outside diameter than normal; CAT6A UTP. (0.271)
Features
Environmental Certification:
RoHS
Yes
Yes
Taiwan
RoHS
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Product Material | Bare Copper |
| Insulation Material | Fluorinated Ethylene Propylene (FEP) |
| Weight (Approximate) | 48.30 lb |
| Shielding Material | Aluminum Mylar Foil |
| Product Color | Red |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Material Details | bare copper conductor |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | Black Box |
| Package Type | Bulk |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Black Box CAT6A 650-MHz Solid Ethernet Bulk Shielded Cable provides transmission performance beyond 650MHz exceeding the industry standards and ETL Verified for supporting the operation of 10Gig Ethernet applications (10GBASE-T). This cabling provides support for high-bandwidth applications such as data centers and other data-intensive or backbone requirements. PREMIUM CABLING SOLUTION CONSTRUCTED TO EXCEED CAT6A INDUSTRY STANDARDS TESTED TO 650MHZ, SURPASSING THE CAT6A INDUSTRY STANDARD OF 500MHZ CMP RATED JACKETING FOR USE IN DUCTS, PLENUMS, AND SPACES USED FOR ENVIRONMENTAL AIR SOLID WIRE PROVIDES LESS FLEXIBILITY BUT BETTER ELECTRICAL CHARACTERISTICS AND LOWER ATTENUATION, MAKING IT IDEAL FOR LONG BACKBONE OR HORIZONTAL/VERTICAL RUNS ETL VERIFIED FOR COMPONENT-LEVEL PERFORMANCE AND AS PART OF OUR CAT6A CHANNEL CONSTRUCTED FROM INTERNAL SEPARATOR, FEP INSULATION, DIELECTRIC TAPE, DRAIN WIRE, ALUMINUM/MYLAR TAPEA CENTER ISOLATION MEMBER MAINTAINS PAIR SEPARATION FOR OPTIMAL NEXT PERFORMANCE CAT6A UTP COMES WITH 0.271" OUTSIDE DIAMETER § TESTED UP TO 650 MHZ FOIL SHIELD CONSTRUCTION VIRTUALLY ELIMINATES ALIEN CROSSTALK SUPPORTS IEEE 802.3 AND 10GBASE-T, AND TIA 568-C.2. ETL TESTED § TAA COMPLIANT |
| Product Type | Network Cable |
| Product Name | GigaTrue Cat.6a (F/UTP) Network Cable |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | C6ABC51S-RD-1000 |
| Product Line | GigaTrue |
| Technical Information | |
| Data Transfer Rate | 10 Gbit/s |
| Cable Type | Category 6a |
| Connector on First End Details | Bare Wire |
| Number of Pairs | 4 |
| Shielding | Yes |
| Device Supported | Network Device |
| Connector on Second End Details | Bare Wire |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Cable Length | 1000 ft |
| Jacket Type |
|
| Features |
|
| American Wire Gauge | 23 AWG |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
