Black Box Emerald™ SE DVI KVM-over-IP Matrix Switch Receiver - Single Head, Full HD DVI, VUSB 2.0, Serial, Audio (emd2000se-r)
- SKU:
- 18384451
- MPN:
- emd2000se-r
- Availability:
- Out of stock
- Stock Update:
- 03/27/2026 01:44:43 PM PST
- Stock Update:
- 03/27/2026 01:44:43 PM PST
Description
This item is brand-new, factory sealed.
High-performance KVM
Emerald SE provides users with a seamless desktop experience anywhere on a TCP/IP network, while allowing the actual hardware to be housed in a corporate data center or in the cloud. The performance of Emerald SE allows an easy deployment on standard corporate networks and even across WANs. The solution enables the same experience of a desktop PC even for media-rich applications, like video and photo editing.

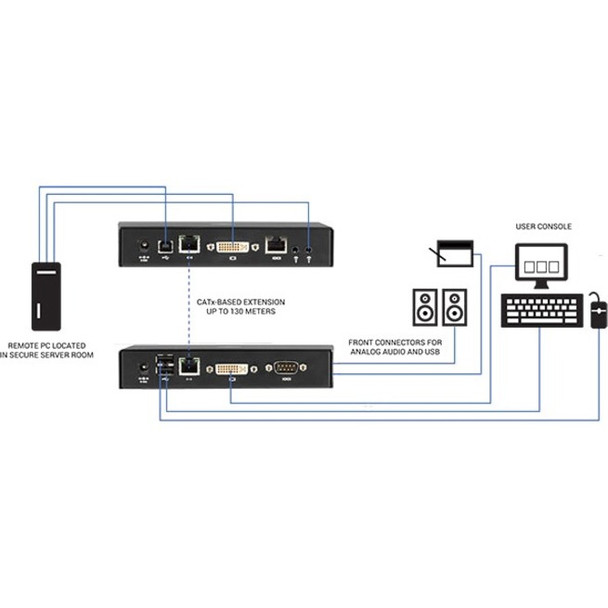

Emerald SE provides Full HD DVI-D with resolutions up to 1920 x 1200, transparent USB, serial and stereo audio. Link them in a point-to-point KVM extension over CATx up to 130 m or even further using an IP or WAN connection. Or Connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup.
Optional upgrade license bundles
The Emerald SE is completely customizable and lets you gradually add new, helpful features to your extenders. The current upgrade license bundle includes:
- Pixel-Perfect Video: Extend and display mathematically lossless video pixel by pixel
- VM Access over PCoIP: Use the PCoIP protocol to access VMs
- Virtual Machine Sharing: Share virtual machine access amongst a group of users
- Bonding: Group multiple transmitters and receivers to provide multi-head support for your workspace
Virtualization support
Emerald SE simplifies access to both physical and virtual servers with high-performance connectivity to virtual machines, supporting VMware®, Microsoft® HyperV® and Citrix®, using RDP 8.1/RemoteFX.
Limitless scaling
Your Emerald KVM network may start small, but it's scalable to meet your future needs just by adding endpoints. Connect up to 32 endpoints, no additional KVM management appliance, cards or chassis required. For larger deployments, use our Boxilla™ KVM management solution.
A welcome addition to the Emerald product family
Emerald SE works seamlessly with the rest of the Emerald product family and these popular Black Box KVM product families:
- DKM proprietary, direct-connect KVM system
- Freedom II Multi-Monitor Switch with Glide-and-Switch technology
- ControlBridge™ our system for one-touch, multisystem control
- Boxilla KVM manager
Package Contents:
- Emerald SE Receiver, Single-Head
- 1 x 5VDC Power Supply
- 1 x US Power Cord
Features
- Emerald SE KVM-over-IP - DVI-D, USB 2.0, Audio, RJ45
- 1 x 5 Vdc Power Supply
- 1 x Power Cord
Certifications & Standards:
- FCC
- CE
TAA Compliant:
Yes
Platform Supported:
PC
Linux
Mac
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin:
Ireland
Specs
| Power Description | |
| Input Voltage Range | 100V AC to 240V AC |
| Frequency |
|
| Input Voltage |
|
| Power Consumption | 6.50 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Receiver Width | 6.20" |
| Receiver Height | 1.15" |
| Receiver Depth | 4.20" |
| Receiver Weight (Approximate) | 1.18 lb |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Microphone | Yes |
| Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Headphone | Yes |
| Number of DVI Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Graphic Mode | WUXGA |
| General Information | |
| Brand Name | Emerald® SE |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Emerald SE - Powering the World's Most Demanding Environments Emerald SE transmitters and receivers deliver visually lossless HD video over standard IP networks. Operators get instant, seamless access to both physical and virtual systems with sub-second switching, flawless video, stereo audio, and transparent USB 2.0 support for mission-critical peripherals. For administrators, Emerald provides centralized, secure management with flexible configuration and always-on reliability. Add the Boxilla Central Manager for enterprise-wide control, and you can scale from a single extender to hundreds or thousands of endpoints across buildings, campuses, or global networks - without forklift upgrades or costly new hardware. Key Capabilities: Scalable by Design Start small - as extenders or a local switchable matrix - and expand into a fully managed enterprise control (KVM) system with Boxilla. Emerald grows with your control room. Enterprise Access, instantly Switch between sources in under half a second across your entire enterprise - buildings, campuses, or WAN - using existing IP infrastructure. Connection folders simplify management across the ecosystem. Outstanding Video, Lossless Quality Emerald SE delivers visually lossless HD DP/DVI video resolutions up to 1920 x 1200 over copper IP networks with mathematically lossless compression. Start with HD today (Interchangeable with Emerald 4K, PE) and migrate to 4K at your own pace. Virtualization Made Simple Seamlessly access VMware, Microsoft, and Citrix environments using RDP, RemoteFX, and PCoIP. No extra hardware. No training curve. Just full control. Standards-Based Networking Emerald runs on standard IEEE 802.3 Ethernet switches - Gigabit for HD, 10G for 4K, with 100G uplinks for large deployments. Built with proven, standards-based hardware from Black Box or your existing infrastructure. Emerald Works with Your Entire Black Box Ecosystem Seamlessly integrate with DKM matrix switching, Freedom II KM switches, ControlBridge room control, and Boxilla centralized management - giving you one unified platform for KVM, AV, and room automation. |
| Product Type | KVM Extender Receiver |
| Product Name | KVM-over-IP - DVI-D, USB 2.0, Audio, RJ45 |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | EMD2000SE-R |
| Product Model | EMD2000SE-R |
| Packaged Quantity | 1 |
| Technical Information | |
| Number of Remote Users Supported | 1 |
| Number of Computers Supported | 1 |
| KVM Technology | Digital |
| Maximum Operating Distance | 328.08 ft |
| Data Link Protocols | TCP/IP |
| Device Type | KVM Extender |
| Connectivity Technology | Wired |
