BlackBox Network Services

Black Box GigaTrue 3 CAT6 550-MHz Lockable Patch Cable [UTP], Green, 10-ft. [3.0-m] (c6pc70-gn-10)

SKU:
18137929
MPN:
c6pc70-gn-10
Availability:
Usually ships the same or next business day. In stock at our IL warehouse.
Shipping:
Calculated at Checkout
Stock Update:
10/04/2022 04:47:41 PM PST
  • Main
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
$19.16

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 and pay only $13.08 each 13.08
Buy 3 and pay only $11.47 each 11.47
Buy 4 - 9 and pay only $10.31 each 10.31
Buy 10 - 19 and pay only $8.51 each 8.51
Buy 20 or above and pay only $7.83 each 7.83
Stock Update:
10/04/2022 04:47:41 PM PST

Description

This item is brand-new, factory sealed.

Black Box Gigatrue3 Cat6 550-MHz Stranded Ethernet Patch Cable - Unshielded, PVC, Locking Snagless, Green, 10-ft
  • Use for all your network connections.
  • Insert the optional locking pin to lock down ports.
  • Cables stay locked in place until you take them out.
  • Brand Name: Black Box
  • Item model number: C6PC70-GN-10
  • Item Weight: 4.3 ounces
  • Product Dimensions: 9 x 9 x 1 inches
  • Item Dimensions L x W x H: 9 x 9 x 1 inches
  • Color: green

These one-of-a-kind cables give you the ability to lock down critical network Ports - when you need to - without buying new Patch cords. Use these premium cables for your everyday network connections. Then, when you need to secure network Ports, you can. Just slip an optional locking pin into the Tab on the patented Lockport Boot. To unplug the cable, release with the removal Key (sold separately).

Features

Certifications & Standards:
  • ANSI/TIA-568-C.2
  • ISO/IEC 11801 Class E
  • UL
  • E196163-Y



Environmental Certification:
RoHS



Environmentally Friendly:
Yes



Country of Origin:
China



Specs

Physical Characteristics
Product ColorGreen
Jacket MaterialPolyvinyl Chloride (PVC)
Warranty
Limited WarrantyLifetime
General Information
Brand NameBlack Box
Manufacturer Website Addresshttp://www.blackbox.com
Marketing InformationPremium Performance
Black Box GigaTrue 3 Premium CAT6 Patch Cables exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video, and PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 specification, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.
These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. The rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison to standard connectors.
Locking Options Available
These cables allow you to lock down critical network ports when required - without buying new patch cords. Secure your network ports by inserting a locking pin (sold separately) into the built-in locking tab on the patented snagless boot. To unplug the cable, release it with the removal key (sold separately).

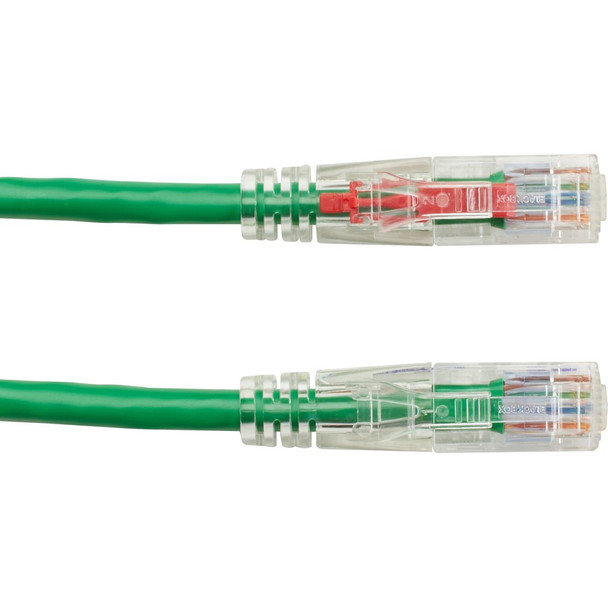

Locked: Red Pin
Prevent unauthorized access to mission-critical and publicly accessible ports in government offices, lobbies, retail establishments, and more. To lock a port, insert the red locking pin into the patented LockPORT boot on the cable. Unlock the port with the LockPORT Locking Pin Removal Tool.
Secured: Green Pin
Prevent accidental disconnects in the office, manufacturing and industrial applications and more. To secure a port, insert the green locking pin into the cable's LockPORT boot. To release the pin, squeeze its butterfly tabs and pull - no removal tool required.
Product TypeNetwork Cable
Product NameGigaTrue 3 Cat.6 UTP Patch Network Cable
ManufacturerBlack Box Corporation
Manufacturer Part NumberC6PC70-GN-10
Product LineGigaTrue 3
Technical Information
Data Transfer Rate1 Gbit/s
Cable TypeCategory 6
Connector on First End Details1 x RJ-45 Network - Male
ShieldingNo
Device Supported
Connector on Second End Details1 x RJ-45 Network - Male
Connector Type on First EndRJ-45 Network - Male
Connector Type on Second EndRJ-45 Network - Male
Contact PlatingGold
Cable Length10 ft
Features
ConductorCopper
Jacket TypeCM
Cable CharacteristicPatch Cable
American Wire Gauge24 AWG
Boot TypeSnagless

View AllClose

Warranty Information

All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
