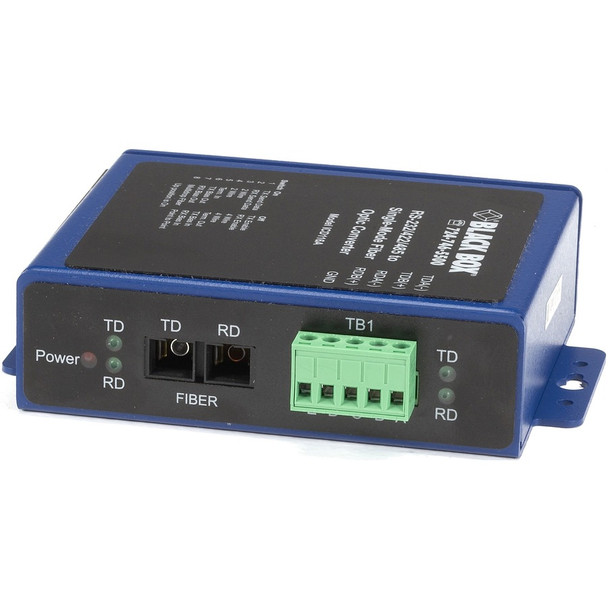

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter (icd116a)
(No reviews yet)
Write a Review
- SKU:
- 18132656
- MPN:
- icd116a
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/01/2026 04:24:02 PM PST
- Stock Update:
- 05/01/2026 04:24:02 PM PST
Description
This item is brand-new, factory sealed.
Meets stringent IEC and IEEE specs.Encased in an IP30-rated enclosure, the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications.
Plus, as a fiber-based conversion and extension device, it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232, RS-422, and RS-485 serial data as far as 15 kilometers (9.3 mi.).
Features
Certifications & Standards:
CE
Yes
Yes
United States
CE
TAA Compliant:
Yes
Additional Information:
Power supply not included. Must be ordered separately.
Environmentally Friendly:
Yes
Country of Origin:
United States
Specs
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Weight (Approximate) | 8 oz |
| Height | 1.3" |
| Width | 3.7" |
| Depth | 5.2" |
| Warranty | |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Total Number of Ports | 2 |
| USB | No |
| Number of SC Ports | 1 |
| DVI | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Management Port | No |
| Parallel Port | No |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Meets stringent IEC and IEEE specs. Encased in an IP30-rated enclosure, the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications. Plus, as a fiber-based conversion and extension device, it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232, RS-422, and RS-485 serial data as far as 15 kilometers (9.3 mi.). |
| Product Type | Transceiver/Media Converter |
| Product Name | Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ICD116A |
| Media & Performance | |
| Maximum Distance Supported | 15 km |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter (icd116a)
$680.64
