Black Box KVM LCD Console Tray - 17" , Single-Rail, Touchpad, LED Backlight, USB, HDMI, DisplayPort, VGA (kvt617a)
- SKU:
- 21511804
- MPN:
- kvt617a
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/12/2026 12:48:47 AM PST
- Stock Update:
- 06/12/2026 12:48:47 AM PST
Description
This item is brand-new, factory sealed.

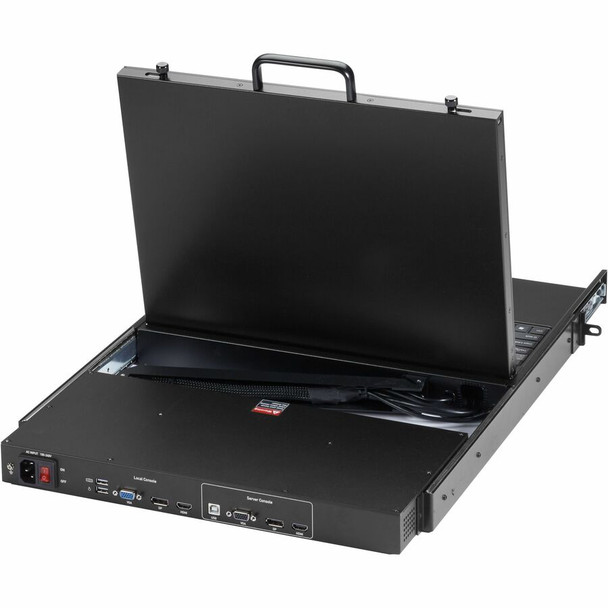

Need to control multiple servers in your equipment rack or network? The Black Box LCD Console Drawer is up to the task! The rack console drawer combines a 17.3" LED-backlit display, keyboard, and touchpad in only 1U of valuable rack space. With built-in USB, HDMI, DisplayPort, and VGA interfaces, it can support a variety of KVM switches for multiple server management. The rack console drawer also provides an extra local console for extended local operations. It's perfect for administering servers in data centers, server rooms, and labs.
State-of-the-Art LCD Panel
The rack console drawer features a power-saving LED backlit 17.3-inch LCD panel.
Flexible Interface
This flexible unit supports USB, VGA, DisplayPort, and HDMI connections to choose your video interface. And a front USB Hub supports USB HID (KB/MS) and storage devices.
High-Resolution
With a video resolution of up to 1920 x 1080 at 60 Hz, 1080p, you experience crisp, clear, viewing.
Embedded Power Supply Fuels the Unit
The drawer features a 12 V, 5.42-A integrated power supply.
Adjusts to Fit Your Cabinet or Rack
The drawer uses its adjustable mounting bracket to fit racks/cabinets 20.5 to 35.8 inches (52 to 91 cm) deep.
Features
PC
Linux
Sun
Specs
| Power Description | |
| Input Voltage Range | 100 VAC to 240 VAC |
| Frequency |
|
| Input Voltage |
|
| Physical Characteristics | |
| Weight (Approximate) | 23.39 lb |
| Height | 1.7" |
| Width | 1.7" |
| Rack Height | 1U |
| Depth | 20.7" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| VGA | Yes |
| Number of USB Ports | 3 |
| Number of HDMI Ports | 2 |
| USB | Yes |
| DisplayPort | Yes |
| Number of VGA Ports | 2 |
| HDMI | Yes |
| Display & Graphics | |
| Screen Resolution | 1920 x 1080 |
| Screen Size | 17.3" |
| Display Screen Type | LCD |
| Screen Mode | Full HD |
| Aspect Ratio | 16:9 |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Need to control multiple servers in your equipment rack or network? The Black Box LCD Console Drawer is up to the task! The rack console drawer combines a 17.3" LED-backlit display, keyboard, and touchpad in only 1U of valuable rack space. With built-in USB, HDMI, DisplayPort, and VGA interfaces, it can support a variety of KVM switches for multiple server management. The rack console drawer also provides an extra local console for extended local operations. It's perfect for administering servers in data centers, server rooms, and labs. State-of-the-Art LCD Panel The rack console drawer features a power-saving LED backlit 17.3-inch LCD panel. Flexible Interface This flexible unit supports USB, VGA, DisplayPort, and HDMI connections to choose your video interface. And a front USB Hub supports USB HID (KB/MS) and storage devices. High-Resolution With a video resolution of up to 1920 x 1080 at 60 Hz, 1080p, you experience crisp, clear, viewing. Embedded Power Supply Fuels the Unit The drawer features a 12 V, 5.42-A integrated power supply. Adjusts to Fit Your Cabinet or Rack The drawer uses its adjustable mounting bracket to fit racks/cabinets 20.5 to 35.8 inches (52 to 91 cm) deep. |
| Product Type | LCD Rack Console |
| Product Name | KVM LCD Console Tray - 17" , Single-Rail, Touchpad, LED Backlight, USB, HDMI, DisplayPort, VGA |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVT617A |
| Product Model | KVT617A |
| Technical Information | |
| KVM Switch | Yes |
| Device Type | LCD Rack Console |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Input Devices | |
| Pointing Device Type |
|
| Keyboard | Yes |
Warranty Information
