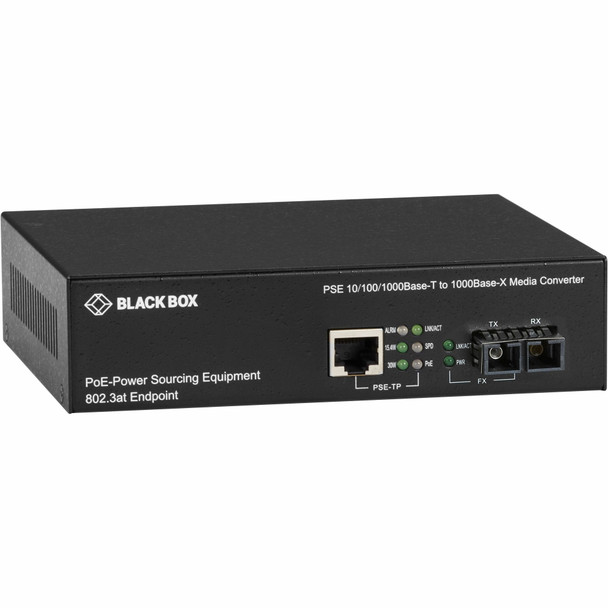

Black Box LPS500AMMSCR3 Transceiver/Media Converter
- SKU:
- 20971649
- MPN:
- lps500a-mm-sc-r3
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/16/2026 04:48:24 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 or above | and pay only $344.85 each 344.85 |
- Stock Update:
- 04/16/2026 04:48:24 PM PST
Description
This item is brand-new, factory sealed.
- Copper port auto negotiates for network speed and features Auto MDI-X for easy cabling.

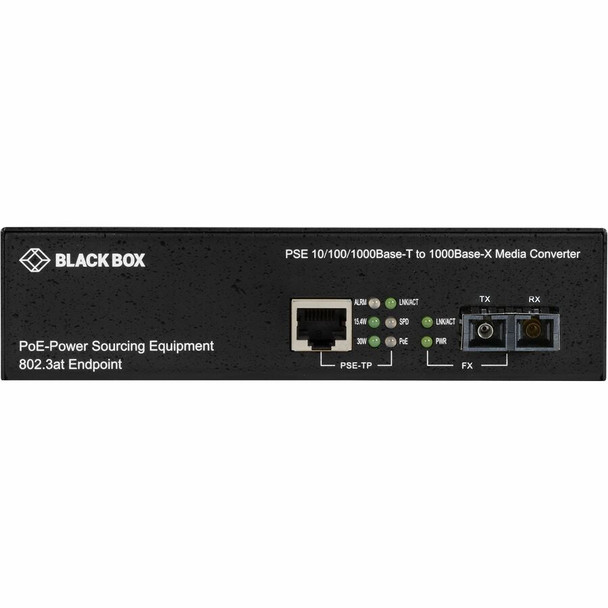

- LEDs indicate when it is feeding PoE power as well as when power is interrupted.
RoHS compliant. Connect Gigabit-speed fiber optic to a 10-/100-/1000-Mbps copper UTP segment while also powering 802.3af devices at the end of the CAT5 run. This PoE PSE Gigabit Media Converter from Black Box enables you to transparently connect copper cabling to multimode fiber as an economical way to extend Ethernet communications well beyond the 100-meter (327-foot) CATx limit.
Along with matching copper to interference-free fiber at Gigabit speeds, the converter doubles as power sourcing equipment (PSE) for Power over Ethernet (PoE) devices plugged in on the copper side. Using existing UTP cabling for both data communications and 48-VDC power simplifies a network application in terms of provisioning power and maintaining equipment.
It's particularly ideal for locating equipment where electrical access is inconvenient or just too expensive to locate. Install PoE-compatible security cameras and wireless access points in areas without any nearby power outlets while reducing your overall power consumption, too. Plus, the PoE PSE Gigabit Media Converter has extensive power management features, including overcurrent protection, undercurrent detection, minimum load sensing, and PSE MDI power enable/disable.
For reliable data communications, the media converter boasts link fault pass-through (LFP) capabilities, monitoring receive ports on both the fiber and copper sides for loss of signal. If signaling is lost on one media port, it automatically disables the transmit (TX) signal to the other media port.
Additionally, a far-end fault (FEF) function enables the converter to cease sending a link pulse to a link partner if signaling on the fiber receive (RX) port is lost. The link partner will also synchronously stop sending data. This way, you don't lose valuable data transmitted over an invalid link.
Features
- CE
- IEEE 802.3af
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3z/ab
- IEEE 802.3x
- EN62368
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Application/Usage:
Network
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Power Description | |
| Power Source | Power Supply |
| Frequency | 63 Hz |
| Power Consumption | 65 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Weight (Approximate) | 1.30 lb |
| Height | 1.6" |
| Width | 6.2" |
| Depth | 5.2" |
| Warranty | |
| Additional Warranty Information | <p>Double Diamond Warranty (Standard)</p> |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| SC Port Type | Duplex |
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Copper port auto negotiates for network speed and features Auto MDI-X for easy cabling. LEDs indicate when it is feeding PoE power as well as when power is interrupted. RoHS compliant. Connect Gigabit-speed fiber optic to a 10-/100-/1000-Mbps copper UTP segment while also powering 802.3af devices at the end of the CAT5 run. This PoE PSE Gigabit Media Converter from Black Box enables you to transparently connect copper cabling to multimode fiber as an economical way to extend Ethernet communications well beyond the 100-meter (327-foot) CATx limit. Along with matching copper to interference-free fiber at Gigabit speeds, the converter doubles as power sourcing equipment (PSE) for Power over Ethernet (PoE) devices plugged in on the copper side. Using existing UTP cabling for both data communications and 48-VDC power simplifies a network application in terms of provisioning power and maintaining equipment. It's particularly ideal for locating equipment where electrical access is inconvenient or just too expensive to locate. Install PoE-compatible security cameras and wireless access points in areas without any nearby power outlets while reducing your overall power consumption, too. Plus, the PoE PSE Gigabit Media Converter has extensive power management features, including overcurrent protection, undercurrent detection, minimum load sensing, and PSE MDI power enable/disable. For reliable data communications, the media converter boasts link fault pass-through (LFP) capabilities, monitoring receive ports on both the fiber and copper sides for loss of signal. If signaling is lost on one media port, it automatically disables the transmit (TX) signal to the other media port. Additionally, a far-end fault (FEF) function enables the converter to cease sending a link pulse to a link partner if signaling on the fiber receive (RX) port is lost. The link partner will also synchronously stop sending data. This way, you don't lose valuable data transmitted over an invalid link. |
| Product Type | Transceiver/Media Converter |
| Product Name | LPS500 Transceiver/Media Converter |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LPS500A-MM-SC-R3 |
| Product Series | LPS500 |
| Media & Performance | |
| Maximum Distance Supported | 0.30 km |
| Media Type Supported |
|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Fiber Optic Cable Core/Cladding Specification |
|
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
