Black Box Network Services
Black Box Network DKM Modular Card ACX2MTDP11ATHSM
- SKU:
- 21046754
- MPN:
- acx2mt-dp11ath-sm
- Availability:
- Out of stock
- Stock Update:
- 10/02/2025 01:44:38 PM PST
- Stock Update:
- 10/02/2025 01:44:38 PM PST
Description
This item is brand-new, factory sealed.

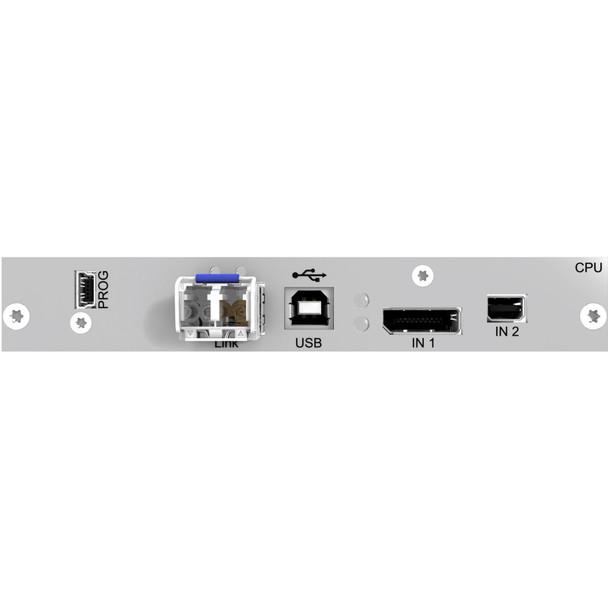

The DKM FX Modular KVM Extender Interface Card extends visually lossless, high-resolution DisplayPort signals over fiber cable. It also features two USB HID ports so you can easily connect your keyboards, mice, and other devices. You can use the extender card with the DKM FX Chassis for matrix switching or as a point-to-point KVM extender. The DKM FX Extender Card supports 4K resolutions (4096 x 2160 and 3840 x 2160) in single-head mode and up to 1920 x 1200 video in dual-head mode. Audio is directly reproduced by any connected displays with integrated speakers. The stereo signal can also be extracted and output separately.
Package Contents:
- DKM FX KVM Extender Transmitter
- 1 x DisplayPort M/M, 6 Feet
- 1 x Mini DisplayPort to DisplayPort M/M, 6 Feet
- 1 x USB Type A to B M/M, 6 Feet
Features
- DKM FX KVM Extender Transmitter
- 1 x DisplayPort M/M, 6 Feet
- 1 x Mini DisplayPort to DisplayPort M/M, 6 Feet
- 1 x USB Type A to B M/M, 6 Feet
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Platform Supported:
Windows
Sun
Linux
Unix
Mac
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Physical Characteristics | |
| Transmitter Weight (Approximate) | 9.60 oz |
| Transmitter Depth | 5.75" |
| Transmitter Height | 0.70" |
| Transmitter Width | 5" |
| Warranty | |
| Additional Warranty Information | <p>2 Year Double Diamond™ Warranty (Standard) </p> |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of USB Ports | 2 |
| USB | Yes |
| DisplayPort | Yes |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Graphic Mode | 4K |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The DKM FX Modular KVM Extender Interface Card extends visually lossless, high-resolution DisplayPort signals over fiber cable. It also features two USB HID ports so you can easily connect your keyboards, mice, and other devices. You can use the extender card with the DKM FX Chassis for matrix switching or as a point-to-point KVM extender. The DKM FX Extender Card supports 4K resolutions (4096 x 2160 and 3840 x 2160) in single-head mode and up to 1920 x 1200 video in dual-head mode. Audio is directly reproduced by any connected displays with integrated speakers. The stereo signal can also be extracted and output separately. |
| Product Type | KVM Extender Transmitter |
| Product Name | DKM Modular Card, DisplayPort 1.1 and USB HID over Fiber |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACX2MT-DP11ATH-SM |
| Product Series | DKM FX |
| Packaged Quantity | 1 |
| Technical Information | |
| Maximum Operating Distance | 32808.40 ft |
| Device Type | KVM Extender |
| Connectivity Technology | Wired |
