Black Box Network Services
Black Box Video Matrix Switcher - HDMI 2.0 AVSHDMI24X4R2
- SKU:
- 20057229
- MPN:
- avs-hdmi2-4x4-r2
- Availability:
- Usually ships the same or next business day. In stock at our NJ warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/07/2026 04:56:42 PM PST
- Stock Update:
- 10/07/2026 04:56:42 PM PST
Description
This item is brand-new, factory sealed.
The Video Matrix Switch is a professional 4K HDMI 2.0 Matrix Switch with either 4 or 8 HDMI inputs, 4 or 8 HDMI outputs, and 4 or 8 SPDIF audio outputs. It is designed for switching HDMI 2.0 and HDCP 2.2 compliant signals. It also includes powerful EDID management to ensure reliable AV distribution and routing.

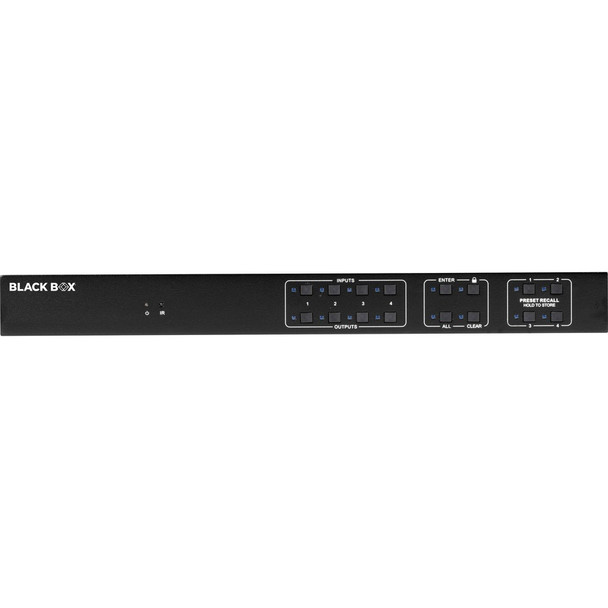

This capable switch supports 4K x 2K at 60 HZ 4:4:4 and 1080p 3D signals, and is compatible with HDMI 2.0, HDCP 2.2, and is backward compatible with the earlier versions. You can control the unit via the front panel, IR, RS-232, TCP/IP, and web-based GUI.
The matrix switch is designed to be the central component of an AV system. It is ideal for applications where multiple signals with different resolutions must be optimized for displays. It is also suitable for presentation spaces where two displays are needed.

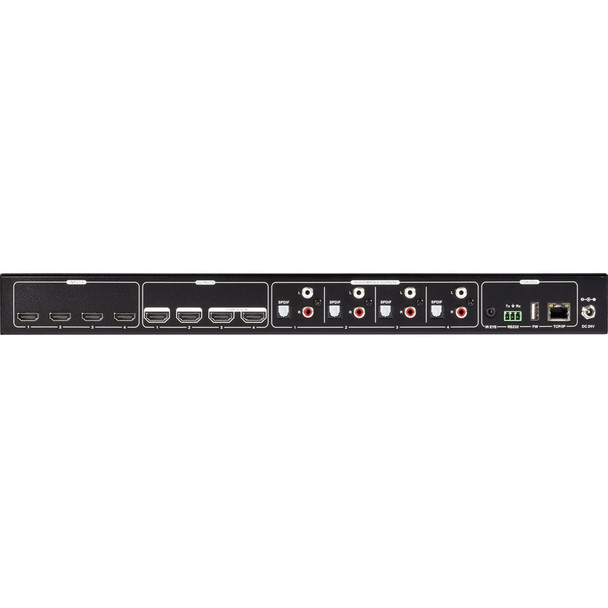

The switch supports audio via stereo audio ports, with ports for both L/R unbalanced audio as well as SPDIF.
Suitable for use with AOC cables (5V, 500mA, 2.5W).

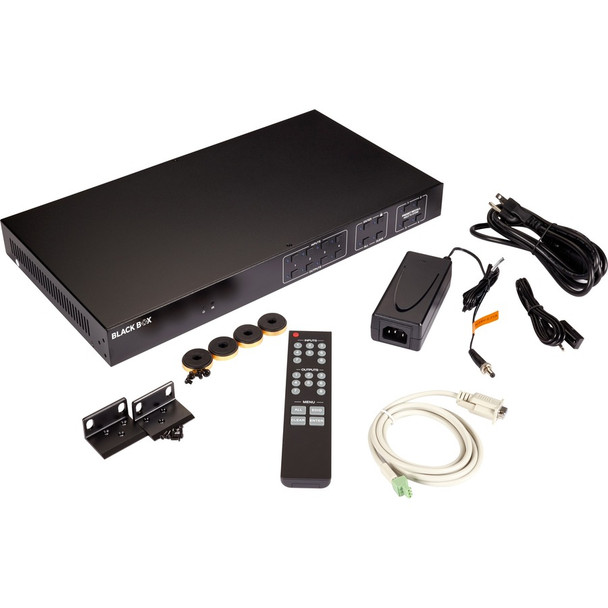

Package Contents:
- Video Matrix Switcher - HDMI 2.0
- 1 x IR Remote
- 1 x IR Receiver
- 1 x Power Adapter
- 1 x RS-232 Cable (3-pin to DB9)
- 2 x Mounting Ears
- 6 x Screws
- 4 x Plastic Cushions
Features
- Video Matrix Switcher - HDMI 2.0
- 1 x IR Remote
- 1 x IR Receiver
- 1 x Power Adapter
- 1 x RS-232 Cable (3-pin to DB9)
- 2 x Mounting Ears
- 6 x Screws
- 4 x Plastic Cushions
Environmentally Friendly:
Yes
Specs
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 5.73 lb |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Number of USB Ports | 1 |
| HDMI Out | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 4 |
| HDMI In | Yes |
| USB | Yes |
| Number of HDMI Outputs | 4 |
| Connectivity (RJ-45) | Yes |
| Video | |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The Video Matrix Switch is a professional 4K HDMI 2.0 Matrix Switch with either 4 or 8 HDMI inputs, 4 or 8 HDMI outputs, and 4 or 8 SPDIF audio outputs. It is designed for switching HDMI 2.0 and HDCP 2.2 compliant signals. It also includes powerful EDID management to ensure reliable AV distribution and routing. This capable switch supports 4K x 2K at 60 HZ 4:4:4 and 1080p 3D signals, and is compatible with HDMI 2.0, HDCP 2.2, and is backward compatible with the earlier versions. You can control the unit via the front panel, IR, RS-232, TCP/IP, and web-based GUI. The matrix switch is designed to be the central component of an AV system. It is ideal for applications where multiple signals with different resolutions must be optimized for displays. It is also suitable for presentation spaces where two displays are needed. The switch supports audio via stereo audio ports, with ports for both L/R unbalanced audio as well as SPDIF. Suitable for use with AOC cables (5V, 500mA, 2.5W). |
| Product Type | Audio/Video Switchbox |
| Product Name | Video Matrix Switcher - HDMI 2.0 |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | AVS-HDMI2-4X4-R2 |
| Packaged Quantity | 1 |
| Media & Performance | |
| Maximum Operating Distance | 49.21 ft |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Number of Displays Supported | 4 |
| Number of Input Devices Supported | 4 |
| Device Supported | Display |
| Connectivity Technology | Cable |
