Black Box Network Services

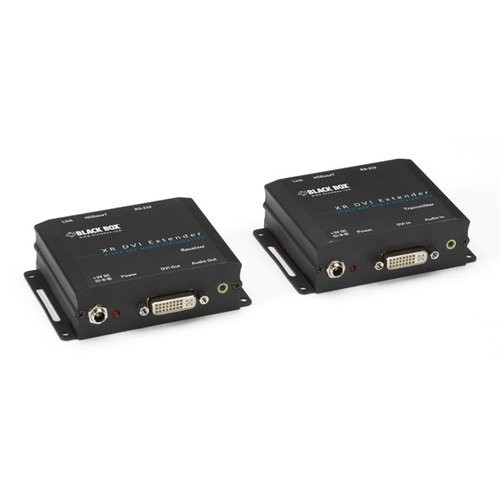

Black Box XR DVI-D Extender with Audio RS-232 and HDCP (AVXDVITP100M)
- SKU:
- 18137825
- MPN:
- avx-dvi-tp-100m_25
- Availability:
- Out of stock
- Stock Update:
- 10/23/2023 10:48:05 AM PST
- Stock Update:
- 10/23/2023 10:48:05 AM PST
Description
This item is brand-new, factory sealed.
- Supports resolutions up to 1080p (HDTV) or 1920 x 1200 (VESA).
- Enables flexible screen location without compromising video quality.
- HDCP compliant and Blu-ray ready, and supports EDID.
- Transmits serial RS-232 TXD and RXD control signals.
- Includes a transmitter and a wallmountable receiver.
- Auto equalization for extended video range.
- No software or driver installation required.
- Complies with the DVI 1.0 standard.
Put a digital DVI screen up to 330 feet (100 m) from a video source and control a monitor via RS-232 TXD and RXD control signals with this extender.
Extending over a single CAT5e/6/7 cable, the transmitter-receiver combo supports both HDTV resolutions and VESA standards. The extender makes it easy to send digital 1080p-quality video and 2-channel stereo analog audio plus serial RS-232 control signals to a distant screen or projector.
Audio is integrated into the CATx cable extension, so you don't need a separate cable to transmit audio from the source to the screen.
Because the extender supports bidirectional RS-232 control, you can use serial commands from a PC to control RS-232 equipment or turn a remote screen on and off to save energy in your video application.
Plus, the XR DVI-D Extender with Audio, RS-232, and HDCP supports EDID and HDCP bypass, so you can also extend content from a protected-content source.
*Distance depends on the characteristics and quality of the cable and the type of DVI source and display.
Package Contents:
- Transmitter
- Receiver
- 2 x Power Supplies with Cords
- 2 x Wallmount Brackets
- 4 x Screws
- User Manual
Features
- Transmitter
- Receiver
- 2 x Power Supplies with Cords
- 2 x Wallmount Brackets
- 4 x Screws
- User Manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage Range | 100V AC to 240V AC |
| Input Voltage |
|
| Power Consumption | 20 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Transmitter Weight (Approximate) | 14.40 oz |
| Receiver Width | 4.10" |
| Receiver Height | 1.30" |
| Receiver Depth | 3" |
| Transmitter Depth | 3" |
| Receiver Weight (Approximate) | 14.40 oz |
| Transmitter Height | 1.30" |
| Transmitter Width | 4.10" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| DVI | Yes |
| Number of DVI Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Supports resolutions up to 1080p (HDTV) or 1920 x 1200 (VESA). Enables flexible screen location without compromising video quality. HDCP compliant and Blu-ray ready, and supports EDID. Transmits serial RS-232 TXD and RXD control signals. Includes a transmitter and a wallmountable receiver. Auto equalization for extended video range. No software or driver installation required. Complies with the DVI 1.0 standard. Put a digital DVI screen up to 330 feet (100 m) from a video source and control a monitor via RS-232 TXD and RXD control signals with this extender. Extending over a single CAT5e/6/7 cable, the transmitter-receiver combo supports both HDTV resolutions and VESA standards. The extender makes it easy to send digital 1080p-quality video and 2-channel stereo analog audio plus serial RS-232 control signals to a distant screen or projector. Audio is integrated into the CATx cable extension, so you don't need a separate cable to transmit audio from the source to the screen. Because the extender supports bidirectional RS-232 control, you can use serial commands from a PC to control RS-232 equipment or turn a remote screen on and off to save energy in your video application. Plus, the XR DVI-D Extender with Audio, RS-232, and HDCP supports EDID and HDCP bypass, so you can also extend content from a protected-content source. *Distance depends on the characteristics and quality of the cable and the type of DVI source and display. |
| Product Condition | New |
| Product Type | KVM Extender |
| Product Name | XR DVI-D Extender with Audio RS-232 and HDCP |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | AVX-DVI-TP-100M |
| Technical Information | |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 330 ft |
| Device Type | KVM Extender |
| Connectivity Technology | Wired |
| Number of Local Users Supported | 1 |
