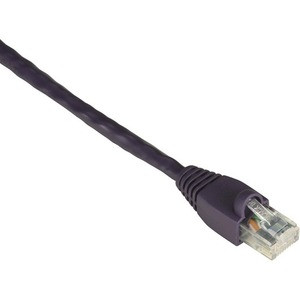

Black Box GigaTrue Cat. 6 Channel UTP Patch Cable (EVNSL6480015)

SKU:
18572184
MPN:
evnsl648-0015
Availability:
Out of stock
Stock Update:
06/28/2022 01:54:46 PM PST
  • Main
  • Large

Out of stock

Stock Update:
06/28/2022 01:54:46 PM PST
Frequently bought together:

Description

This item is brand-new, factory sealed.

Connectivity from the data center to the desktop, and beyond.

For performance designed to last the lifetime of your cabling system, choose Black Box. You'll get high-performance copper and fiber cabling solutions for structured cabling systems, data centers, industrial environments, multimedia systems, datacomm connections, and more, including custom cables.

Features

Certifications & Standards:

EIA/TIA-568-B.2-1




Environmental Certification:
RoHS



Additional Information:
  • Perfect for full broadband and baseband video
  • Full Power Sum performance
  • Provides full-duplex operation
  • Meets balance requirements (LCL/LCTL)
  • Improved attenuation provides cleaner data and video transmissions
  • Attenuation: 23.6 dB at 100 MHz, 39.1 dB at 250 MHz
  • Delay Skew (Maximum): 25 ns/100 m (328 ft.)
  • Impedance: 100 ± 15 ohms at 100 MHz, 100 ± 22 ohms at 100-550 MHz
  • Mutual Capacitance (Maximum): 56 pF/m
  • NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz
  • PS-ACR: 32 dB (Typical) at 100 MHz
  • PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz
  • Resistance (Maximum): 9.09 Ohms/100 m (328 ft.)
  • Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz
  • Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz

Applications:

  • 1000BASE-T
  • 100BASE-TX
  • 100BASE-VG
  • 155-Mbps ATM
  • 100-Mbps FDDI/CDDI



Environmentally Friendly:
Yes



Country of Origin:
China



Specs

Physical Characteristics
Product ColorPurple
Jacket MaterialPolyvinyl Chloride (PVC)
Warranty
Limited WarrantyLifetime
General Information
Brand NameBlack Box
Manufacturer Website Addresshttp://www.blackbox.com
Marketing InformationBlack Box GigaTrue Premium CAT6 patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 spec, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.
These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's GigaTrue line of cabling gives you the flexibility to build your install however you want.
Product TypeNetwork Cable
Product NameGigaTrue Cat.6 UTP Patch Network Cable
ManufacturerBlack Box Corporation
Manufacturer Part NumberEVNSL648-0015
Product LineGigaTrue
Technical Information
Data Transfer Rate1 Gbit/s
Cable TypeCategory 6
Connector on First End Details1 x RJ-45 Network - Male
ShieldingNo
Device Supported
Connector on Second End Details1 x RJ-45 Network - Male
Connector Type on First EndRJ-45 Network - Male
Connector Type on Second EndRJ-45 Network - Male
Contact PlatingGold
Cable Length15 ft
Features
ConductorCopper
Jacket TypeCM
Cable CharacteristicPatch Cable
American Wire Gauge24 AWG
Boot TypeSnagless
