Black Box Network Services

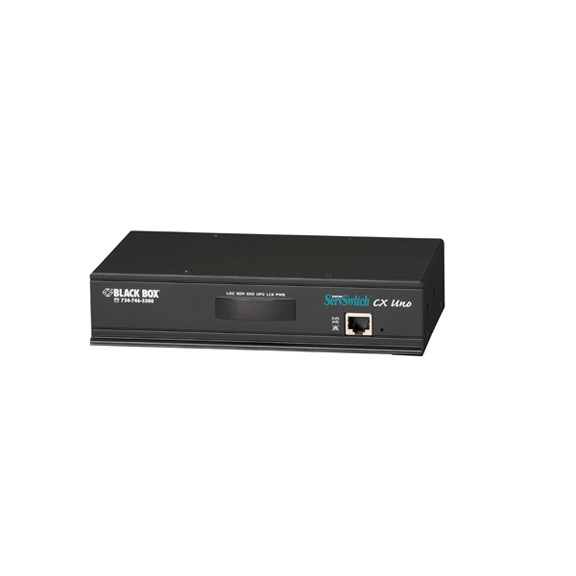

Black Box ServSwitch CX Uno KV0161A
- SKU:
- 18132727
- MPN:
- kv0161a
- Availability:
- Out of stock
- Stock Update:
- 08/17/2023 04:39:38 PM PST
- Stock Update:
- 08/17/2023 04:39:38 PM PST
Description
This item is brand-new, factory sealed.
Further Details- Shared local and remote user console.
- Stereo audio support.
- CATx cabling means you can cascade 31 CPUs in 1U.
- Flash upgradable.
- An 8-port version is also available.
Add PS/2®, USB, or Sun® Server Access Modules (SAMs) to your CX Uno, 16-Port. All platforms are available with stereo audio support for speakers, too! Place servers up to 32.8 feet (10 m) from the switch and connect them with a simple CATx cable.
Small size, big delivery
Less than half the width of a standard 19" mountable device, the ServSwitch CX Uno supports up to 31 cascaded servers in 1U of rack space. Added to a KVM drawer like the ServView KVM Drawer (KVT317A), it's an ideal solution for dense server rack environments.
Remote access option via CATx
With the Remote Access Modules for the CX Uno for PS/2 or USB (KV04-REM or KV04U-REM series), a remote user has access to the attached servers from more than 900 feet (300 m) away using a single CATx cable.
Remote control option
Like all CX series switches, the CX Uno can be switched remotely via RS-232 commands. You can also synchronize the switching of multiple units, enabling support for multi-head video.
Package Contents:
- ServSwitch CX Uno, 16-Port
- 1 x Power Supply
- 1 x IEC 320 Power Cord
- Safety Guide
Features
- ServSwitch CX Uno,16-Port
- 1 x Set of Rubber Feet (4 total)
- 1 x Power Supply
- 1 x Serial Upgrade Cable (DB9M to DB9F)
Environmental Certification:
WEEE
RoHS
Environmentally Friendly:
Yes
Country of Origin:
United Kingdom
Specs
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 1.50 lb |
| Height | 1.7" |
| Width | 7.9" |
| Rack Height | 1U |
| Depth | 4.7" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| VGA | Yes |
| Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of VGA Ports | 1 |
| Number of Network (RJ-45) Ports | 17 |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Further Details Shared local and remote user console. Stereo audio support. CATx cabling means you can cascade 31 CPUs in 1U. Flash upgradable. An 8-port version is also available. Add PS/2®, USB, or Sun® Server Access Modules (SAMs) to your CX Uno, 16-Port. All platforms are available with stereo audio support for speakers, too! Place servers up to 32.8 feet (10 m) from the switch and connect them with a simple CATx cable. Small size, big delivery Less than half the width of a standard 19" mountable device, the ServSwitch CX Uno supports up to 31 cascaded servers in 1U of rack space. Added to a KVM drawer like the ServView KVM Drawer (KVT317A), it's an ideal solution for dense server rack environments. Remote access option via CATx With the Remote Access Modules for the CX Uno for PS/2 or USB (KV04-REM or KV04U-REM series), a remote user has access to the attached servers from more than 900 feet (300 m) away using a single CATx cable. Remote control option Like all CX series switches, the CX Uno can be switched remotely via RS-232 commands. You can also synchronize the switching of multiple units, enabling support for multi-head video. |
| Product Type | KVM Switchbox |
| Product Name | ServSwitch CX Uno,16-Port |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KV0161A |
| Product Model | KV0161A |
| Product Series | CX |
| Product Line | ServerSwitch |
| Packaged Quantity | 1 |
| Technical Information | |
| Number of Computers Supported | 16 |
| Number of Local Users Supported | 1 |
