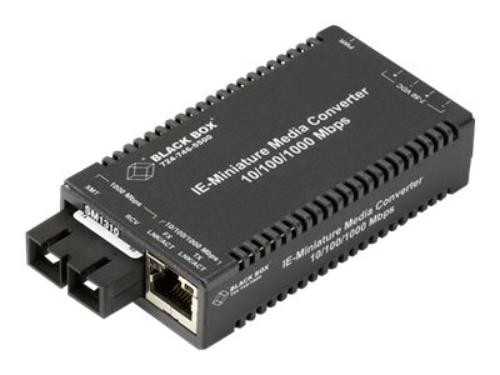

Black Box MultiPower Miniature Transceiver/Media Converter (LGC321AR3)

SKU:
18834788
MPN:
lgc321a-r3
Availability:
Out of stock
Stock Update:
05/10/2022 04:44:48 PM PST

Out of stock

Stock Update:
05/10/2022 04:44:48 PM PST
Frequently bought together:

Description

This item is brand-new, factory sealed.

This Industrial MultiPower Media Converter seamlessly and transparently converts 10-/100-/1000-Mbps copper to 1000-Mbps single-mode fiber. It enables you to extend your network over fiber at distances up to 10 kilometers (6.2 mi.) on single-mode cable. As a Layer 2 media converter, it automatically senses and adapts to speed on the copper side for truly plug-and-play operation.

Industrial MultiPower Media Converters are designed for use in harsh industrial environments. When used with DC power, the converters support an extended temperature range of -13 to +158° F (-25 to +70° C), making them suitable for a wide range of industrial applications.

In all, there are three different ways to power a converter: with its AC adapter, using 5 - 50-VDC terminal block power, or via an optional USB Power Adapter Cable, which you plug into your PC's USB port and is sold separately (LHC021A).

You can even use multiple power options at the same time to provide maximum redundancy and ensure that your mission-critical applications remain up and running. Then, if any one of these power sources fails, the other sources will continue to supply power to the converter seamlessly.

The converter comes with a DIN clip for DIN rail mounting. When installing multiple Industrial MultiPower Media Converters on a DIN rail, use one DC input source, then cascade from one DC block to the next until you reach the maximum current available.



Package Contents:
  • MultiPower Miniature Transceiver/Media Converter
  • DIN Clip

Features

Package Contents:
  • MultiPower Miniature Transceiver/Media Converter
  • DIN Clip



Environmental Certification:

RoHS
WEEE



Environmentally Friendly:
Yes



Country of Origin:
Taiwan



Specs

Power Description
Power SourceAC/DC
Physical Characteristics
Form FactorDIN Rail Mountable
Height0.8"
Width1.8"
Depth3.4"
Interfaces/Ports
Network (RJ-45)Yes
Total Number of Ports2
Number of SC Ports1
Number of Network (RJ-45) Ports1
General Information
Brand NameBlack Box
Manufacturer Website Addresshttp://www.blackbox.com
Marketing InformationThis Industrial MultiPower Media Converter seamlessly and transparently converts 10-/100-/1000-Mbps copper to 1000-Mbps single-mode fiber. It enables you to extend your network over fiber at distances up to 10 kilometers (6.2 mi.) on single-mode cable. As a Layer 2 media converter, it automatically senses and adapts to speed on the copper side for truly plug-and-play operation.
Industrial MultiPower Media Converters are designed for use in harsh industrial environments. When used with DC power, the converters support an extended temperature range of -13 to +158° F (-25 to +70° C), making them suitable for a wide range of industrial applications.
In all, there are three different ways to power a converter: with its AC adapter, using 5 - 50-VDC terminal block power, or via an optional USB Power Adapter Cable, which you plug into your PC's USB port and is sold separately (LHC021A).
You can even use multiple power options at the same time to provide maximum redundancy and ensure that your mission-critical applications remain up and running. Then, if any one of these power sources fails, the other sources will continue to supply power to the converter seamlessly.
The converter comes with a DIN clip for DIN rail mounting. When installing multiple Industrial MultiPower Media Converters on a DIN rail, use one DC input source, then cascade from one DC block to the next until you reach the maximum current available.
Product TypeTransceiver/Media Converter
Product NameMultiPower Miniature Transceiver/Media Converter
ManufacturerBlack Box Corporation
Manufacturer Part NumberLGC321A-R3
Product LineMultipower Miniature
Media & Performance
Fiber Optic Wavelength1310 nm
Maximum Distance Supported6.21 Mile
Media Type Supported
Fiber Mode SupportedSingle-mode
Network & Communication
Ethernet TechnologyGigabit Ethernet
Network Technology
