Black Box ServSwitch Wizard VGA- USB- Single-Head Video - 4 Computer(s) - 1 Local User(s) (KV3004A)
- SKU:
- 18132736
- MPN:
- kv3004a
- Availability:
- Out of stock
- Stock Update:
- 06/06/2026 09:39:36 AM PST
- Stock Update:
- 06/06/2026 09:39:36 AM PST
Description
This item is brand-new, factory sealed.
Description

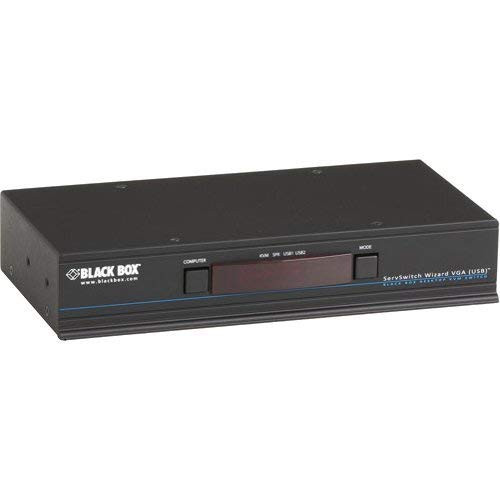

ServSwitch Wizard VGA, USB, Single-Head Video
Quick Facts
- A flexible, professional-grade KVM switch for high-performance switching.
- Enables a single user to control four computers and share USB peripherals between them.
- Switch VGA video, keyboard, and mouse streams to multiple CPUs.
- Supports high resolutions up to 1920 x 1200 (WQXGA).
Further Details
Intelligent options port.
With advanced support for multiple high-speed USB devices, the ServSwitch Wizard VGA, USB serves today's busy multitaskers quite well. It enables a single KVM workstation user to control four separate computer systems or servers and flexibly share peripherals among them.
ServSwitch Wizard VGA supports a wide range of USB devices, especially high-speed USB 2.0 peripherals on its switched USB ports. Printers, scanners, and non-standard HID devices can all be attached. For instance, you can create e-mails on one system, listen to audio on a second one, print from a third computer, and scan documents on a Flash drive-all at the same time.
This highly flexible KVM switch is ideal for IT administrators and medical imaging, graphic design, and broadcast studio professionals who not only require quick, reliable access to multiple computer CPUs and multiple video channels, but also need simultaneous access to a mix of USB peripherals.
Package Contents:
- ServSwitch Wizard VGA, USB KVM switch unit
- 1 x AC power adapter
- 4 x Self-Adhesive Rubber Feet
- Safety Guide
Features
- KVM Switch - Single-Monitor, VGA, USB True Emulation, Audio, 4-Port
- 1 x AC Power Adapter
- 4 x Self-Adhesive Rubber Feet
- Safety Guide
Certifications & Standards:
CE
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United Kingdom
Specs
| Power Description | |
| Input Voltage Range | 100-240 V AC |
| Frequency |
|
| Physical Characteristics | |
| Form Factor | Desktop |
| Weight (Approximate) | 2.10 lb |
| Height | 1.7" |
| Width | 9.2" |
| Depth | 4.5" |
| Warranty | |
| Additional Warranty Information | <p>2 Years Double Diamond™ Warranty (Standard)</p> |
| Limited Warranty | 2 Year |

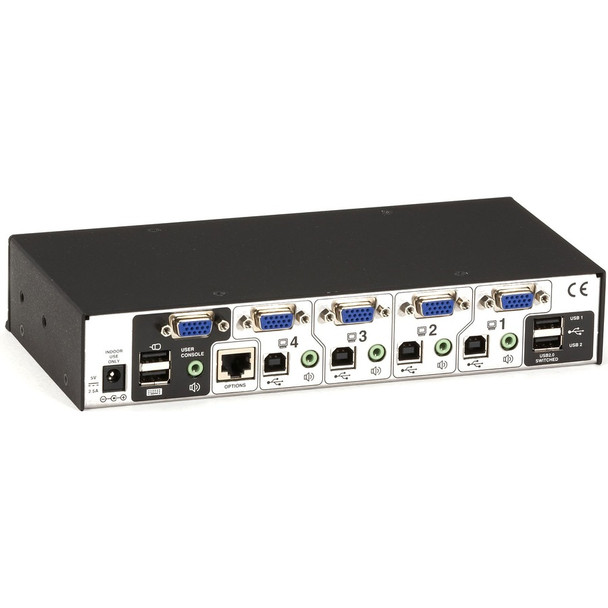

| Interfaces/Ports | |
| VGA | Yes |
| Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of VGA Ports | 1 |
| Serial Port | Yes |
| Headphone | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Graphic Mode | WUXGA |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Simplified Multi-System Control with the ServSwitch Wizard VGA The ServSwitch Wizard VGA, USB KVM switch is engineered to streamline control for demanding professionals. This highly flexible device centralizes access from a single user console to four different computer systems, each supporting dual VGA screens. It's the ideal solution for IT administrators, medical imaging, graphic design, and broadcast studio professionals who require quick, reliable access to multiple CPUs, video channels, and a mix of peripherals. Dual-Head KVM with Independent Switching The ServSwitch Wizard VGA offers significant benefits by providing dual-head video support, allowing you to control up to four computers, each with two VGA video channels that support high resolutions of up to 1920 x 1200. This makes it ideal for detailed tasks such as post-production or advanced medical and R&D imaging. It excels in intelligent peripheral sharing, allowing you to access and share a wide array of high-speed USB 2.0 peripherals (including printers, scanners, and non-standard HID devices) and audio among all four connected computers. Critically, it provides flexible independent switching. This means you can use your KVM console on one PC while your USB devices remain connected and accessible to others, and you can switch peripherals and audio independently from the video and KVM control. For example, you can be working on one computer, listening to audio from a second, and printing from a third - all simultaneously. Easy System Access. You can select channels instantly using hotkeys, a three-button mouse, or the front-panel controls. For hands-off operation, the auto-scan feature lets you cycle between connected computers automatically. |
| Product Type | KVM Switchbox |
| Product Name | KVM Switch - Single-Monitor, VGA, USB True Emulation, Audio, 4-Port |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KV3004A |
| Product Line | ServerSwitch |
| Packaged Quantity | 1 |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
