Blue Sea Systems
Blue Sea System 3923451 Blue Sea 8082 Dc 10 Position Toggle Branch Circuit Breaker Panel
- SKU:
- 18029691
- MPN:
- 3923451
- Availability:
- Usually ships the same or next business day. In stock at our FL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/29/2024 01:19:55 PM PST
- Stock Update:
- 03/29/2024 01:19:55 PM PST
Description
This item is brand-new, factory sealed.

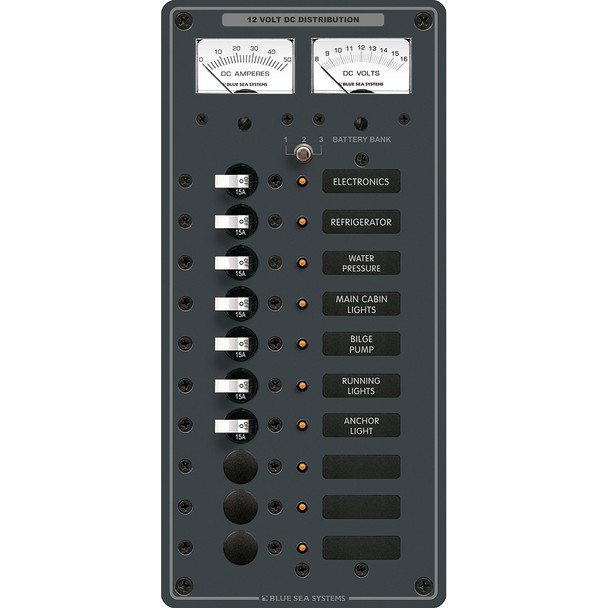

8082 DC 10 Position Toggle Branch Circuit Breaker Panel
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Includes set of 30 common DC labels
- Label backlighting pre-installed
- All LEDs installed
- Detailed installation instructions and cutout template
- 8028, 8-16 Volt DC Micro Voltmeter
- 8041, 0-50 Amp DC Micro Ammeter
- Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter
- 7 15A Single Pole circuit Breakers
Specifications:
- Positions: 10
- Nominal Voltage: 12v DC
- Maximum Amperage: 50A
- Height: 11.25"
- Width: 5.25"
- Depth: 2.5"
- Weight: 3.35 lbs
Included:
- (7) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8030 Basic DC Panel Label Set - 30 Labels
- (1) 8028 DC Micro Voltmeter - 8 to 16V DC (Meter)
- (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Blue Sea System 3923451 Blue Sea 8082 Dc 10 Position Toggle Branch Circuit Breaker Panel
$432.23
