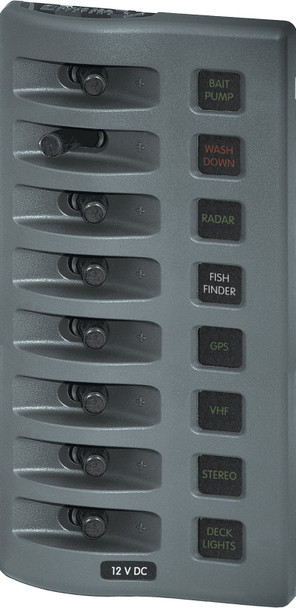

Blue Sea Systems 4308BSS Panel Wd 12vdc Fused 8pos Gray

(No reviews yet) Write a Review
SKU:
18007409
MPN:
4308_68
Availability:
Usually ships the same or next business day. In stock at our CA, TX warehouses.
Shipping:
Calculated at Checkout
Stock Update:
07/12/2024 04:39:00 AM PST
$152.56

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 3 or above and pay only $149.44 each 149.44
Stock Update:
07/12/2024 04:39:00 AM PST

Description

This item is brand-new, factory sealed.

WeatherDeck™ Water Resistant Fuse Panel

PN: 4308

Color: Gray

Features:

  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • IP67 – protected against immersion up to 1 meter for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label back lighting circuit for remote switching and dimming
  • Each panel can be mounted in four different orientations
  • Integrated ATO/ATC fuse based circuit protection
  • Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:

  • Weatherproof: Waterproof
  • Positions: 8
  • Nominal Voltage: 12v DC
  • Circuit Protection: Fuse
  • Maximum Amperage: 15A @ 12v DC (per circuit)
  • Panel Cumulative Rating: 100A
  • Backlit Label: Bicolored LED
  • Backlighting Amperage: 10mA/illuminated Circuit
  • Backlighting Voltage: 12v DC
  • Height: 7.7"
  • Width: 3.88"
  • Depth: 2.5"

Included:

  • (8) 4138 WeatherDeck® Toggle Switch Boot - Black
  • (8) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
  • (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
  • (8) 5242 ATO/ATC Fuse - 15 Amp
