Blue Sea Systems
Blue Sea Systems 4378BSS Panel Wd 12vdc Clb 8pos Gray 4664807
- SKU:
- 18007422
- MPN:
- 4664807
- Availability:
- Usually ships the same or next business day. In stock at our NJ warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/14/2024 09:51:31 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
Buy 2 - 3 | and pay only $157.85 each 157.85 |
Buy 4 or above | and pay only $154.96 each 154.96 |
- Stock Update:
- 04/14/2024 09:51:31 AM PST
Description
This item is brand-new, factory sealed.

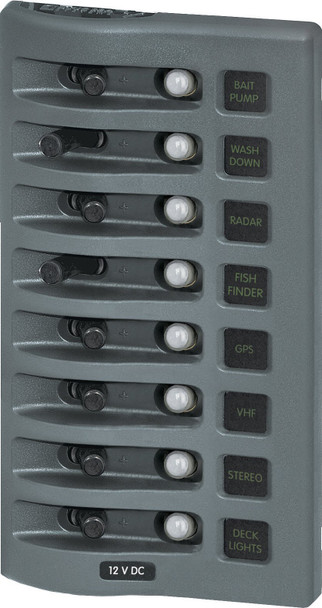

Blue Sea Systems Weather Deck 12V DC Waterproof Circuit Breaker Panel - Gray 8 Positions
Model: 4378-BSS- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Each panel can be mounted in four different orientations
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
Weatherproof | Waterproof |
Positions | 8 |
Nominal Voltage | 12V DC 24V DC |
Circuit Protection | Circuit Breaker |
Maximum Amperage | 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit) |
Panel Cumulative Rating | 45A |
Backlit Label | Green LED |
Backlighting Amperage | 10mA /Illuminated Circuit |
Backlighting Voltage | 12 or 24V DC |
Material | Reinforced Polycarbonate |
Dimensions | 7.70" H x 4.25" W x 3.5"D |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Blue Sea Systems 4378BSS Panel Wd 12vdc Clb 8pos Gray 4664807
$162.50
