Blue Sea m Hard Wire Switch 6007_68
- SKU:
- 18007495
- MPN:
- 6007_68
- Availability:
- Usually ships in 1-2 business days. In stock at our CA, FL, GA, KS, MI, PA, TX, WA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/22/2025 05:54:15 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $37.93 each 37.93 |
| Buy 3 | and pay only $36.35 each 36.35 |
| Buy 4 - 9 | and pay only $33.79 each 33.79 |
| Buy 10 or above | and pay only $32.85 each 32.85 |
- Stock Update:
- 12/22/2025 05:54:15 PM PST
Description
This item is brand-new, factory sealed.

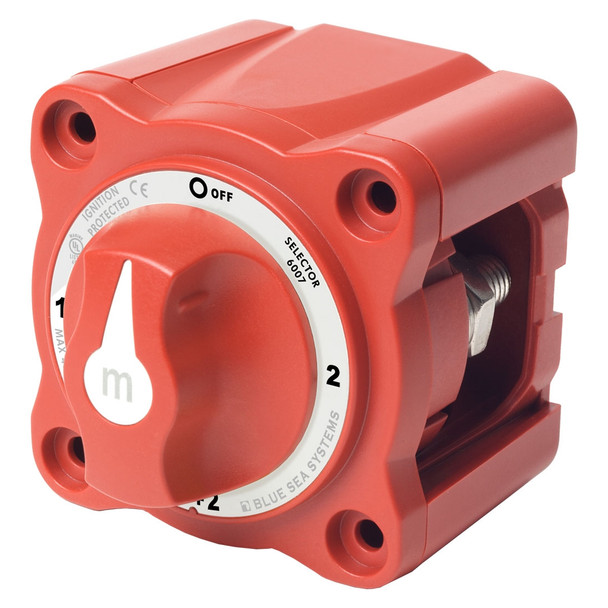

Blue Sea Systems m-Series Mini Selector Battery Switch - Red
Model: 6007-BSS- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- 7/8" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Isolating cover with snap-on sections protects rear contacts
- Case design allows surface, rear, or front panel mounting options
- Waterproof — rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
- Ignition protected—safe for installation aboard gasoline powered boats
- Make before break contact design allows switching between battery banks without power interruption
Switches isolated battery banks to all loads or combines battery banks to all loads
Specifications| Switch Type | Selector 4 Position |
| Color | Red |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32vDC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm ) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
Features
Certifications & Standards:
- CE
- UL 1107
- UL 1500
- SAE J1171
- IP66
- American Boat and Yacht Council (ABYC)
Additional Information:
- Make before break contact design allows switching between battery banks without power interruption.
- Ignition protected-safe for installation aboard gasoline powered boats.
- Case design allows surface, front panel, or rear panel mounting.
- Isolating cover with snap-on sections protects rear contacts.
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals.
- 7/8" (22.22mm) stud length to accept multiple cable terminals.
- Ideal for marine or RV applications.
- All non-corrosive marine grade metals.
- Molded in durable reinforced polycarbonate.
- Tactile textures indicate knob position by feel only.
- Label with international ON/OFF legends.
- Removable key or knob remains positively retained.
- ICON label set included for circuit identification.
- Cranking Rating: 10 sec.: 1,500 Amps
- Continuous Rating: 300 Amps
- Terminal Stud Size: 3/8"-16 (M10)
- Cranking Rating: 1 min.: 775 Amps
- Intermittent Rating: 5 min.: 500 Amps
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Cable Clearance For 4/0 AWG Cables: 1.12" (28.4mm)
Specs
| Physical Characteristics | |
| Weight (Approximate) | 12.32 oz |
| Product Color | Red |
| General Information | |
| Brand Name | Blue Sea |
| Manufacturer Website Address | http://www.bluesea.com |
| Marketing Information | Switches isolated battery banks to all loads or combines battery banks to all loads |
| Product Type | Hard Wire Switch |
| Product Name | m Hard Wire Switch |
| Manufacturer | Blue Sea Systems |
| Manufacturer Part Number | 6007 |
| Product Series | m |
| Technical Information | |
| Switch Type | Selector |
Warranty Information
