Brainboxes
Optoma ES522 Multimedia Projector ES522_3
- SKU:
- 18145418
- MPN:
- es-522
- Availability:
- Out of stock
- Stock Update:
- 12/17/2025 02:22:15 AM PST
- Stock Update:
- 12/17/2025 02:22:15 AM PST
Description
This item is brand-new, factory sealed.
Brainboxes Device Server - 2 Ports - 10Mb LAN, 100Mb LAN, RS-232, RS-422, RS-485 (ES-522)- Brainboxes state of the art auto gating for trouble free RS485 half duplex flow control
- 10/100 Base TX Ethernet port
- User friendly interface, simple to use, powerful in operation
- Web configuration and RFC2217 compliant interface for non-Windows users
- IP-30 rated non-conducting polyamide enclosure
- Brand Name: Brainboxes
- Item model number: ES-522
- Hardware Platform: PC
- Item Weight: 8.3 ounces
- Product Dimensions: 6.3 x 5.3 x 1.9 inches
- Item Dimensions L x W x H: 6.3 x 5.3 x 1.85 inches

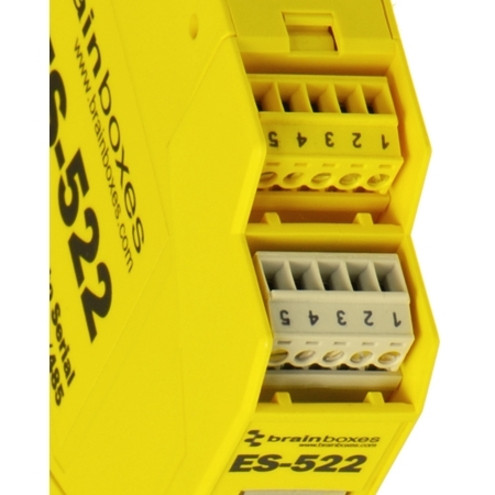

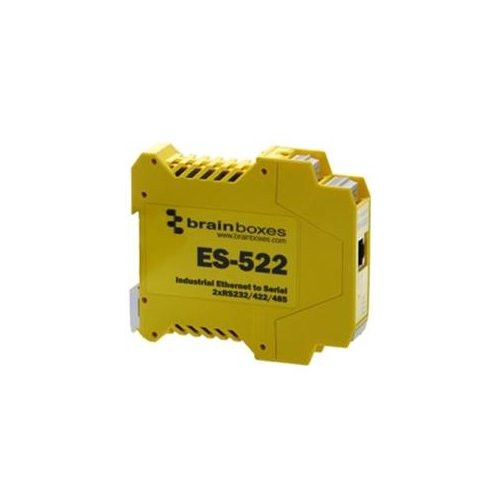

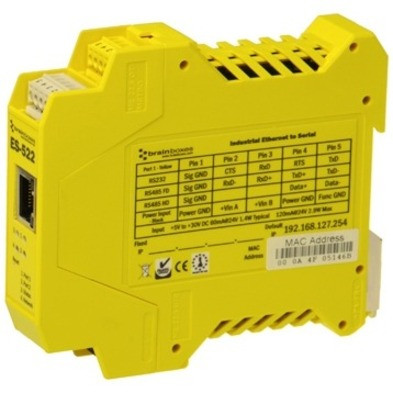

Ethernet to serial device with 2-port software selectable as RS232, RS422/485 full duplex or RS422 half duplex. ES-522 has removable screw terminals blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. Industrial Ethernet to serial has an operating temperature range of -30 to +80 degrees Celsius and with +5 V DC to +30 V DC dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud, coupled with 1 Mbit/s line drivers deliver uncompromising performance. The Industrial ES range provides simple instant networked serial ports in demanding environments. Serial port tunneling allows serial cable replacement over any distance, no software required.
Features
- Industrial Ethernet to Serial 2xRS232/422/485
- Installation CD including Manual
- Microsoft Signed Drivers & Utilities
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
United Kingdom
Specs
| Physical Characteristics | |
| Thickness | 4.5" |
| Form Factor | DIN Rail Mountable |
| Weight (Approximate) | 3.99 oz |
| Height | 4.1" |
| Width | 0.9" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Number of Serial Ports | 2 |
| General Information | |
| Brand Name | Brainboxes |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Ethernet to Serial Device with 2 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-522 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply. More from the Manufacturer |
| Product Type | Multiport Serial Adapter |
| Product Name | Industrial Ethernet to Serial 2xRS232/422/485 |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | ES-522 |
| Product Model | ES-522 |
| Technical Information | |
| Platform Supported |
|
