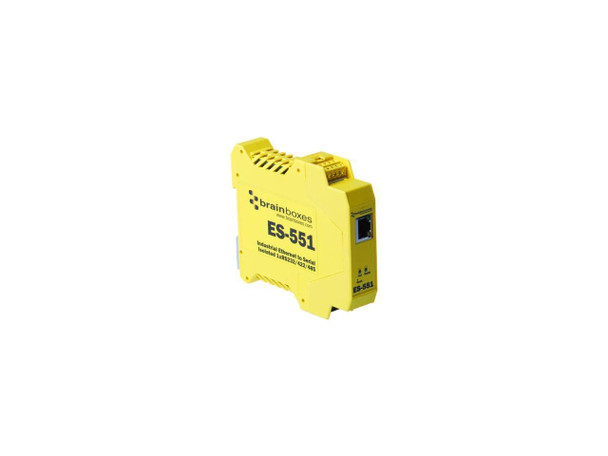

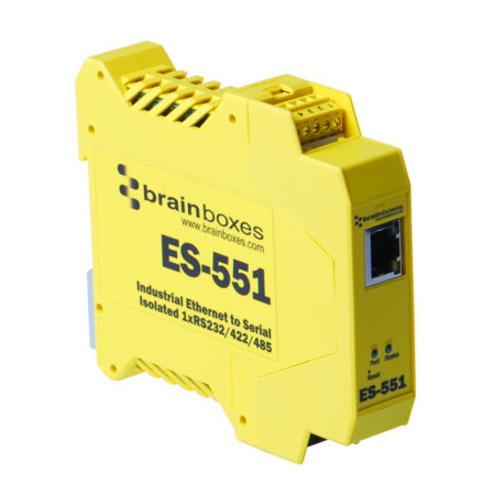

Brainboxes Isolated Industrial Ethernet to Serial 1xRS232/422/485 ES551
- SKU:
- 18146520
- MPN:
- es-551
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/17/2026 09:17:15 PM PST
- Stock Update:
- 06/17/2026 09:17:15 PM PST
Description
This item is brand-new, factory sealed.
Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex and 2 Ethernet ports. ES-551 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunneling allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
Package Contents:
- ES-551 Ethernet To Serial Device Server
- Installation CD (Manual, Microsoft Signed Drivers & Utilities)
Features
- Isolated Industrial Ethernet to Serial 1xRS232/422/485
- Installation CD Including Manual
- Microsoft Signed Drivers & Utilities
- Quick Start Guide
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
United Kingdom
Specs
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Weight (Approximate) | 2.15 oz |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Number of Serial Ports (External) | 1 |
| General Information | |
| Brand Name | Brainboxes |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex and 2 Ethernet ports. ES-551 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. Featuring 4 separate power domains with total galvanic isolation between each. Our Industrial Ethernet to Serial has an operating temperature range of -30°C to +80°C/-40?F to +176?F and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply. More from the Manufacturer |
| Product Type | Serial Adapter |
| Product Name | Isolated Industrial Ethernet to Serial 1xRS232/422/485 |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | ES-551 |
| Product Model | ES-551 |
| Technical Information | |
| Platform Supported |
|
