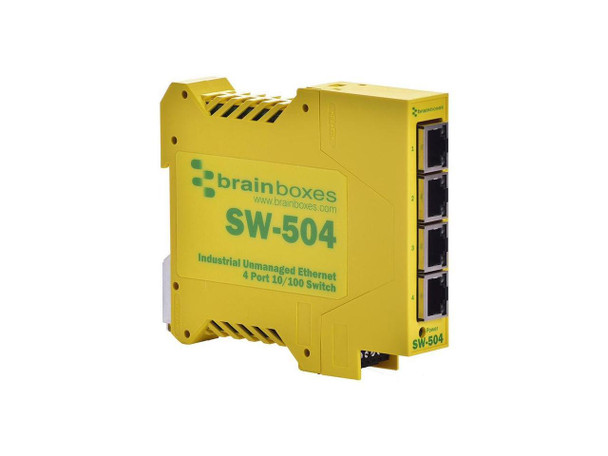

Brainboxes Sw-504 Industrial Unmanaged Ethernet Switch 4 Ports - 4 Ports - 4 X Rj-45 - 10/100base-tx - Rail-mountable (sw-504)
(No reviews yet)
Write a Review
- SKU:
- 18136653
- MPN:
- sw-504
- Availability:
- Usually ships the same or next business day. In stock at our MS warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/20/2025 12:44:16 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $79.42 each 79.42 |
| Buy 3 - 4 | and pay only $77.49 each 77.49 |
| Buy 5 or above | and pay only $75.94 each 75.94 |
- Stock Update:
- 12/20/2025 12:44:16 AM PST
Description
This item is brand-new, factory sealed.
Brainboxes Switch - 4 Ports - DIN Rail mountable (SW-504)- Slim shape
- Extended temperature range
- Brainboxes' easy wire feature
- Redundant dual power inputs
- Redundant dual power inputs: +5V to +30V DC
- Galvanically isolated
- Power consumption is optimized based on the status of the link device
- No software needed
- Brand Name: Brainboxes
- Item model number: SW-504
- Hardware Platform: PC
- Operating System: PC
- Item Weight: 3.2 ounces
- Product Dimensions: 5.9 x 5.7 x 1.6 inches
- Item Dimensions L x W x H: 5.9 x 5.7 x 1.6 inches
- Voltage: 5 volts
Industrial temperature range of -30C to +80C (-22F to 176F) and dual-input redundant power supply with wide voltage range means it can be powered from USB or on the 24 V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimized based on the status of the link device. No software required. It is ideal for factory floor, in vehicle and marine applications.
Features
Package Contents:
Yes
Yes
United Kingdom
- Industrial Ethernet 4 Port Switch DIN Rail Mountable
- Quick Start Guide
Certifications & Standards:
- CE
- CCC-Mark
- C-Tick
- Microsoft Certified Gold Partner
- METL
- AEO (C-TPAT)
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Country of Origin:
United Kingdom
Specs
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source |
|
| PoE (RJ-45) Port | No |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Weight (Approximate) | 4.41 oz |
| Height | 0.9" |
| Width | 4.6" |
| Depth | 3.9" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Uplink Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network |
| Total Number of Network Ports | 4 |
| Modular | No |
| Number of Network (RJ-45) Ports | 4 |
| General Information | |
| Brand Name | Brainboxes |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. More from the Manufacturer |
| Product Type | Ethernet Switch |
| Product Name | Industrial Ethernet 4 Port Switch DIN Rail Mountable |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-504 |
| Product Model | SW-504 |
| Media & Performance | |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
