Brainboxes

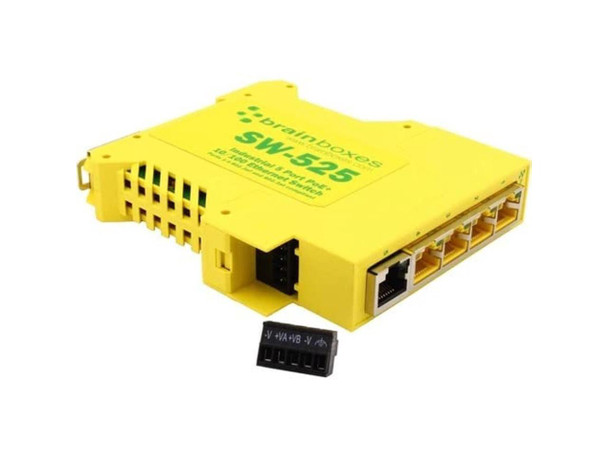

Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch SW525
(No reviews yet)
Write a Review
- SKU:
- 18909013
- MPN:
- sw-525
- Availability:
- Out of stock
- Stock Update:
- 12/17/2025 02:42:35 AM PST
- Stock Update:
- 12/17/2025 02:42:35 AM PST
Description
This item is brand-new, factory sealed.
Industrial Compact 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Package Contents:
- Industrial 5 Port PoE+ 10/100 Ethernet Switch
- Quick Start Guide
Features
Package Contents:
Yes
Yes
Great Britain
- Industrial 5 Port PoE+ 10/100 Ethernet Switch
- Quick Start Guide
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Great Britain
Specs
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Redundant Power Supply Supported | Yes |
| Plug/Connector Type | Terminal Block |
| Power Source |
|
| PoE Budget | 90 W |
| Input Voltage |
|
| PoE (RJ-45) Port | Yes |
| Power Consumption | 4 W |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 4.37 oz |
| Height | 4.7" |
| Width | 3.9" |
| Depth | 0.4" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 5 |
| General Information | |
| Brand Name | Brainboxes |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Industrial Compact 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more |
| Product Type | Ethernet Switch |
| Product Name | Industrial 5 Port PoE+ 10/100 Ethernet Switch |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-525 |
| Product Model | SW-525 |
| Media & Performance | |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards |
|
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
