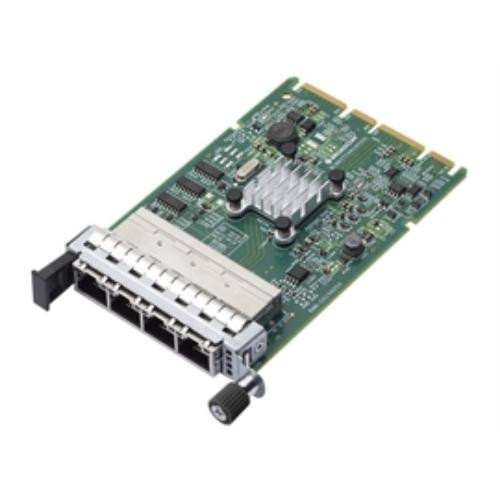

Broadcom 259274 Nt Bcm95719n1905c 10 100 1000base-t Pcie Ocp3.0 Smallform-factor Card

This item is brand-new, factory sealed.

Features

The BCM95719N1905C network interface card is RoHS-compliant.

Energy Efficient Ethernet-compliant with IEEE Std

802.3az-2010.

Quad-port 10/100/1000BASE-T Ethernet NIC.

x4 PCI Express v2.1 at 5 GT/s or 2.5 GT/s.

Hardware assist for IEEE 1588 and IEEE 802.1AS time synchronization implementations.

MSI and MSI-X capabilities up to 17 MSI-X vectors.

I/O Virtualization support for VMWare NetQueue and Microsoft VMQ:

17 receive queues and 16 transmit queues.

17 MSI-X vectors supporting per queue interrupt to host.

Function Level Reset (FLR).

ECC error detection and correction on internal SRAM.

Quad RJ-45 connectors with integrated link and activity LEDs.

RSS for multicore client processors.

TCP, UDP, and IP checksum offload.

Large Send Offload, TCP Segmentation Offload.

Wake-on-LAN (WOL) support that complies with ACPI requirements.

Network Controller Sideband Interface (NC-SI) over RMII Based Transport (RBT) physical interface.

FRU support.

Statistics for SNMP MIB II, Ethernet-like MIB, and Ethernet MIB (IEEE 802.3z, Clause 30).

Comprehensive diagnostic and configuration software suite.

Jumbo frame support with up to 9.6 KB packet size.

Conforms to the OCP 3.0 Design Specification Version 0.85.Quad-port Gigabit Ethernet x4 PCI Express OCP 3.0 Small-Form-Factor CardItem Dimension (L inchxW inchxH inch)
13 x 9 x 7

Weight
6.00 lb

Warranty Information
3 Years
