CLUB 3D B.V

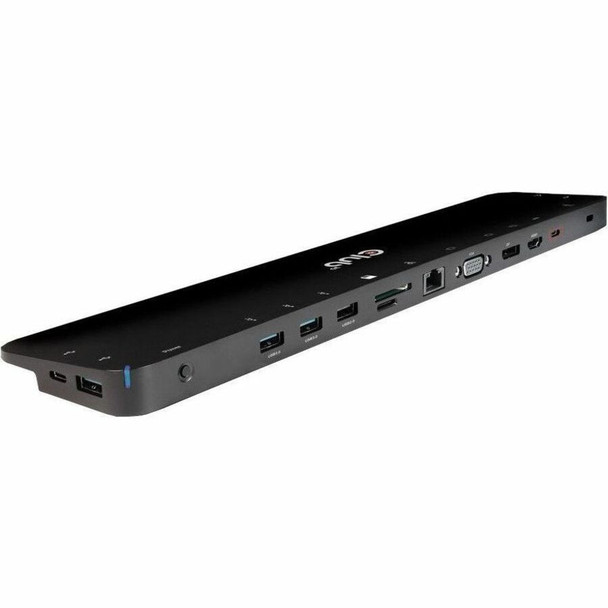

CLUB 3D B.V CSV-1581 Thuderbolt 4 Certified 11 In 1 Dock Dock 40gb/s Data 2x4k60hz + More
- SKU:
- 20041119
- MPN:
- csv-1581
- Availability:
- Out of stock
- Stock Update:
- 09/11/2024 11:52:40 AM PST
- Stock Update:
- 09/11/2024 11:52:40 AM PST
Description
This item is brand-new, factory sealed.
Thunderbolt 4 Club 3D 11-1 Certified Docking Station Dual 4K Video or Single 8K 30Hz 96W Power Delivery Dual USB Type A Gen 2 SD Card Reader CSV-1581- HIGH QUALITY: This docking station is Thunderbolt 4 certified and provides up to 40Gbps for data and video transfer. It allows you to connect one 8K30Hz or two 4K60Hz monitors, making it perfect for power users or creative professionals who need a versatile I/O solution.
- COMPATIBILITY: Designed for Thunderbolt 4-based PCs and Thunderbolt 3-based Macs utilizing MacOS 11 and later versions (ONLY M1 Pro- and Max Chip). Also supports Windows 10 or above with Thunderbolt 4.
- EFFICIENCY: Features a smart power function that enables it to distribute power according to the power consumption of the connected device, making full use of the external power supply. It is self-powered from the DC power adapter, with a maximum of 96W for the host and 140W for the host and Dock. Also comes with a Power Adapter 20V7.5A (150Watt).
- COMPACT DESIGN: The slim and sleek aluminum adds a touch of style to any desk set-up and makes it easy to take with you on the go or use in tight workspaces. It comes with a quick installation guide for an easy set-up
- VERSATILE CONNECTIVITY: This device has 1x Thunderbolt 4 USB Type-C port to connect to a host, and 3x Thunderbolt 4 ports that also work with Thunderbolt 3, USB4, DP Alt mode, and regular USB. It also has 2x USB Gen2 Type-A ports, 1x USB Gen1 Type-A port, 1x SD card slot that supports SD4.0, 1x TF card slot that supports SD3.0, 1x Ethernet RJ45 port, 1x 3.5mm audio jack, and 1x DC power jack.
- Product Dimensions: 7.48 x 3.15 x 0.87 inches
- Item Weight: 12.7 ounces
The Club 3D CSV-1581 is a Certified Thunderbolt 4 11-in-1 Docking Station which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Allowing you to connect one 8K30Hz or two 4K60Hz monitors. The dock supports the smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for Thunderbolt 4 based PCs and Thunderbolt 3 based Macs utilizing MacOS 11 and later versions(ONLY M1 Pro- and Max Chip).
Package Contents:
- Thunderbolt 4 Certified 11-in-1 Docking Station
- Power Adapter 20V7.5A (150Watt)
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
- Thunderbolt 4 Certified 11-in-1 Docking Station
- Power Adapter 20V7.5A (150Watt)
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Weight (Approximate) | 12.70 oz |
| Height | 7.48" |
| Width | 3.15" |
| Depth | 0.87" |
| Interfaces/Ports | |
| USB Power Delivery | 96W |
| Number of USB Type-A Ports | 3 |
| USB Type-C Detail | 1 x Thunderbolt™ 4 USB Type-C Male (to host) |
| Number of RJ-45 Ports | 1 |
| Number of USB Type-C Ports | 3 |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| Headphone/Microphone Combo Port | Yes |
| Network (RJ-45) | Yes |
| Host Interface | Thunderbolt 4 |
| USB Type-A | Yes |
| Thunderbolt | Yes |
| Number of Network (RJ-45) Ports | 1 |
| General Information | |
| Brand Name | Club 3D |
| Manufacturer Website Address | http://www.club-3d.nl |
| Marketing Information | The Club 3D CSV-1581 is a Certified Thunderbolt™ 4 11-in-1 Docking Station which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Allowing you to connect one 8K30Hz or two 4K60Hz monitors. The dock supports the smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs utilizing MacOS 11 and later versions(ONLY M1 Pro- and Max Chip). |
| Product Type | Docking Station |
| Product Name | Thunderbolt 4 Certified 11-in-1 Docking Station |
| Manufacturer | Club 3D |
| Manufacturer Part Number | CSV1581 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Software | |
| Operating System Supported |
|
| Technical Information | |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Screen Mode Supported |
|
| Maximum Data Transfer Rate | 5 GB/s |
| Management Features | Wake-on-LAN |
| Cable Length | 5.91 ft |
| Features | Power Delivery Pass-through |
| Supported Resolutions |
|
| Device Supported |
|
| Memory Card Reader | Yes |
| Memory Card Supported |
|
| Connectivity Technology | Wired |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
