Club 3D Multi Stream Transport[MST]Hub DisplayPort™ 1.4 to HDMI™ Dual Monitor 4K60Hz M/F (csv-7200h)

(No reviews yet) Write a Review
SKU:
18545107
MPN:
csv-7200h
Availability:
Usually ships the same or next business day. In stock at our TX warehouse.
Shipping:
Calculated at Checkout
Stock Update:
06/20/2026 09:13:27 PM PST
  • Main
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
$60.63
Buy more, get it as low as $

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 or above and pay only $55.30 each 55.3
Stock Update:
06/20/2026 09:13:27 PM PST
Frequently bought together:

Description

This item is brand-new, factory sealed.

Club 3D Dual 4K 60Hz HDMI Splitter( Dual Monitor hub) to 2-HDMI 2.0 4K 60Hz MST hub CSV-7200H
  • This dual monitor displayport MST hub enable you to connect 2 independent HDMI monitors to the DP 1.4 port on your windows device, making multi tasking easy.
  • Display Port hub with dual monitor support features 2 HDMI 4K 60Hz Ports for 32.4Gbps of video and audio bandwidth, Leverage the latest Displayport technology to connect up to 2 high resolution monitor
  • Display Port splitter supports Two HDMI 4K 60Hz ports, up to 3840*2160p @ 60Hz single or dual displays (Note when the source is DP1.4 and supports DSC1.2), 1x 3840*2160P/30HZ + 1x 1920*1080P/60HZ(DP1.2)
  • This MST hub requires USB bus power from a USB 3.0 port, USB 2.0 or earlier does not output enough power to drive this MST hub, Displayport MST, extend desktop to 2 displays via one adaper, increase efficiency.
  • Compatible with Displayport 1.4 MST graphics cards, Supports Windows PC with no driver installation required, Mac OS does not support MST function and will only mirror the displays, Backwards compatible with older displayport version but this limits the supported resolutions, Plug and Play - no driver needed, Supports transmission of audio and video signals

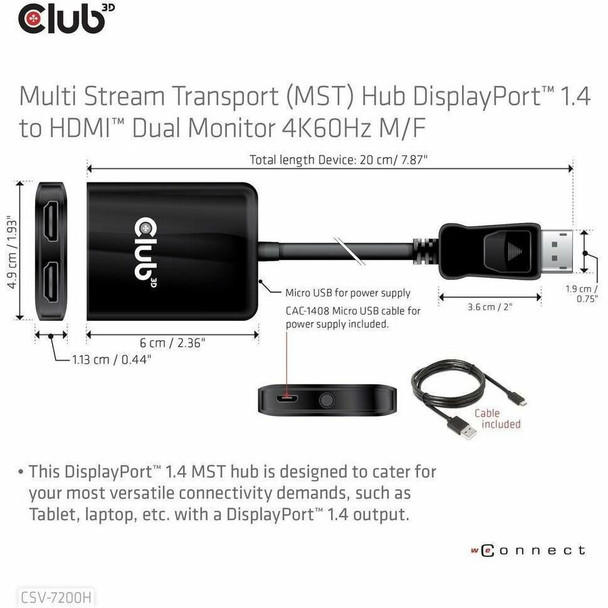

  • Product Dimensions: 7.87 x 1.93 x 0.44 inches
  • Item Weight: 4 ounces

The Club 3D CSV-7200H Multi Stream Transport(MST)Hub DisplayPort 1.4 to Dual HDMI 4K60Hz is an integrated solution that allow you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the users visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. Its the perfect solution for host devices which feature DP1.2 /1.4 graphic cards for gaming and commercial applications.



Package Contents:
  • CSV-7200H, MST-Hub DisplayPort 1.4 to HDMI Dual 4K60Hz
  • 1 x External Power Cable USB Type-A to Micro USB M/M

Features

Package Contents:
  • CSV-7200H, MST-Hub DisplayPort 1.4 to HDMI Dual 4K60Hz
  • 1 x External Power Cable USB Type-A to Micro USB M/M



Operating System Compatibility:
Windows 11



Device Supported:

Monitor
Audio/Video Device
Display
Graphics Card
TV
PC



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Specs

Physical Characteristics
Weight (Approximate)3.84 oz
Length7.9"
Product ColorBlack
Height0.4"
Color FamilyBlack
Width2.4"
Depth1.9"
Warranty
Limited Warranty24 Month
General Information
Brand NameClub 3D
Manufacturer Website Addresshttp://www.club-3d.nl
Marketing InformationThe Club 3D CSV-7200H Multi Stream Transport (MST) Hub DisplayPort™ 1.4 to Dual HDMI™ 4K60Hz is an integrated solution that allows you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying the same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user's visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It is the perfect solution for host devices that feature DP1.2 /1.4 graphic cards for gaming and commercial applications.
PackingBox
Product TypeA/V Adapter
Product NameMulti Stream Transport(MST)Hub DisplayPort™ 1.4 to HDMI™ Dual Monitor 4K60Hz M/F
ManufacturerClub 3D
Manufacturer Part NumberCSV-7200H
Packaged Quantity1
Technical Information
Connector Gender on First EndMale
Connector on Second End Details
  • 2 x 19-Pin HDMI 1.4 Type A Digital Audio/Video - Female
  • 1 x Micro USB Type B - Male
  • 1 x Micro USB - Female
Connector on First End Details
  • 1 x 20-Pin DisplayPort 1.4 Digital Audio/Video - Male
  • 1 x USB Type A - Male
Connector Type on First End
  • DisplayPort 1.4 Digital Audio/Video - Male
  • USB Type A - Male
Connector Type on Second End
  • HDMI 1.4 Type A Digital Audio/Video - Female
  • Micro USB Type B - Male
  • Micro USB - Female
Connector Gender on Second EndFemale
Features
  • Multi-Stream Transport (MST) Support
  • HDCP 1.4
  • HDCP 2.2
  • High Bit Rate 3 (HBR3)
  • High Bit Rate 2 (HBR2)
  • Display Stream Compression (DSC) 1.2
  • Plug and Play
Adapter TypeDisplayPort/HDMI
Maximum Resolution Supported3840 x 2160
