Comprehensive Cable CHE-HDBTWP120K Pro Av/it Hdmi Usb 2.0 Extenderperp Wall Plate Hdbaset Extender Kit
- SKU:
- 20816700
- MPN:
- che-hdbtwp120k
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/06/2026 12:14:49 AM PST
- Stock Update:
- 06/06/2026 12:14:49 AM PST
Description
This item is brand-new, factory sealed.
Extend 4K HDMI, Audio and USB 2.0 High Speed Signals over a Single UTP Cable up to 230ft
Comprehensive's CHE-HDBTWP121K Wall Plate Extender kit was designed to extend HDMI, analog audio and high speed USB 2.0 signals up to 230ft over Cat5e or Cat6 cables. Perfect for all commercial AV/IT installations that requires HDMI and USB 2.0 and audio inputs.
Supports 4K HD Video up to 4K@60Hz (4:4:4)
This versatile USB/HDMI extender can transmit 4K resolutions up to 4K@60Hz 4:4:4 up to 131ft and 1080P@60Hz up to 230ft, making it perfect for classrooms, meeting rooms, huddle spaces and other AV installations.
Supports Bi-directional POC (Power over Cable) Delivery
The CHE-HDBTWP121K includes 24V POC function support. Either the TX or RX can be powered by the included 24V/1A power adapter or Phoenix jack.
Dual USB 2.0 Ports
The two high speed USB 2.0 ports allow you to connect two USB devices and use them simultaneously.
Dedicated Analog Audio
The 3.5mm analog audio jack delivers audio independent from the HDMI signal for additional audio routing.
A Must Have Device for Every AV Space
Ideal for use in court rooms, classrooms, conference rooms and anywhere audio-visual devices can be extended from a remotely located HDMI source device.
Compatible with Promethean® Interactive Whiteboard
This USB extender supports and is fully compatible with the Promethean® Interactive Whiteboard.
Package Contents:

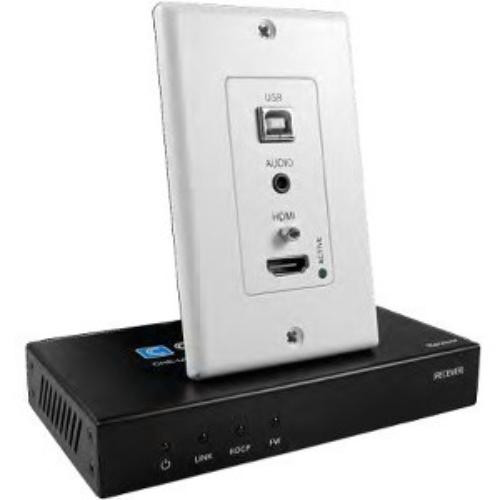

- 1 x Single Gang HDMI/USB Wall Plate Extender (white)
- 1 x HDMI/USB Receiver box (black)
- 1 x Vinyl Decora Plate With 2 Screws
- 2 x 3-pin Phoenix Connector
- 1 x 2-pin Phoenix Connector
- 1 x Mounting Ears With Mounting Screws DC 24V/1A Power Adapter
- 1 x USB 2.0 Type A Male To Type B Male Cable 3 Feet
- 1 x User Manual
Features
- 1 x Single Gang HDMI/USB Wall Plate Extender (white)
- 1 x HDMI/USB Receiver box (black)
- 1 x Vinyl Decora Plate With 2 Screws
- 2 x 3-pin Phoenix Connector
- 1 x 2-pin Phoenix Connector
- 1 x Mounting Ears With Mounting Screws DC 24V/1A Power Adapter
- 1 x USB 2.0 Type A Male To Type B Male Cable 3 Feet
- 1 x User Manual
Application/Usage:
Meeting Room
Conference Room
Classroom
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Physical Characteristics | |
| Form Factor | Wall Plate |
| Transmitter Weight (Approximate) | 5.75 oz |
| Receiver Width | 5.50" |
| Receiver Height | 9" |
| Product Color | White/Black |
| Receiver Depth | 2.90" |
| Transmitter Depth | 1.20" |
| Receiver Weight (Approximate) | 7.05 oz |
| Transmitter Height | 1.80" |
| Transmitter Width | 4" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Number of USB Ports | 3 |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| USB | Yes |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | Comprehensive |
| Manufacturer Website Address | http://www.comprehensiveco.com |
| Marketing Information | Extend 4K HDMI, Audio and USB 2.0 High Speed Signals over a Single UTP Cable up to 230ft Comprehensive's CHE-HDBTWP121K Wall Plate Extender kit was designed to extend HDMI, analog audio and high speed USB 2.0 signals up to 230ft over Cat5e or Cat6 cables. Perfect for all commercial AV/IT installations that requires HDMI and USB 2.0 and audio inputs. Supports 4K HD Video up to 4K@60Hz (4:4:4) This versatile USB/HDMI extender can transmit 4K resolutions up to 4K@60Hz 4:4:4 up to 131ft and 1080P@60Hz up to 230ft, making it perfect for classrooms, meeting rooms, huddle spaces and other AV installations. Supports Bi-directional POC (Power over Cable) Delivery The CHE-HDBTWP121K includes 24V POC function support. Either the TX or RX can be powered by the included 24V/1A power adapter or Phoenix jack. Dual USB 2.0 Ports The two high speed USB 2.0 ports allow you to connect two USB devices and use them simultaneously. Dedicated Analog Audio The 3.5mm analog audio jack delivers audio independent from the HDMI signal for additional audio routing. A Must Have Device for Every AV Space Ideal for use in court rooms, classrooms, conference rooms and anywhere audio-visual devices can be extended from a remotely located HDMI source device. Compatible with Promethean® Interactive Whiteboard This USB extender supports and is fully compatible with the Promethean® Interactive Whiteboard. |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | CHE-HDBTWP121K Video Extender Transmitter/Receiver |
| Manufacturer | Comprehensive Connectivity Company |
| Manufacturer Part Number | CHE-HDBTWP121K |
| Product Model | CHE-HDBTWP121K |
| Media & Performance | |
| Twisted Pair Cable Standard |
|
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 230 ft |
| Number of Input Devices Supported | 1 |
| HDBase-T | Yes |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
