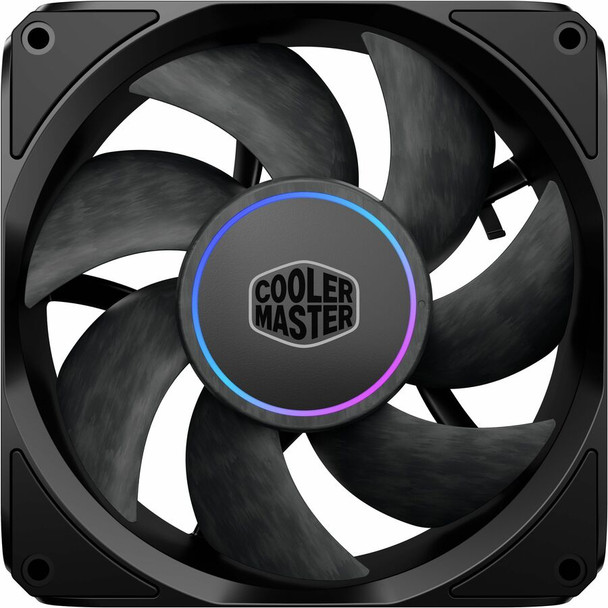

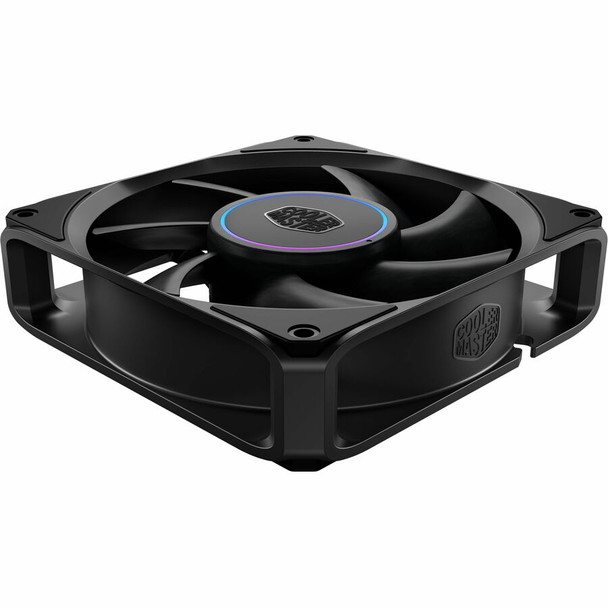

Cooler Master MasterFan M120 ARGB (mfz-p2dm-20np2-r1)
- SKU:
- 21655547
- MPN:
- mfz-p2dm-20np2-r1
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 08/27/2026 12:27:14 AM PST
- Stock Update:
- 08/27/2026 12:27:14 AM PST
Description
This item is brand-new, factory sealed.
MasterFan M120 offers a mainstream solution that doesn't compromise on quality or acoustics, delivering exceptional performance and quiet operation. It is engineered for unrivaled stability through advanced construction. The new Magnetic Dynamic Bearing (MDB) design allows the rotor to float, significantly reducing mechanical friction for a more stable and quieter operation and impressive longevity. High performance is maintained because the fan features a Liquid Crystal Polymer (LCP) blade, which increases blade stability and precision, ensuring consistent high airflow and durability. Paired with an all-aluminum fan frame, vibration is minimized, enhancing rigidity and overall operation. Additionally, an optimized fan blade design delivers high air pressure, making it a strong performer. Built for system builders and perfected for mainstream use, the MasterFan M120 isn't just a fan-it's the core of your quiet, reliable, and high-performing machine.
PREMIUM MATERIAL CONSTRUCTION
Featuring an all-aluminum fan frame for maximum rigidity and durability at high speeds and a Liquid Crystal Polymer (LCP) fan blade for enhanced stability and precision, delivering premium aesthetics and performance.
MAGNETIC DYNAMIC BEARING
This system uses a ring-shaped magnetic design to make the fan rotor float, eliminating friction and wobble for quieter operation and superior stability. The bearing is also enhanced with special channels that actively recycle the lubricant, maximizing oil flow and significantly extending the fan's lifespan.
INTEGRATED ARGB LIGHT
The ARGB lighting is subtly integrated in the center. This design provides a soft, constant glow, offering a clean, understated aesthetic that adds a refined touch of color to your system.
Features
Computer Case
Specs
| Power Description | |
| Maximum Power Consumption | 1.20 W |
| Rated Current | 100 mA |
| Physical Characteristics | |
| Product Material |
|
| Weight (Approximate) | 5.82 oz |
| Maximum Fan Diameter | 4.72" |
| Fan Width | 4.72" |
| Fan Height | 1.18" |
| Warranty | |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Connectors | 4-Pin PWM |
| Fan Information | |
| Pulse-width Modulation (PWM) Support | Yes |
| Fan Bearing Type | Magnetic Dynamic Bearing |
| LED Color | ARGB |
| Fan Mean Time to Failure (MTTF) | 2.3 Year |
| Maximum Airflow | 75.20 CFM |
| Maximum Air Pressure | 4.1mmH2O |
| Fan Speed (Max) | 2300 rpm |
| Noise Levels (A-Weighted) | 27 dB(A) |
| General Information | |
| Brand Name | Cooler Master |
| Manufacturer Website Address | http://www.coolermaster-usa.com |
| Marketing Information | MasterFan M120 offers a mainstream solution that doesn't compromise on quality or acoustics, delivering exceptional performance and quiet operation. It is engineered for unrivaled stability through advanced construction. The new Magnetic Dynamic Bearing (MDB) design allows the rotor to float, significantly reducing mechanical friction for a more stable and quieter operation and impressive longevity. High performance is maintained because the fan features a Liquid Crystal Polymer (LCP) blade, which increases blade stability and precision, ensuring consistent high airflow and durability. Paired with an all-aluminum fan frame, vibration is minimized, enhancing rigidity and overall operation. Additionally, an optimized fan blade design delivers high air pressure, making it a strong performer. Built for system builders and perfected for mainstream use, the MasterFan M120 isn't just a fan-it's the core of your quiet, reliable, and high-performing machine. PREMIUM MATERIAL CONSTRUCTION Featuring an all-aluminum fan frame for maximum rigidity and durability at high speeds and a Liquid Crystal Polymer (LCP) fan blade for enhanced stability and precision, delivering premium aesthetics and performance. MAGNETIC DYNAMIC BEARING This system uses a ring-shaped magnetic design to make the fan rotor float, eliminating friction and wobble for quieter operation and superior stability. The bearing is also enhanced with special channels that actively recycle the lubricant, maximizing oil flow and significantly extending the fan's lifespan. INTEGRATED ARGB LIGHT The ARGB lighting is subtly integrated in the center. This design provides a soft, constant glow, offering a clean, understated aesthetic that adds a refined touch of color to your system. |
| Product Type | Cooling Fan |
| Product Name | MasterFan M120 ARGB |
| Manufacturer | Cooler Master Co., Ltd |
| Manufacturer Part Number | MFZ-P2DM-20NP2-R1 |
| Product Model | M120 |
| Product Line | MasterFan |
