Cooler Master

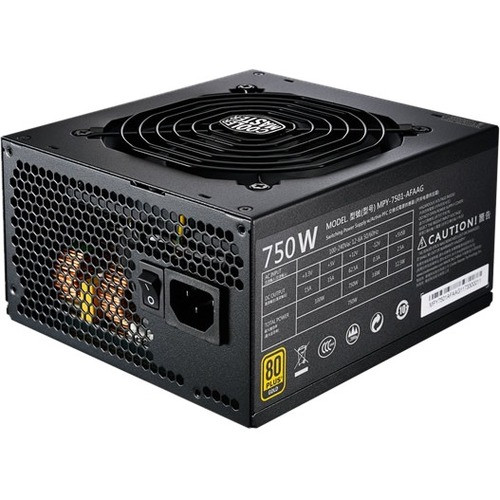

Cooler Master MWE Gold 750 Full Modular (mpy-7501-afaag-us)

(No reviews yet) Write a Review
SKU:
18012441
MPN:
mpy-7501-afaag-us
Availability:
Out of stock
Stock Update:
11/21/2023 03:20:05 PM PST
  • Main
  • Alternate-Image9
  • Alternate-Image8
  • Alternate-Image7
  • Alternate-Image6
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image10
  • Alternate-Image1

Out of stock

Stock Update:
11/21/2023 03:20:05 PM PST

Description

This item is brand-new, factory sealed.

MWE GOLD 750 FULLY MODULAR

Behold the 80 Plus Gold rated, fully modular MWE Gold. This power supply unit delivers consistent 90% efficiency, low temperatures, and quiet operation. High quality, heat resistant components have been used to achieve gold level performance at temperatures up to 45C. The Silencio fan and exclusive LDB bearing provides nearly silent cooling at no loss to system performance and a longer lifespan. Flat cables improve airflow by reducing cable bulk and a single +12V line ensures all components are fed the same stable output regardless of which cable you use. Be bold, power with gold.

80 PLUS GOLD CERTIFIED

This certification guarantees a typical efficiency of 90% under normal operating conditions.

FULLY MODULAR CABLES

Fully customizable cabling reduces clutter, increases airflow, and improves overall thermal performance.

ADVANCED CIRCUITRY

The MWE Gold's full-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs.

SEALED LDB FAN BEARING

The sealed LDB bearing has been combined with Silencio fan technology for quiet cooling with a longer lifespan.

PSU Calculator

Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.

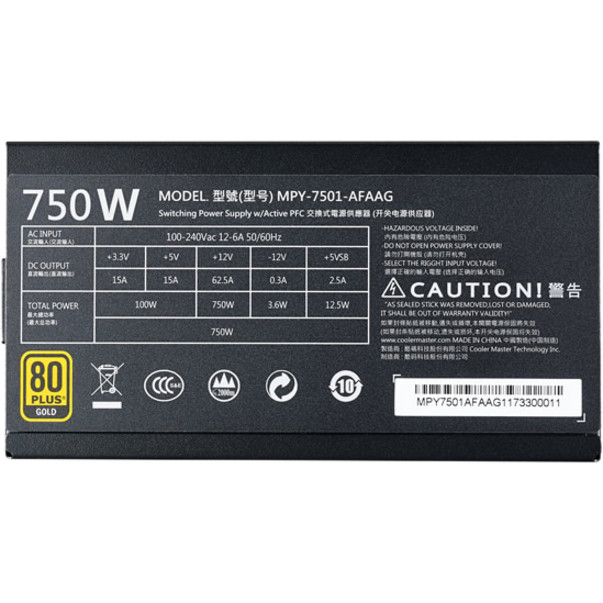

Product Name
MWE Gold 750 Full Modular Product Number
MPY-7501-AFAAG ATX Version
ATX 12V V2.31 PFC
Active PFC (>0.95 typical) Input Voltage
100-240V Input Current
12-6A Input Frequency
50/60Hz Fan Size
120mm Fan Bearing
LDB Powergood Signal
100-500ms Hold Up Time
>14 ms at 100% load Efficiency
90% Typically ErP 2013 Lot 6
Yes MTBF
>100,000 Hours Operating Temperature
0-45oC Protections
OVP / OPP / UVP / SCP / OTP Regulatory
CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB Connectors
MB 24 Pin
1
CPU 12V 4+4 Pin
1
SATA
8
Peripheral 4 Pin
6
FDD Cable 4 Pin
1
PCI-e 6+2 Pin
4
Item Dimension (L"xW"xH")
13 x 8 x 5
Weight
5.60 LB
Warranty Information
5 year

Features

Certifications & Standards:
  • cTUVus
  • TÜV SÜD

    •

    Environmentally Friendly:
    Yes



    Country of Origin:
    China



    Specs

    Power Description
    Number of +12V Rails1
    Output Power750 W
    Output Current
    • 15 A
    • 62.50 A
    • 300 mA
    • 2.50 A
    Input Voltage
    • 120 V AC
    • 230 V AC
    Output Voltage Detail
    • 3.3 V DC @ 15 A
    • 5 V DC @ 15 A
    • 12 V DC @ 62.5 A
    • 12 V DC @ 300 mA
    • 5 V @ 2.5 A
    Output Voltage
    • 3.3 V DC
    • 5 V DC
    • 12 V DC
    • 5 V
    Physical Characteristics
    Form FactorInternal
    Weight (Approximate)4.94 lb
    Height3.4"
    Width5.9"
    Depth6.3"
    Warranty
    Limited Warranty5 Year
    General Information
    Brand NameCooler Master
    Manufacturer Website Addresshttp://www.coolermaster-usa.com
    Marketing InformationBE BOLD,
    POWER WITH GOLD
    80 PLUS GOLD CERTIFIED
    135MM FDB FAN
    ADVANCED CIRCUITRY
    FULLY MODULAR CABLING
    5 YEARS WARRANTY
    MWE GOLD 750 FULLY MODULAR
    Behold the 80 Plus Gold rated, fully modular MWE Gold. This power supply unit delivers consistent 90% efficiency, low temperatures, and quiet operation. High quality, heat resistant components have been used to achieve gold level performance at temperatures up to 45°C. The Silencio fan and exclusive LDB bearings provide nearly silent cooling at no loss to system performance and a longer lifespan. Flat cables improve airflow by reducing cable bulk and a single +12V line ensures all components are fed the same, stable output regardless of which cable you use. Be bold, power with gold.
    80 PLUS GOLD CERTIFIED
    This certification guarantees a typical efficiency of 90% under normal operating conditions.
    FULLY MODULAR CABLES
    Fully customizable cabling reduces clutter, increases airflow, and improves overall thermal performance.
    ADVANCED CIRCUITRY
    The MWE Gold's fully-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs.
    5 YEARS WARRANTY
    This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
    SEALED LDB FAN BEARING
    The sealed LDB bearing has been combined with Silencio fan technology for quiet cooling
    with a longer lifespan.
    PSU Calculator
    Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.
    Product TypePower Supply
    Product NameMWE Gold 750 Full Modular
    ManufacturerCooler Master Co., Ltd
    Manufacturer Part NumberMPY7501AFAAGUS
    Product ModelMPY-7501-AFAAG
    Technical Information
    Specification ComplianceATX12V/EPS12V
    Efficiency90%
    Number of Fans1
    ModularYes
