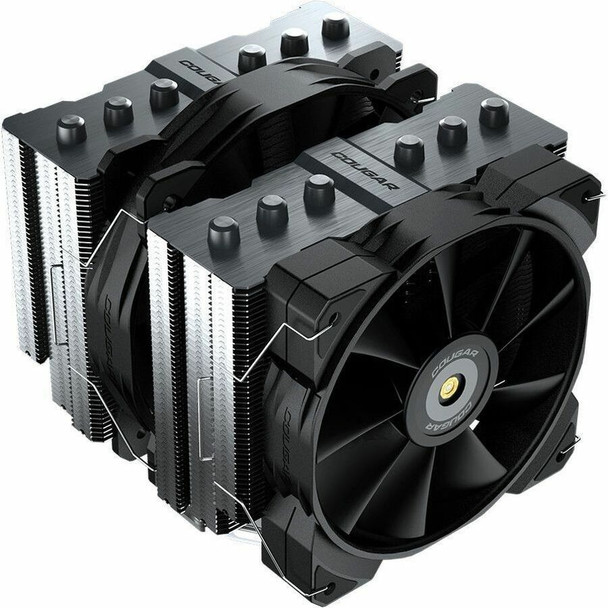

COUGAR Forza 135 CGR-FZA135 Cooling Fan/Heatsink (3mfz135-0001)
- SKU:
- 20088249
- MPN:
- 3mfz135-0001
- Availability:
- Out of stock
- Stock Update:
- 05/02/2025 06:05:04 AM PST
- Stock Update:
- 05/02/2025 06:05:04 AM PST
Description
This item is brand-new, factory sealed.
Strength Screams...but Power Whispers
For enthusiasts and gamers seeking to push their systems to the limit, the Forza 135 offers an exceptional balance of ultra-silent operation and powerful cooling as a dual tower air cooler for high-level CPUs. Its front cover is uniquely designed and it is equipped with COUGAR's high-performance fans, the MHP140-A and MHP120.

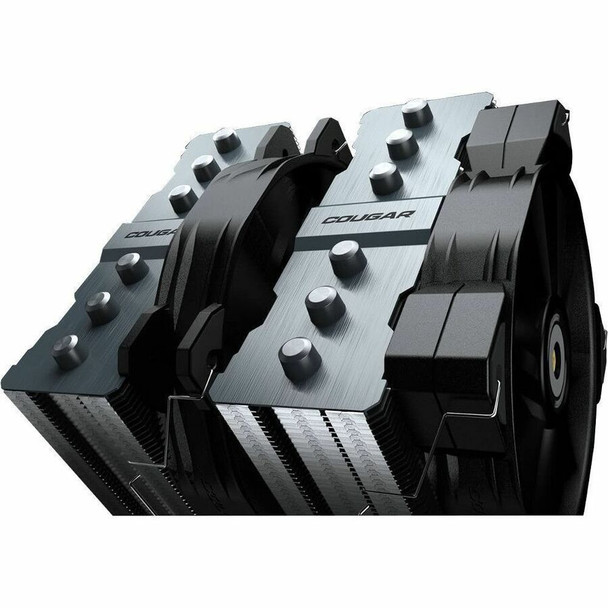

The Two Towers
Equipped with two high-performance fans, the MHP140-A and MHP120, the dual tower heatsink features two sets of heatsink towers for maximum cooling capacity. Its unique design boasts a wider cooling area, swiftly dissipating hot air to ensure the CPU operates at peak efficiency.
Not Just A Pretty Face
The Forza 135 air cooler is fitted with an elegant cap decoration which not only ornaments the design, but also prevents oxidation of the heat pipe.
Hyperdrive Cooling
Forza 135 is equipped with COUGAR MHP140-A and MHP120 high-performance fans. Both fans have durable metallic-reinforced motor hub & metal bearing shell design, providing high airflow & high static pressure to achieve an optimum balance between ultra-silent operation and extremely cooling. They are perfect partners for Forza 135 that deliver outstanding performance.
The Wind Tunnel Effect
For even greater heat dissipation efficiency, the Forza 135 features a unique 90-degree flip shape on both ends of the heatsink fins. This closed-space design creates an air tunnel that blocks airflow from the sides of the radiator, generating differing air pressure on each side of the Forza 135. This pressure differential significantly enhances airflow through the fins, maximizing cooling efficiency.
Lucky Number 7
In contrast to other air coolers, the Forza 135 boasts a greater number of heat pipes, ensuring optimal heat transfer. Its seven heat pipes, each with a 6mm diameter, are crafted using reflow soldering and feature a highly polished copper surface. These design features enhance the heat transfer mechanism, greatly improving conductance and cooling capability.
Freedom of Choice
The Forza 135 has undergone design verification and installation testing to ensure superior compatibility with components such as RAM and GPUs, including those on AM5 and LGA1700/LGA2011/2066 sockets, from most brands. Users can confidently choose their preferred components without any concerns about compatibility.
A Perfect Fit
The Forza 135 is an excellent choice for PC DIY enthusiasts, as it can be easily installed in most multi-functional mid-tower chassis that support ATX/E-ATX motherboards with a height restriction of up to 160mm.
Third's the Charm
The Forza 135 is supplied with an additional set of fan clips, enabling users to install a third fan from any brand for increased heat dissipation efficiency. Why settle for less when you can have more?
User-friendly Installation
For improved installation convenience, the Forza 135 includes an INTEL/AMD bracket set that can be easily installed in just a few simple steps. Additionally, a screwdriver is included in the package for direct use by users without any prerequisites.
Package Contents:
- Forza 135 CGR-FZA135 Cooling Fan/Heatsink
- INTEL/AMD Bracket Set
- Screwdriver
Features
- Forza 135 CGR-FZA135 Cooling Fan/Heatsink
- INTEL/AMD Bracket Set
- Screwdriver
Application/Usage:
Processor
Motherboard
Chassis
CPU
Specs
| Power Description | |
| Rated Current | 230 mA |
| Physical Characteristics | |
| Heatsink Depth | 5.51" |
| Weight (Approximate) | 3.07 lb |
| Maximum Fan Diameter | 5.51" |
| Heatsink Height | 6.30" |
| Heatsink Material | Nickel Plated Copper |
| Fan Width | 5.51" |
| Fan Depth | 5.51" |
| Heatsink Width | 5.04" |
| Fan Height | 0.98" |
| Interfaces/Ports | |
| Connectors | 4 Pin PWM |
| Fan Information | |
| Fan Speed (Min) | 600 rpm |
| Number of Fans | 2 |
| Fan Bearing Type | Hydro Dynamic Bearing |
| Maximum Airflow | 82.48 CFM |
| Maximum Air Pressure | 4.24mmH2O |
| Fan Speed (Max) | 2000 rpm |
| Noise Levels (A-Weighted) | 38.5 dB(A) |
| General Information | |
| Brand Name | COUGAR |
| Manufacturer Website Address | http://www.cougargaming.com |
| Marketing Information | Strength Screams...but Power Whispers For enthusiasts and gamers seeking to push their systems to the limit, the Forza 135 offers an exceptional balance of ultra-silent operation and powerful cooling as a dual tower air cooler for high-level CPUs. Its front cover is uniquely designed and it is equipped with COUGAR's high-performance fans, the MHP140-A and MHP120. The Two Towers Equipped with two high-performance fans, the MHP140-A and MHP120, the dual tower heatsink features two sets of heatsink towers for maximum cooling capacity. Its unique design boasts a wider cooling area, swiftly dissipating hot air to ensure the CPU operates at peak efficiency. Not Just A Pretty Face The Forza 135 air cooler is fitted with an elegant cap decoration which not only ornaments the design, but also prevents oxidation of the heat pipe. Hyperdrive Cooling Forza 135 is equipped with COUGAR MHP140-A and MHP120 high-performance fans. Both fans have durable metallic-reinforced motor hub & metal bearing shell design, providing high airflow & high static pressure to achieve an optimum balance between ultra-silent operation and extremely cooling. They are perfect partners for Forza 135 that deliver outstanding performance. The Wind Tunnel Effect For even greater heat dissipation efficiency, the Forza 135 features a unique 90-degree flip shape on both ends of the heatsink fins. This closed-space design creates an air tunnel that blocks airflow from the sides of the radiator, generating differing air pressure on each side of the Forza 135. This pressure differential significantly enhances airflow through the fins, maximizing cooling efficiency. Lucky Number 7 In contrast to other air coolers, the Forza 135 boasts a greater number of heat pipes, ensuring optimal heat transfer. Its seven heat pipes, each with a 6mm diameter, are crafted using reflow soldering and feature a highly polished copper surface. These design features enhance the heat transfer mechanism, greatly improving conductance and cooling capability. Freedom of Choice The Forza 135 has undergone design verification and installation testing to ensure superior compatibility with components such as RAM and GPUs, including those on AM5 and LGA1700/LGA2011/2066 sockets, from most brands. Users can confidently choose their preferred components without any concerns about compatibility. A Perfect Fit The Forza 135 is an excellent choice for PC DIY enthusiasts, as it can be easily installed in most multi-functional mid-tower chassis that support ATX/E-ATX motherboards with a height restriction of up to 160mm. Third's the Charm The Forza 135 is supplied with an additional set of fan clips, enabling users to install a third fan from any brand for increased heat dissipation efficiency. Why settle for less when you can have more? User-friendly Installation For improved installation convenience, the Forza 135 includes an INTEL/AMD bracket set that can be easily installed in just a few simple steps. Additionally, a screwdriver is included in the package for direct use by users without any prerequisites. |
| Product Type | Cooling Fan/Heatsink |
| Product Name | Forza 135 CGR-FZA135 Cooling Fan/Heatsink |
| Manufacturer | COMPUCASE ENTERPRISE CO., LTD |
| Manufacturer Part Number | 3MFZ1350001 |
| Product Model | CGR-FZA135 |
| Product Line | Forza 135 |
| Heatsink Information | |
| Compatible Intel Socket |
|
| Compatible AMD Socket |
|
