Cudy M3000 Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax Ethernet Wireless Router (296214)

This item is brand-new, factory sealed.

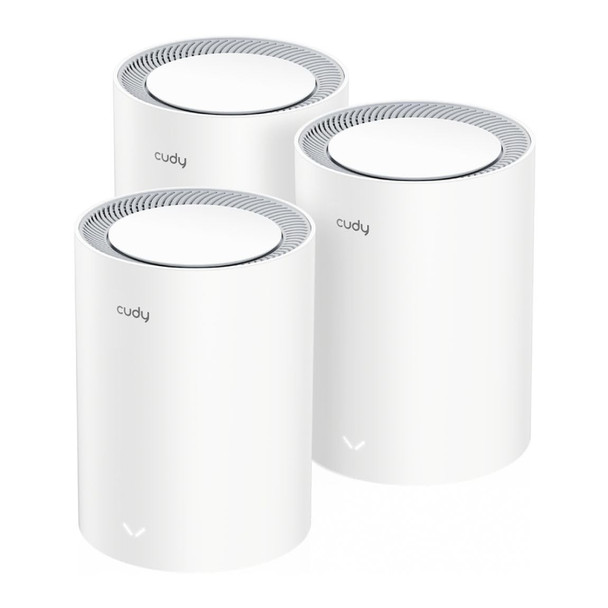

X3000 2.5G Mesh Wi-Fi 6 System White
M3000 2.0
3-Pack
A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands. Suitable for internet access up to 2.5 Gbps.
1.3 GHz Dual-Core CPU
4-Stream Dual-Band Wi-Fi 6
2402 Mbps + 574 Mbps Wi-Fi 1
200 Connected Devices 2
Fast Roaming
Cudy Mesh, VPN Server and Client
Multi-Band Simultaneous Backhaul
Cudy App, Cloud Control
1 Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
2 Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.Model Version
M3000 2.0CPU
CPU Details
1.3 GHz Dual-Core, ARM Cortex-A53Memory/Storage
Flash/ROM
128 MB (1 Gbit) NAND
DDR/RAM
256 MB (2 Gbit) DDR3Wireless
5 GHz Wi-Fi Speed
2402 Mbps
2.4 GHz Wi-Fi Speed
574 Mbps
5 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
Wi-Fi Antennas
5x Internal
FEM or PA/LNA
5 GHz: 3x Internal
2.4 GHz: 2x Internal
Beamforming
True
Range Performance
Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4)
One concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)
Indoor Coverage Reference
2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.Interfaces
2.5G RJ45 Ports
1
Gigabit RJ45 Ports
1
Ethernet Notes
The 2.5G port is the WAN port, the Gigabit port is LAN port
LED
System
Speed/Link/ACT of Ethernet Port
Physical Buttons
WPS Button
Reset Button
Power Input
DC JackPower
Power Methods
DC
DC Input
12V 1A
Power Adapter
Input: 100 - 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W)
11.5W
Idle Power Consumption (W)
4.2WReliability
Environment
Operating Temperature: 0 ^oC - 40 ^oC (32 ^oF -104 ^oF)
Storage Temperature: -40 ^oC - 70 ^oC (-40 ^oF - 158 ^oF)
Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 95% non-condensingCertifications
FCC, CEMechanical
Installation
DesktopPackage Content
M3000
Power Adapter
Ethernet Cable
Installation GuideItem Dimension (L"xW"xH")
13 x 11 x 6

Weight
7 lbs

Warranty Information
2 years

Package Contents:

• AX3000 2.5G Mesh Wi-Fi 6 System
• Power Adapter
• Ethernet Cable
• Installation Guide
