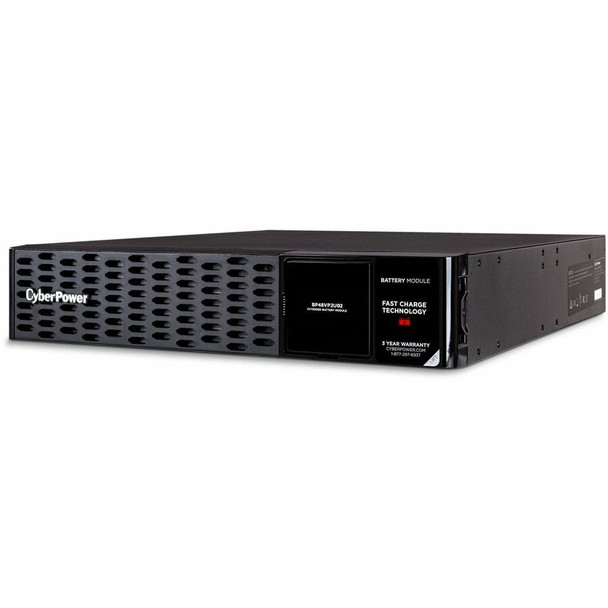

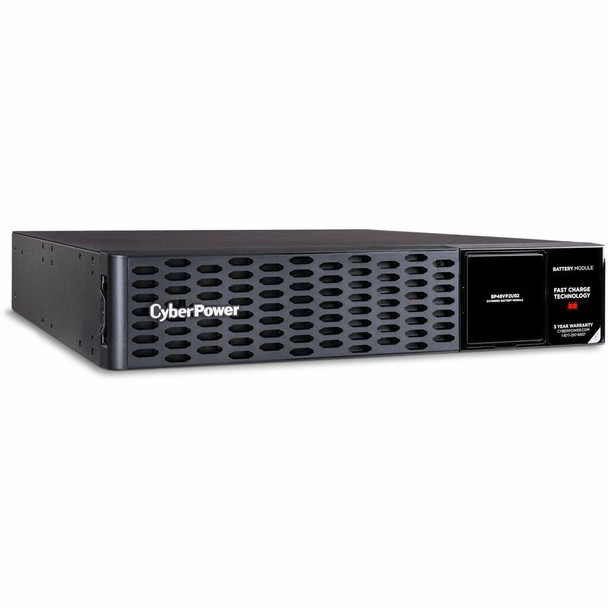

CyberPower BP48VP2U02TAA TAA Extended Battery Module
(No reviews yet)
Write a Review
- SKU:
- 18258589
- MPN:
- bp48vp2u02taa
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 09/21/2026 12:04:45 AM PST
- Stock Update:
- 09/21/2026 12:04:45 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
CyberPower BP48VP2U02TAA Extended Battery Module, 48V/70A, 2U Rack/Tower, TAA Certfified- The CyberPower BP48VP2U02TAA Extended Battery Module (EBM), extends battery runtimes during power outages for select CyberPower UPS systems
- BATTERY EQUALIZATION TECHNOLOGY (BET): An advanced charging process that maintains the voltages of the batteries at the same level to increase battery life
- CONVERTIBLE FORM FACTOR: 2U Rack/Tower allows for horizontal rack or vertical tower installation. Compatible with the following Smart App Sinewave UPS systems: PR1500RTXL2UTAA, PR2000RTXL2UTAA, PR3000RTXL2UTAA
- FAST CHARGE TECHNOLOGY: Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each EBM. Recharge time: 6 hours
- 3 YEAR WARRANTY INCLUDING BATTERIES, Complies with the U.S. Trade Agreement Act (TAA)
- Package Dimensions: 24.25 x 22 x 10.5 inches
- Item Weight: 76.1 pounds
The CyberPower BP48VP2U02TAA is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following Smart App Sinewave UPS systems: PR1500RTXL2UTAA, PR2000RTXL2UTAA, PR3000RTXL2UTAA. This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple. With a three-year lifetime limited warranty, you can trust CyberPowers commitment to the quality of the BP48VP2U02TAA.
Features
Certifications & Standards:
Yes
Amperage : 70 A DC Voltage : 48 VDC Battery Quantity : 8 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4J Replacement Battery Cartridge Quantity : 2 Typical Recharge Time : 6 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm) Weight (kg) : 30.03 Weight (lb) : 66.2 Shipping Dimensions - (WxHxD) (cm) : 55.88 x 26.67 x 61.6 (cm) Shipping - Dimensions (WxHxD, in) : 22.0 x 10.5 x 24.25 (in) Shipping - Dimensions (WxHxD, mm) : 558.8 x 266.7 x 615.95 (mm) Shipping - Weight (kg) : 34.61 Shipping - Weight (lb) : 76.3 Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : IEC-320 C14 Input Voltage Range : 100 VAC - 240 VAC USB Charge Port : No Color : Black Material of Construction : Metal Rack Height : 2U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : CE|RCM|UL1778|cUL|FCC Class B|VCCI Extended Warranty Option : WEXT5YR-BP1 Product Warranty : 3 Year Limited Warranty
Yes
CyberPower UPS Systems:
Restriction of Hazardous Substances (RoHS)
Taiwan
- CE
- RCM
- UL1778
- cUL
- FCC Class B
- VCCI
TAA Compliant:
Yes
Additional Information:
Environmentally Friendly:
Yes
Compatibility:
CyberPower UPS Systems:
- PR1000LCDRTXL2UA
- PR1500LCDRTXL2U
- PR1500RTXL2U
- PR2000RTXL2U
- PR2200LCDRTXL2U
- PR2200RTXL2U
- PR3000LCDRTXL2U
- PR3000RTXL2U
- OR1500LCDRTXL2U
- OR2200LCDRTXL2U
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 66.20 lb |
| Product Color | Black |
| Height | 3.4" |
| Color Family | Black |
| Width | 17.1" |
| Rack Height | 2U |
| Depth | 19.7" |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Marketing Information | The CyberPower BP48VP2U02TAA is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following Smart App Sinewave UPS systems: PR1500RTXL2UTAA, PR2000RTXL2UTAA, PR3000RTXL2UTAA. This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple. With a three-year lifetime limited warranty, you can trust CyberPower's commitment to the quality of the BP48VP2U02TAA. |
| Product Type | UPS Battery Pack |
| Product Name | BP48VP2U02TAA Extended Battery Module |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | BP48VP2U02TAA |
| Product Model | BP48VP2U02TAA |
| Product Series | TAA Compliant UPS & Hardware |
| Technical Information | |
| Maximum Battery Recharge Time | 6 Hour |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Output Voltage | 48 V DC |
| Battery Characteristics | User Replaceable |
