Description
This item is brand-new, factory sealed.

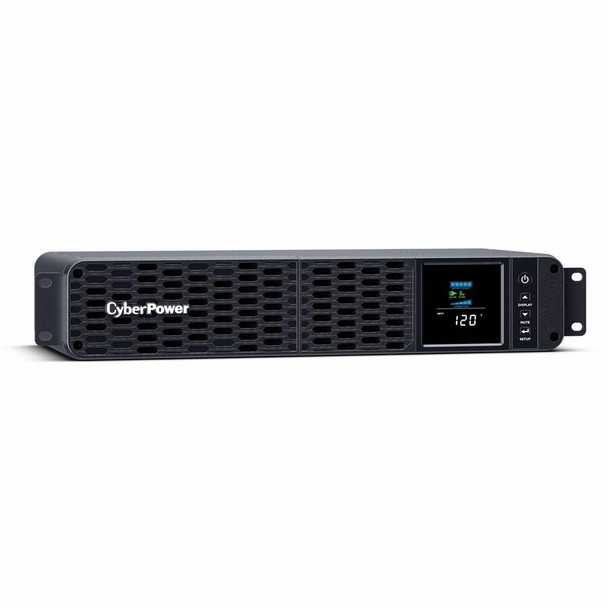

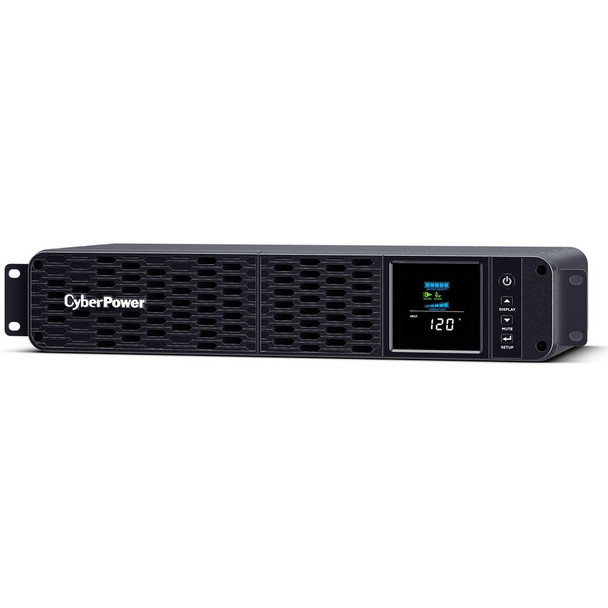

CyberPower CP1500PFCRM2U PFC Sinewave UPS System, 1500VA/1000W, 8 Outlets, AVR, Short Depth 2U Rackmount- 1500VA/1000W PFC Sine Wave Battery Backup Uninterruptible Power Supply (UPS) System designed to support active PFC and conventional power supplies; Safeguards security systems, audio/visual equipment, and networking devices
- EIGHT NEMA 5-15R OUTLETS: Provide battery backup & surge protection for connected devices; INPUT: NEMA 5-15P right angle, 45 degree offset plug with six foot power cord
- MULTIFUNCTION, COLOR LCD PANEL: Displays immediate, detailed information on battery and power conditions; Color display alerts users to potential issues before they can affect critical equipment and cause downtime

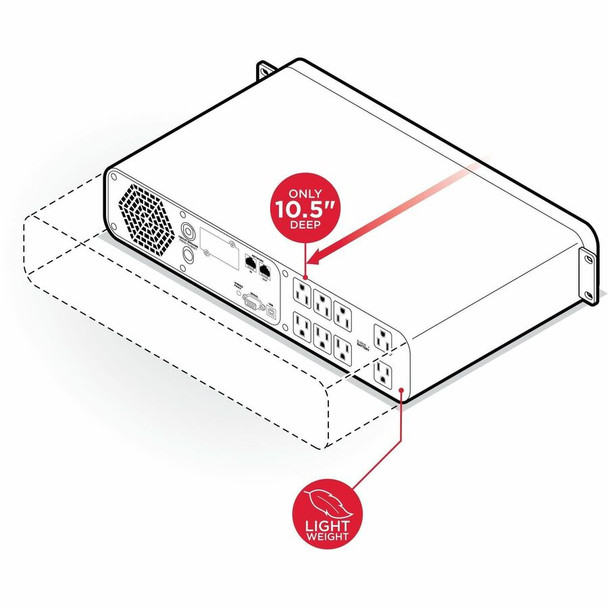

- SHORT-DEPTH RACKMOUNT: 10.5 inches in depth, the UPS fits comfortably in short-depth rack installations where space is at a premium; AUTOMATIC VOLTAGE REGULATION: Corrects minor power fluctuations without switching to battery power, extending battery life
- 3-YEAR WARRANTY INCLUDING THE BATTERY; $500,000 Connected Equipment Guarantee and FREE PowerPanel Management Software (Download)
- Package Dimensions: 20.6 x 14.7 x 6.4 inches
- Item Weight: 29.6 pounds
The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility. The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.
Features
Certifications & Standards:
UL1778
Active PFC Compatible : Yes Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1290X2D Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 3.1 min Runtime at Half Load : 10.2 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.64 x 26.67 (cm) Physical Dimensions - (WxHxD) (in) : 17 x 3.4 x 10.5 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 86 x 267 (mm) Weight (kg) : 12.16 Weight (lb) : 26.8 Shipping Dimensions - (WxHxD) (cm) : 37.34 x 16.26 x 52.32 (cm) Shipping - Dimensions (WxHxD, in) : 14.7 x 6.4 x 20.6 (in) Shipping - Dimensions (WxHxD, mm) : 373.38 x 162.56 x 523.24 (mm) Shipping - Weight (kg) : 13.43 Shipping - Weight (lb) : 29.6 Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 88 VAC - 144 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlets - Widely Spaced : 2 Outlet Type COMPUTED : 8 - NEMA 5-15R Output Power Factor : 0.7 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms Under/Over-Voltage Correction : +11% VA : 1500 VA Watts : 1000 W EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Wiring Fault Management Cable : USB Cable Serial Port : 1 Dry Contact SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rackmount Material of Construction : Plastic Rack Height : 2U AC Mode Thermal Dissipation : 26.3 BTU/hr Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $500000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U2A Product Warranty : 3 Year Limited Warranty
Yes
Yes
Restriction of Hazardous Substances (RoHS)
China
UL1778
Additional Information:
Environmentally Friendly:
Yes
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Load Capacity (Watt) | 1000 W |
| Input Frequency |
|
| Output Power Factor | 0.7 |
| Surge Energy Rating | 1500 J |
| Input Voltage Range | 88 VAC - 144 VAC |
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 1500 VA |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 26.81 lb |
| Product Color | Black |
| Height | 3.4" |
| Color Family | Black |
| Width | 17" |
| Depth | 10.5" |
| Rack Height | 2U |
| Warranty | |
| Directly Connected Equipment Guarantee | $500000 Lifetime |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <p>Multifunction LCD</p> |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Number of Batteries | 2 |
| Battery Capacity | 9000 mAh |
| DC System Voltage | 12 V DC |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 10.20 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Battery Characteristics | Sealed |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility. The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium. The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee. |
| Product Type | Line-interactive UPS |
| Product Name | CP1500PFCRM2U PFC Sinewave UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | CP1500PFCRM2U |
| Product Model | CP1500PFCRM2U |
| Product Series | PFC Sinewave UPS |
| Product Line | PFC Sinewave |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft |
| Dataline Protection | RJ-45 |
| EMI/RFI Noise Filter | Yes |
| Application/Usage |
|
| Number of Battery & Surge Outlets | 8 |
| Transfer Time | 4 ms |
| AVR | Yes |
| Management | |
| Network Management |
|
| Alarm |
|
| Environmental Conditions | |
| Thermal Dissipation | 7.71 W |
| Maximum Storage Elevation | 50000 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
